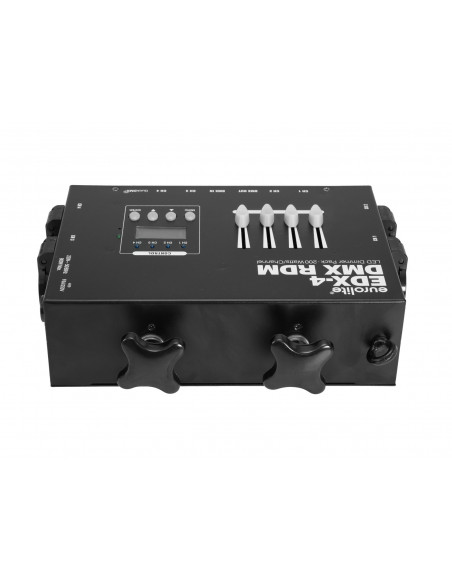

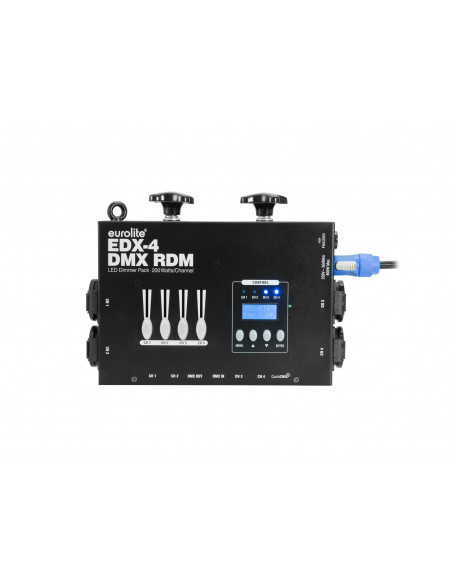

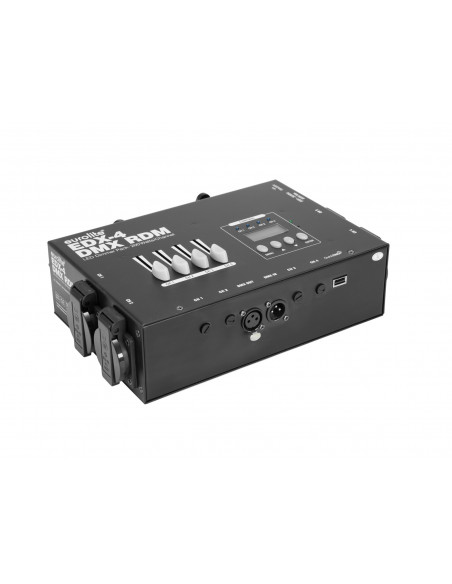

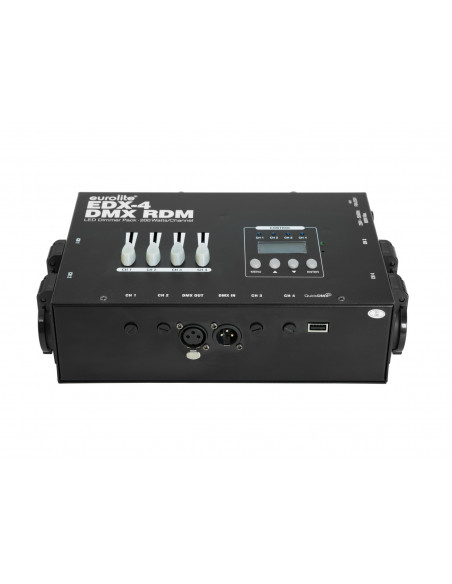

4-channel dimmer for LED lights with 230 V operation
- Trailing edge dimmer with 4 channels
- Max. channel load 200 watts
- DMX, automatic and music mode
- Independent DMX addressing per channel possible
- QuickDMX connector for wireless DMX connection
- 16 integrated chaser programs with adjustable speed
- Dimmer or switch operation
- 4 channel faders for control on the device
- Control panel with LC display for easy configuration
- LED status indication for each output channel
- 2 x M10 flying point
- Power input and output for easy power linking
- Can be operated in 1; 4; 6 CH mode
- Controlling by RDM; stand-alone; Sound to light via Microphone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Power supply: | 230 V AC, 50 Hz |
Output power: | Max. 200 W per channal Max. 800 W |
Power connection: | Mains input P-Con (blue), mounting version power supply cord with safety plug |
Power output: | 4 x Safety contact (F), hinged lid mounting version 1 x PowerCON (gray), mounting version Bypass |
DMX channels: | 1; 4; 6 |
DMX input: | 3-pin XLR (M) |
DMX output: | 3-pin XLR (F) |
Control: | RDM; stand-alone; Sound to light via Microphone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
Control channels: | 4 |
Flying points: | 2 x M10 thread |
Display type: | LCD display |
Color: | Black |
Dimensions: | Width: 21 cm Depth: 29 cm Height: 9 cm |
Weight: | 2,65 kg |
