Bar with 2 derbies, 2 spots, white strobe LEDs, laser (RG, 2M), foot switch
- 4in1 DMX light effect bar with laser, 2 rotating LED derbies, 2 LED spots and white strobe LEDs
- Laser class 2M: does not require additional protective measures or appointment of a laser safety officer
- Ultra-light ideally suited for mobile use at weddings/galas
- Crossbar with integrated DMX control unit and stand sleeve
- Comes pre-assembled with practical transport bag

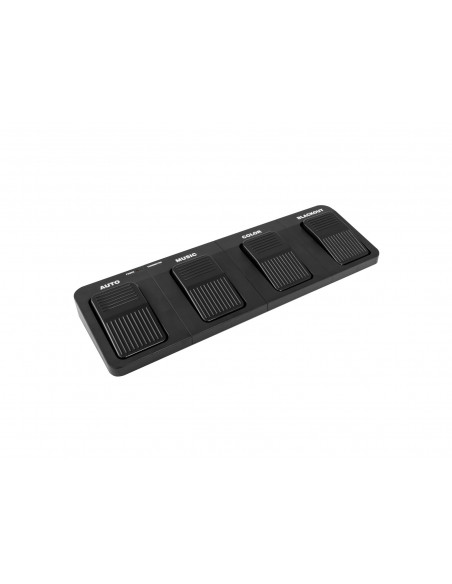

- Convenient control via wireless foot switch and IR remote control
- Two laser diodes project hundreds of red and green laser beams
- Two rotating derbies for mirror ball effects with three bright LEDs (red, green and blue) each
- Two spots with three bright RGB LEDs (3in1) each
- Four white strobe LEDs
- 37 built-in auto and music show programs that include all four effect units
- Addressing and setting via control panel with 4-digit LED display
- LED derbies and LED spots individually adjustable and interchangeable

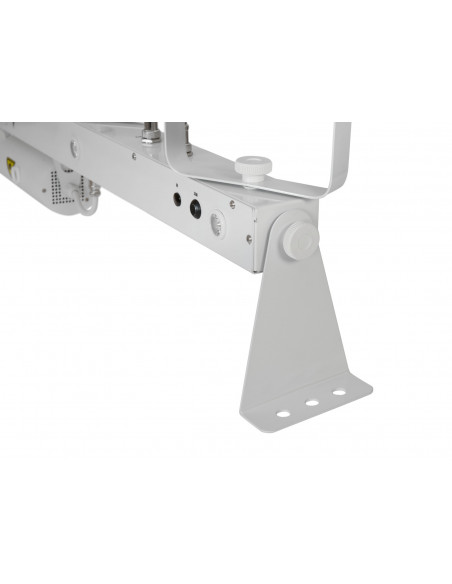

- Swivel mounting brackets for truss mounting
- When fog is used, this effect becomes especially attractive
- Supports QuickDMX - the wireless DMX system from Eurolite
- Built-in phantom-powered socket for QuickDMX receivers (optional)
- IEC terminals for power linking up to 8 units
- Can be operated in 3; 5; 9; 19; 27 CH mode
- The device is cooled by cooling fan
- Controlling by Wireless footswitch (provided); IR remote control (provided); DMX; Master/slave function; Sound to light via Microphone; W-DMX by wireless solution via USB (optional); QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional)
- Preprogrammed in Light´J; EASY SHOW; LED PC-Control 512
- Effect: Multi beam effect; Strobe effect; laser
- For application areas such as: Wedding/gala
spotlight
- LED: Spot 2 x separate controlling each with 3 x high-power 3 W 3in1 TCL RGB (homogenous color mix)
light effect
- LED: Multi beam effect 3 x high-power 1 W R/G/B
bar
- LED: Strobe effect 4 x high-power 1 W cold white (CW)
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 50 W |
| IP classification: | IP20 |
| Protection class: | Class I |
| Power connection: | Mains input IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Power output: | 1 x IEC connector (F) mounting version |
| Fuse: | 5 x 20 mm, F 1 A Fuse replaceable |
| Lamp type: | LED lamp |
| Flash rate: | 0 - 30 Hz |
| DMX channels: | 3; 5; 9; 19; 27 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | Wireless footswitch (provided); IR remote control (provided); DMX; Master/slave function; Light´J; EASY SHOW; LED PC-Control 512; Sound to light via Microphone; W-DMX by wireless solution via USB (optional); QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional) |
| Housing color: | White |
| Dimensions: | Width: 1,03 m
Depth: 6,1 cm
Height: 38,7 cm |
| Weight: | 9,05 kg |
| Noise classification: | Class 2 (slight noise) |
| Laser |
| Laser class: | Class 2M |
| Laser color: | R/G |
| Laser module: | Red (R) 100 mW 650nm
Green (G) 30 mW 532nm |
| Spotlight |
| LED: | Spot 3 x high-power 3 W 3in1 TCL RGB (homogenous color mix) |
| Light effect |
| LED: | Multi beam effect 3 x high-power 1 W R/G/B |
| Bar |
| LED: | Strobe effect 4 x high-power 1 W cold white (CW) |
| Foot control |
| Battery: | 1 x 9.0 V E block 6LR61 alkaline manganese (provided) |
| Remote control |
| Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
