Bar with powerful spots, UV strobe LEDs, laser (RG, 2M), QuickDMX port and carrying bag

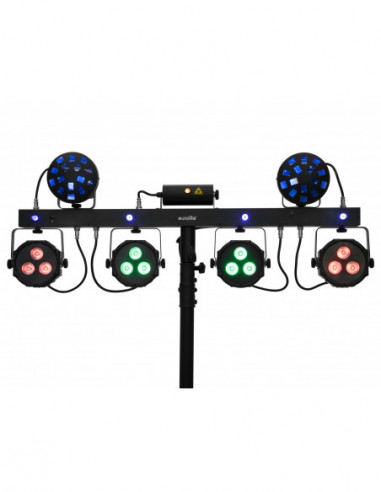

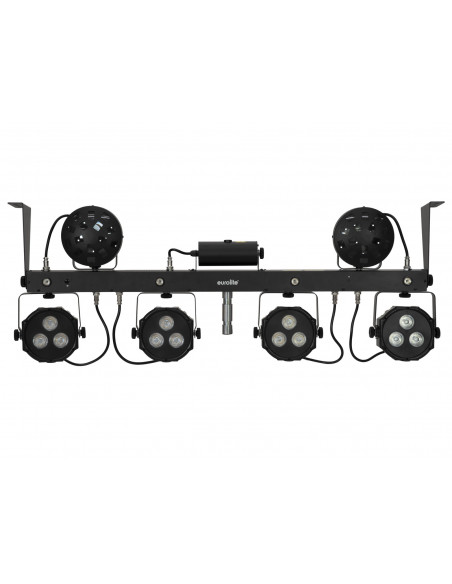

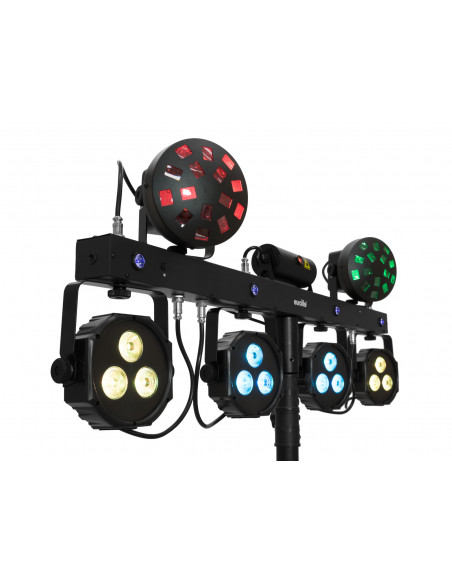

- DMX light effect bar with laser, 2 rotating LED mushrooms, 4 LED spots and UV strobe LEDs
- 2 laser diodes project hundreds of red and green laser beams
- 2 rotating mushrooms with four bright LEDs (red, green, blue and warm white) each
- 4 spots with four high-power RGB/WW LEDs (4in1) each
- 4 UV strobe LEDs
- Laser class 2M: does not require additional protective measures or appointment of a laser safety officer
- Ultra-light, ideally suited for mobile use
- Crossbar with integrated DMX control unit and TV spigot for tripod installation
- Swivel mounting brackets
- Comes pre-assembled with practical transport bag
- Convenient control via included IR remote control or optional wireless foot switch
- LED mushrooms and LED spots individually tiltable and controllable
- Spots with 7° beam angle
- Auto, music, master/slave and DMX mode
- Brand-new software design with smart programs
- 26 built-in auto and music show programs that include all 4 effect units
- Control panel with LED display for easy configuration
- Brightness adjustable via rotary dial
- Supports QuickDMX - the wireless DMX system from Eurolite
- Built-in phantom-powered USB port for QuickDMX, CRMX and WDMX receivers (optional)
- When fog is used, this effect becomes especially attractive
- Mains input and output for power linking up to 8 units
- LED: Spot 3 x high-power 4 W 4in1 QCL RGB/WW (homogenous color mix)
- LED: Multi beam effect 4 x high-power 3 W R/G/B/WW
- LED: Strobe effect 4 x high-power 1,5 W ultra violet (UV)
- Can be operated in 6; 8; 11; 21; 25; 29 CH mode
- The device is cooled by cooling fan
- Controlling by QuickDMX via USB (optional); DMX; stand-alone; Sound to light via Microphone; IR remote control; Wireless footswitch (optional)
- Effect: Laser; UV effect; multi beam effect
- For application areas such as: Wedding/gala
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 90 W |
| IP classification: | IP20 |
| Protection class: | Class I |
| Power connection: | Mains input P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Cable construction: | 3 x 1,0 mm² H05VV-F |
| Cable length: | 3 m |
| Power output: | 1 x P-Con (gray), mounting version |
| Fuse: | T 1 A Fuse replaceable |
| Lamp type: | LED lamp |
| LED: | Spot 3 x high-power 4 W 4in1 QCL RGB/WW (homogenous color mix)
Multi beam effect 4 x high-power 3 W R/G/B/WW
Strobe effect 4 x high-power 1,5 W ultra violet (UV) |
| Flash rate: | 0 - 30 Hz |
| DMX channels: | 6; 8; 11; 21; 25; 29 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | QuickDMX via USB (optional); DMX; stand-alone; Sound to light via Microphone; IR remote control; Wireless footswitch (optional) |
| Beam angle: | 7° |
| Beam angle (1/2 peak): | Spot 7° |
| Beam angle (1/10 peak): | Spot 20° |
| Housing color: | Black |
| Attachment system: | TV spigot Ø 28mm |
| Dimensions: | Width: 1,11 m
Depth: 15 cm
Height: 41 cm |
| Weight: | 10,50 kg |
| Noise classification: | Class 2 (slight noise) |
| Laser |
| Laser class: | Class 2M |
| Laser color: | R/G |
| Laser module: | Red (R) 100 mW 650nm
Green (G) 30 mW 532nm |
| Remote control |
| Battery: | Button cell 3.0 V CR2025 lithium manganese built-in |
