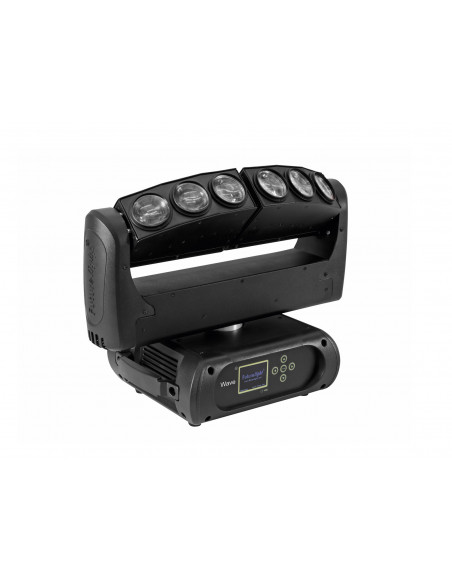

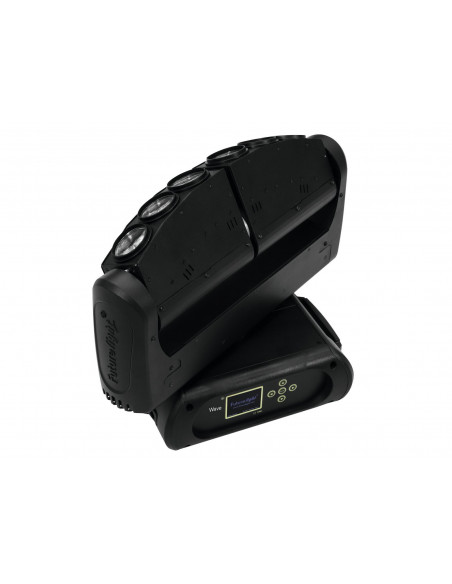

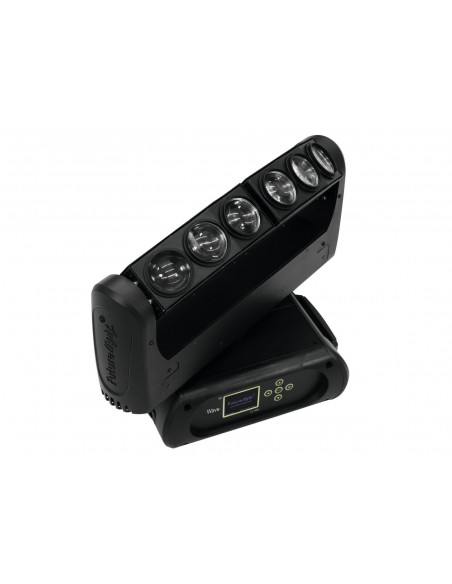

PRO moving-head with two tiltable LED bars and six powerful, white beams

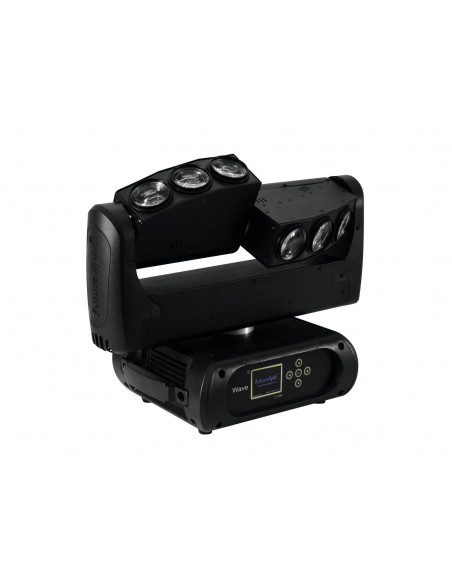

- TILT movement for each LED bar separately and steplessly adjustable
- Each LED can be controlled individually
- Perfect as beam effect into the audience
- Narrow beam angle
- Built-in programs
- Shutter sequences
- Electronic dimmer (0-100%)
- Automatic position correction
- Random strobe effect
- Stand-alone, master/slave and DMX mode
- Control panel with LC display for easy configuration
- Built-in scene memory
- Number of scenes can be changed individually
- Software upload by optional accessories via DMX link
- LED: 6 x high-power 20 W cold white (CW)
- Can be operated in 14; 15; 17; 18 CH mode
- The device is cooled by temperature-controlled fan
- Controlling by RDM; DMX; stand-alone; W-DMX by wireless solution built-in; Sound to light via Microphone
- Preprogrammed in LED PC-Control 512
- Effect: Fan effect
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 200 W |
| IP classification: | IP20 |

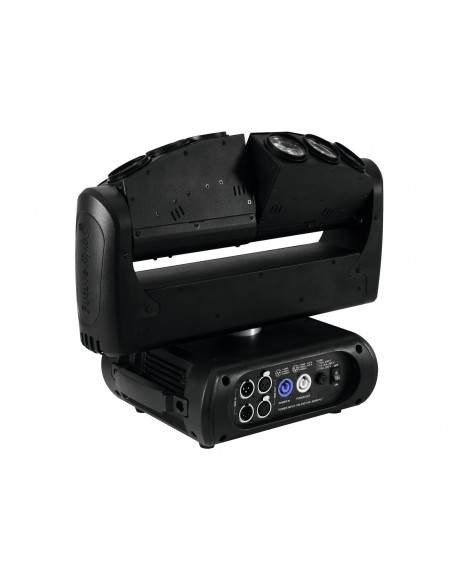

| Power connection: | Mains input PowerCON (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | 1 x PowerCON (gray), mounting version |
| Lamp type: | LED lamp |
| LED: | 6 x high-power 20 W cold white (CW) |
| Max. TILT movement: | Exact positioning (16 bit resolution) 240° Auto position correction (feedback) |
| Max. PAN movement: | Exact positioning (16 bit resolution) 540° Positioning switchable to 630° Auto position correction (feedback) |
| Flash rate: | 0 - 20 Hz |
| DMX channels: | 14; 15; 17; 18 |
| DMX input: | 1 x 3-pin XLR (M) mounting version
1 x 5-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version
1 x 5-pin XLR (F) mounting version |
| Cooling: | Temperature-controlled fan |
| Control: | RDM; DMX; stand-alone; W-DMX by wireless solution built-in; Sound to light via Microphone; LED PC-Control 512 |
| Beam angle: | 2,5° |
| Beam angle (1/2 peak): | 2,5° |
| Housing color: | Black |
| Dimensions: | Width: 46,8 cm
Depth: 25 cm
Height: 32,5 cm |
| Weight: | 10,60 kg |
| Legal specifications |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
