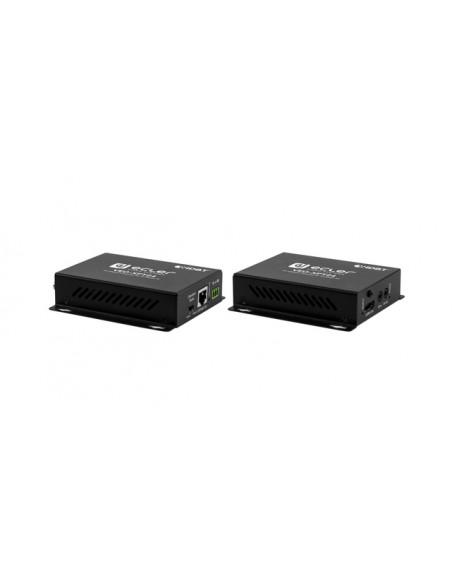

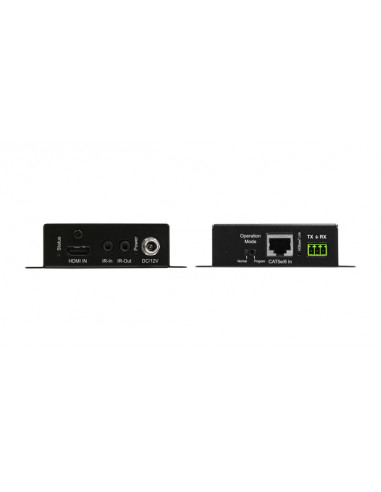

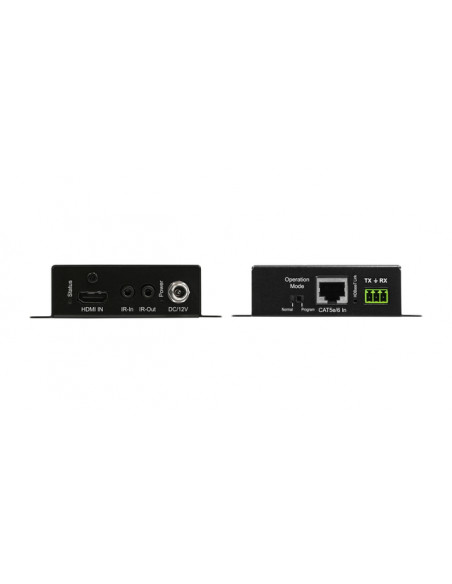

Ecler VEO-XPT24 Extensor 10.2gbps

Referência VEO-XPT24

270,33 €

4K HDBaseT Extender Kit 10.2Gbps

• Complete extender kit, no settings needed

• Full HD support: 1080p@60Hz

• 4K/UHD support: up to 4096x2160@30Hz (or 60Hz with YUV 4:2:0)

• Transmission distances up to 70 meters under 1080p and 40 meters under 4K

• Bi-directional IR and RS-232 pass-through

• Use single UTP/STP category cable (CAT.5e/6/7) to substitute HDMI cable to achieve long distance transmission

• UTP/STP cable termination follows the standard of IEEE-568B

• POC (RX powered by TX)

• HDCP2.2/1.4 compliant

• Mounting ears supplied

Descrição
Detalhes do produto

VEO-XPT24 allows to extend one 4K video signal up to 40m over a single Cat.5e/6 cable or a Full HD signal up to 70m. It supports 4K video signals with a maximum bandwidth of 10.2Gbps including 3D formats. The product is HDCP 2.2 compliant and supports CEC control and Power Over HDBaseT: the receiver can be power supplied by the transmitter over the Cat.5e/6 cable. With the added features of RS-232 and bidirectional IR, this is the perfect solution for extending a HDMI 1.4 video signal and control signals.

Inputs	1x HDMI (TX), 1x HDBaseT (RX), 1x IR (TX)
Outputs	1x HDBaseT (TX) + 1x HDMI (RX), 1x IR (TX)
Resolution	4096x2160@24/25/30/50/60Hz, 3840x2160@24/25/30/50/60Hz(UHD), 2048x1080p, 1080p @ 23.98/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@50/59.94/60Hz, 576p, 576i, 480p, 480i Vesa 2560x2048, 2560x1600, 2048x1536, 1920x1200, 1680x1050, 1600x1200, 1600x900, 1440x900, 1400x1050, 1366x768, 1360x768, 1280x1024, 1280x800, 1280x768, 1152x864, 1024x768, 800x600, 640x480 *4096x2160@50/60Hz & 3840x2160@50/60Hz supported @ chroma subsampling 4:2:0 8-bit only
Features	HDR, HDCP Support, RS-232/ IR Extension, PoH
