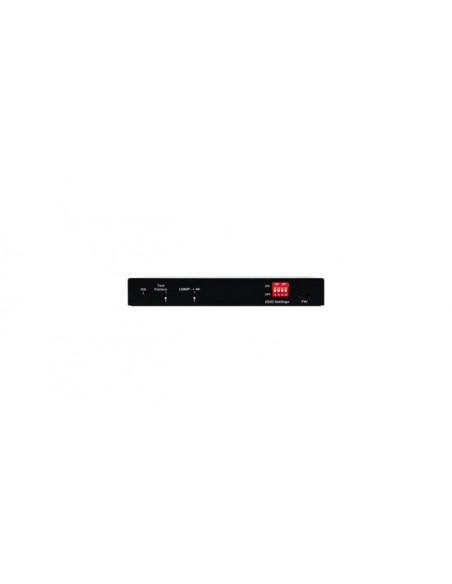

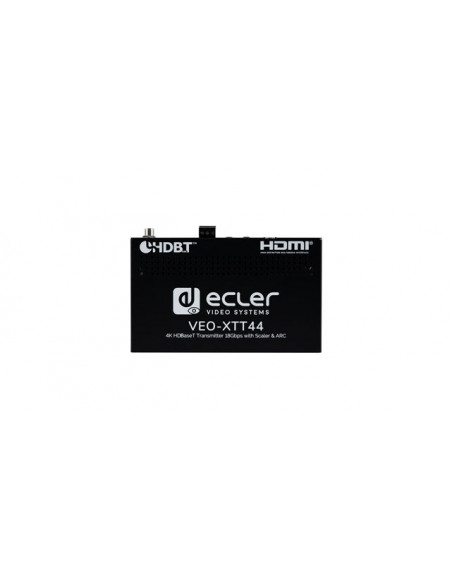

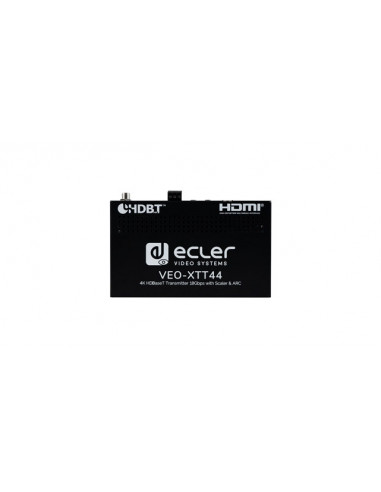

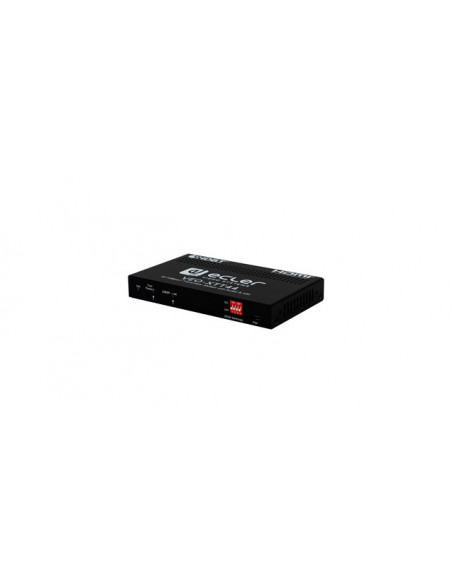

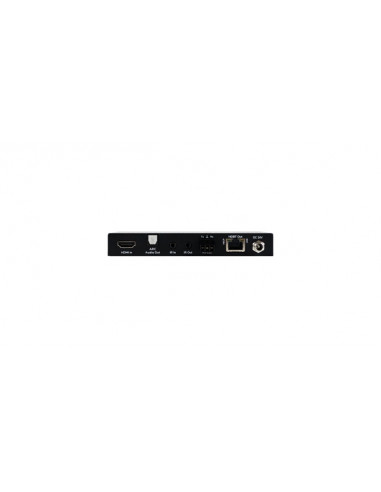

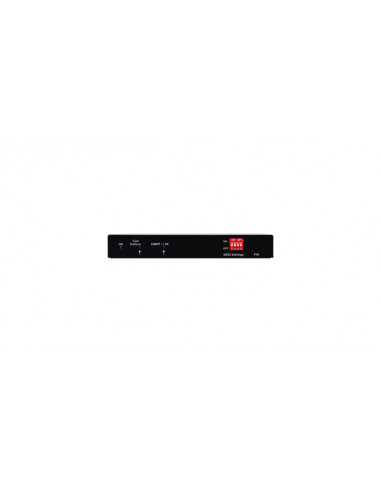

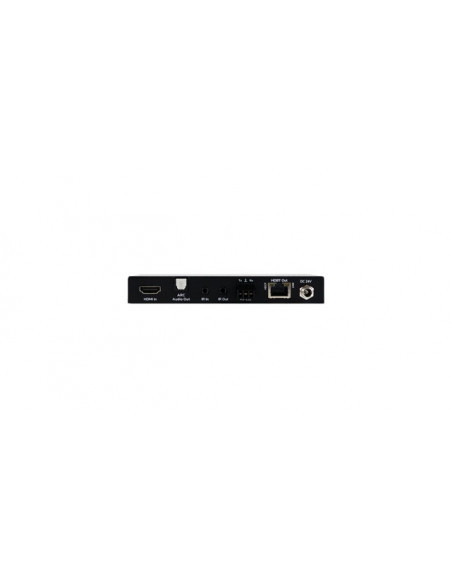

ECLER VEO-XTT44 Extensor Scaler 4K 18gbps

ECLER VEO-XTT44 Extensor Scaler 4K 18gbps

Referência VEO-XTT44

283,74 €

4K HDBaseT Extender/Scaler 18Gbps

Supports HDMI 2.0 and the HDMI video resolution up to 4K @ 60Hz 4:4:4 HDR.

HDCP 2.2 and 1.4 supported.

Extends 4K signals to distances up to 40 meters (131 feet) and 1080P signals to distances up to 70 meters (230 feet) over a single CATx cable.

Supports video resolution up-scaling, the 1080P input can be automatically upgraded to 4K output.

SPDIF out on receiver for source audio de-embedding.

18Gbps high bandwidth.

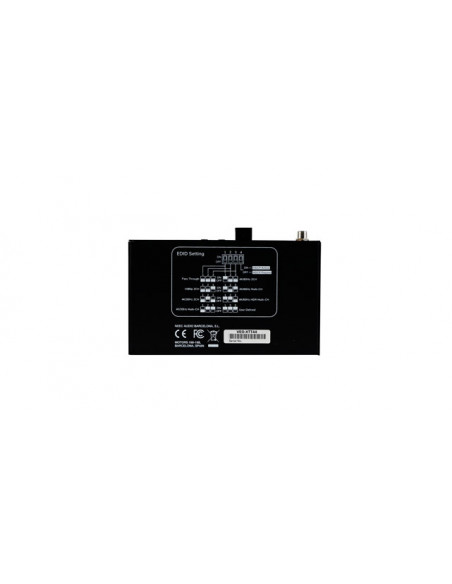

Advanced EDID management: multiple built-in EDID settings or customized EDID can be selected.

Test pattern provides a built-in 4K/1080P image for troubleshooting.

Bidirectional IR, RS232 and 24V PoH.

Supports ARC.

Supports CEC pass-through.

Provides LEDs to indicate the current operating status.

Firmware upgrade by Micro-USB port.

ESD protection

Descrição
Detalhes do produto

Ecler VEO-XTT44 is a professional HDBaseT Transmitter for HDMI 2.0 extension of High Dynamic Range (HDR) formats. The extender support video signal at resolution up to 4K/UHD at 60Hz with 4:4:4 chroma sampling and HDMI data rate up to 18Gbps. The scaler implemented allows to upscale fullHD input to 4K. Bidirectional PoH (Power Over HDBaseT) allows to use only one power supply connected to the Transmitter or the Receiver, according to the installation needs. A 4 pin DIP switch allows managing EDID with multiple and customizable options. The extenders include audio de-embedding and ARC support, bi-directional IR and RS-232 pass-through. A video pattern generator is included in the transmitter for test purposes during installation. This product represents the ideal solution for residential and commercial applications that include the latest 4K/UHD and HDR sources and displays.
