Ecler VEO-XPT44 Extensor HDMI

Referência VEO-XPT44

Preço sob consulta

HDMI 2.0 HDBaseT Extender KIT 18Gbps

• Complete extender kit, no settings needed

• Bandwidth up to 18Gbps, resolution up to 4k @60Hz YUV 4:4:4

• HDR10 and 3D supported

• Transmission distances up to 70 meters under 1080p and 40 meters under 4K

• Bi-directional IR and RS-232 pass-through

• Bidirectional PoH (RX powered by TX or TX powered by RX)

• 1x looping HDMI out on Transmitter and 2 x HDMI out at Receiver for daisy chaining or local monitoring purposes

• Use single UTP/STP category cable (Cat.5e/6/7) to substitute HDMI cable to achieve long distance transmission

• UTP/STP cable termination follows the standard of IEEE-568B

• HDCP 2.2/1.4 compliant

• ESD protection

Descrição
Detalhes do produto

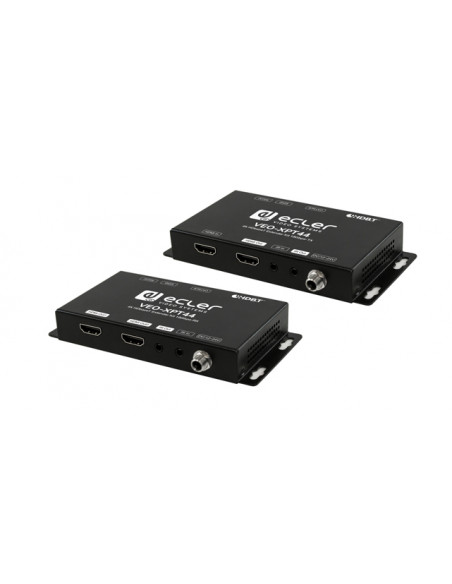

VEO-XPT44 allows to extend one 4K video signal up to 40m over a single Cat.5e/6 cable or a Full HD signal up to 70m. It supports real 4K video signals at 60Hz with 4:4:4 YUV chroma subsampling and HDR 10 with a maximum bandwidth of 18Gbps. With bidirectional PoH feature, the transmitter can be powered by the receiver and viceversa. The transmitter includes 1 HDMI link output while the receiver includes 2 mirrored HDMI outputs for daisy-chain connection. With a very reduced form factor added features of RS-232 and bidirectional IR, this is the perfect solution for any application where AV and control extensions are required.

Inputs	1x HDMI, 1x HDBaseT, 1x RS-232x 1x IR
Outputs	1x HDMI (TX) + 2x HDMI (RX), 1x HDBaseT, 1x RS-232, 1x IR
Resolution	4096x2160@24/25/30/50/60Hz, 3840x2160@24/25/30/50/60Hz(UHD), 2048x1080p, 1080p@23.98/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@50/59.94/60Hz, 576p, 576i, 480p, 480i Vesa 2560x2048, 2560x1600, 2048x1536, 1920x1200, 1680x1050, 1600x1200, 1600x900, 1440x900, 1400x1050, 1366x768, 1360x768, 1280x1024, 1280x800, 1280x768, 1152x864, 1024x768, 800x600, 640x480
Features	EDID Management, HDR, HDCP Support, RS-232/ IR Extension, bi-directional PoH
