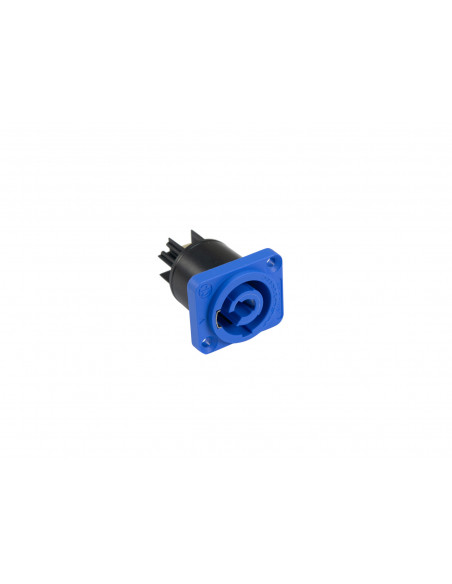

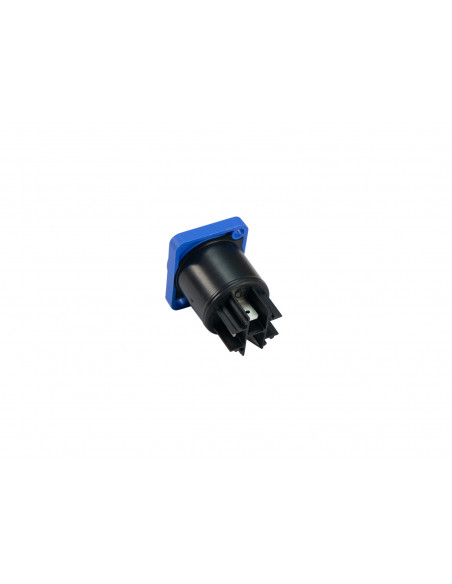

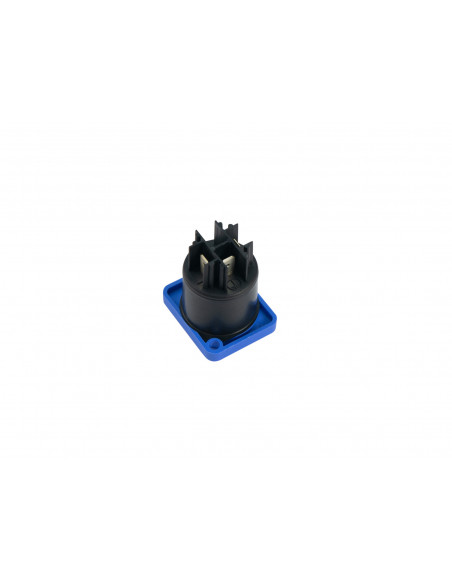

NEUTRIK PowerCon Mounting Connector bu NAC3MPA-1

30208543
3,17 €

Industrial Connectors / PowerConLocking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. Fast and easy locking system. High current capacity (20 A rated). Extremely robust and reliable. Meets all prevailing safety standards. UL recognized, VDE certified and SEV approved. Very good cable handling and protection. Note: The PowerCon is a connector without breaking capacity, i.e. the PowerCon should not be connected or disconnected under load or live!

Mounting connector for 5 - 15 mm cable O.D. range

  • Premating safety ground
  • Quicklock with securing lever
  • With the two non-interchangeable types of connectors (A-type, B-type) it is impossible to produce a short circuit
  • Appropriate plugs are identified by mechanical keyways and by color
  • Built with NEUTRIK connector
  • Made in Europe


IP classification:IP20
Connector type:PowerCON (gray)
Shape:Mounting version
Connections:Solder tail
Use of brands:Built with NEUTRIK connector
Weight:10 g
