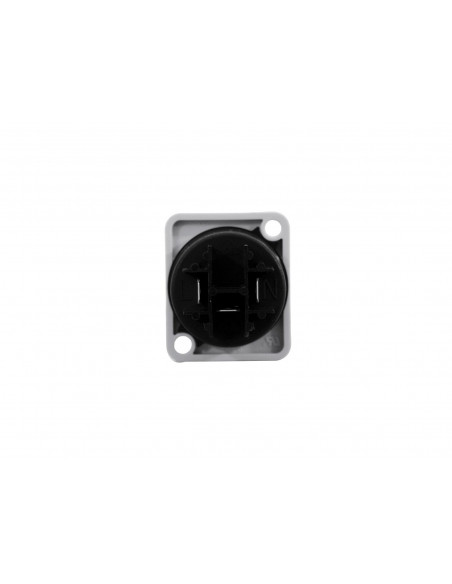

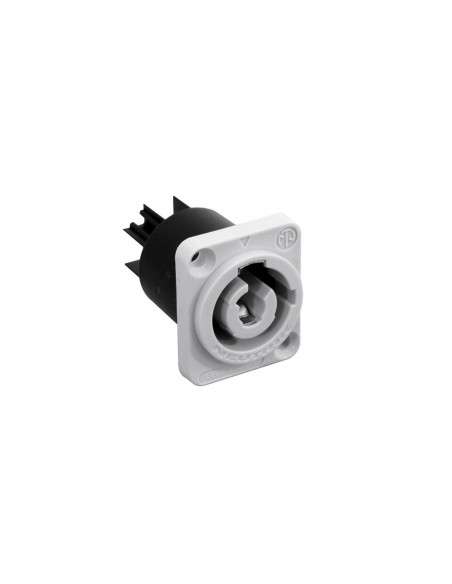

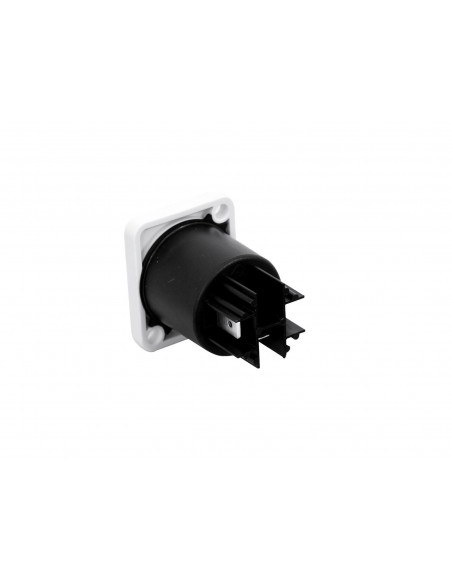

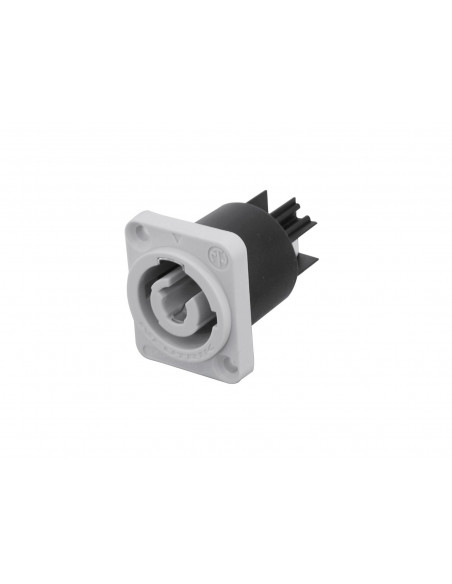

NEUTRIK PowerCon Mounting Connector gy NAC3MPB-1

NEUTRIK PowerCon Mounting Connector gy NAC3MPB-1

Referência 30208544

2,68 €

Descrição
Detalhes do produto

Industrial plug / PowerCon3 conductor equipment AC connector with a fast and easy twist lock latching system and a current carrying capacity of up to 20A. Extremely robust and reliable, the PowerCon complies with all safety standards such as UL, VDE and SEV. The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live.

NEUTRIK chassis connector

Premating safety ground
Quicklock with securing lever
Cable O.D. range: 5 - 15 mm
With the two non-interchangeable types of connectors (A-type, B-type) it is impossible to produce a short circuit
Appropriate plugs are identified by mechanical keyways and by color
Built with NEUTRIK connector
Made in Europe

IP classification:	IP20
Connector type:	PowerCON (gray)
Shape:	Mounting version
Connections:	Solder tail
Use of brands:	Built with NEUTRIK connector
Weight:	10 g
