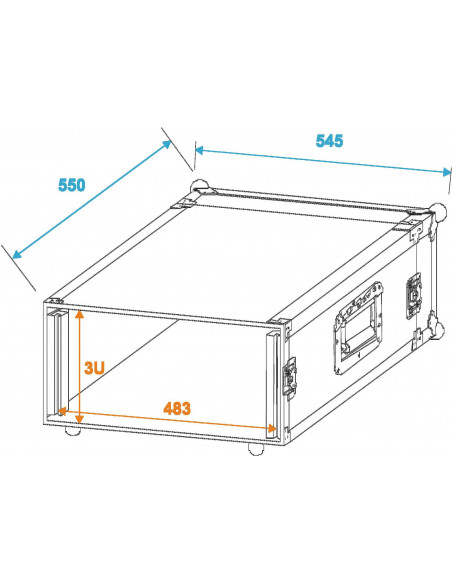

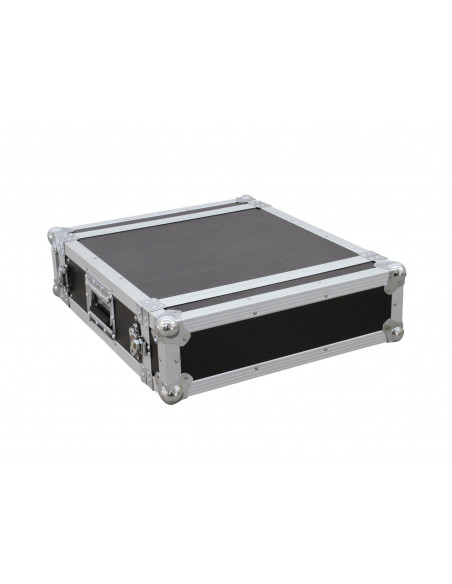

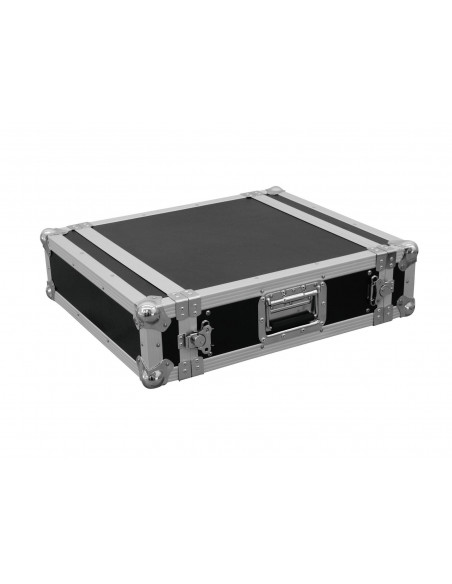

Flightcase for 483 mm devices (19")The ROADINGER amplifier rack PR-1 with 3 U is optimally suited for your 19" equipment such as power amplifiers and other accessories. The maximum installation depth is 420 mm plus 90 mm per cover. The case features high-quality, 7 mm thick sides made of multi-layer glued and black laminated wood. The aluminium profile frame with rounded corners and the three-legged, medium-sized steel ball corners provide additional stability. The amplifier rack is equipped with four snap locks, two chrome-plated case folding handles and two wooden sliding rails on the floor. Both lids are removable.The maximum load is 50 kg.
Flightcase for 483 mm devices (19")

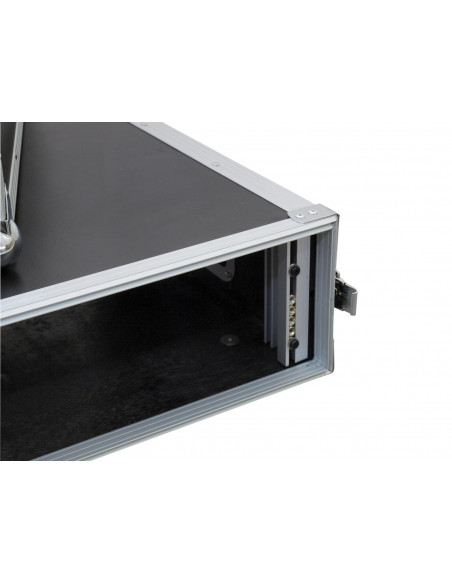

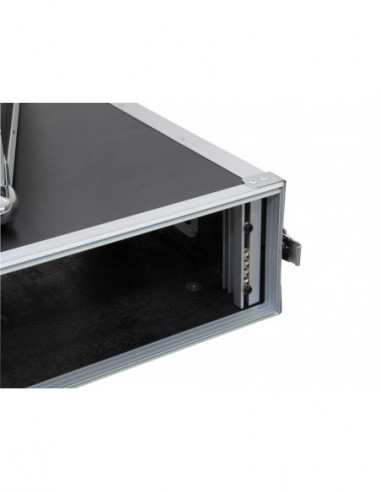

- Profile rails with mounting facility for 483 mm units (19"), e.g. PA amplifiers, power packs, additional equipment

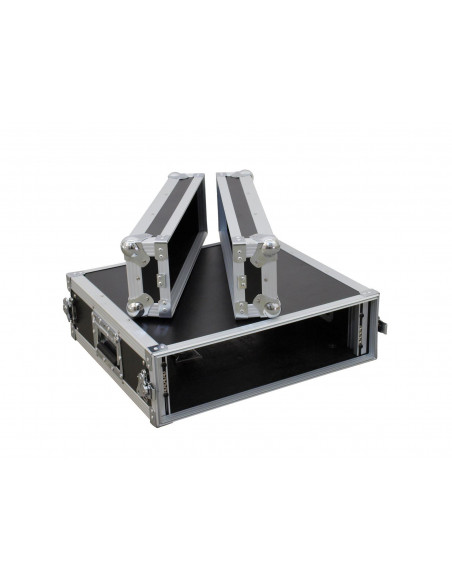

- 2 removable covers (double-door version)
- Max. depth 420 mm (plus 90 mm per cover)
- 2 wooden slide rails on the bottom
- Delivery includes mounting screws
- Available in different height units (1 U = 44 mm)
- High-quality workmanship with plywood glued 7 mm, black, laminated
- Aluminum profile frames 30mm with rounded edges
- 2 hinged, chromium plated case handles
- 4 high-quality spring locks
- With profile rails suitable for (19") approx. 48 cm units
- 3 U
| Maximum load: | 50 kg |
| Aluminum profile frames: | 30 mm |
| Case handles: | 2 pc/pcs |
| Lock: | Spring lock: 4 pc/pcs |
| Material: | Plywood glued, 7 mm |
| Color: | Black, laminated |
| Front panel width: | (19") approx. 48 cm |
| Mounting height: | Approx. 13,5 cm (3 U) |
| Mounting depth: | 470 mm |
| Housing design: | 3 U |
| Dimensions: | Width: 54,5 cm
Depth: 64 cm
Height: 17,5 cm |
| Weight: | 8,60 kg |
