MADRIX 5 is a powerful, easy-to-use, and award-winning LED lighting control software
Allows you to realize all kinds of different LED projects and lighting designs
A normal PC/laptop can be used for professional LED control
Activates output for up to 8x 512 DMX channels (4,096 DMX channels, or 8 DMX universes, for example) and up to 16,384 DVI voxels (a resolution of 128 x 128 pixels, for example)
The license is activated via a USB dongle and can be used flexibly on different computers as needed
Can be upgraded to higher licenses (up to MADRIX 5 License maximum)
Online activation is initially required one time
Only one MADRIX 5 License is possible per MADRIX KEY
Only one MADRIX 5 KEY can be connected to the software
Supports many industry protocols and communication standards for direct connection to your LEDs and LED controllers: Art-Net (I, II, 3, 4) (Unicast & Broadcast), DMX512, Philips Color Kinetics KiNET (V1 / V2), Philips Hue, SPI (via MADRIX NEBULA), Streaming ACN (sACN / E1.31) (Unicast & Multicast), ColourSmart Link, Colorlight A8, Colorlight 5A, Colorlight T9, DVI (VGA, HDMI, and more), Eurolite T9
Even more options are available via converters or bridging tools
Allows mapping in 2D (pixel mapping) as well as real, spatial 3D (voxel mapping)
The software generates unique effects, visuals, and animations live and in real time
No additional content is required
Already includes a multitude of stock effects that are fully customizable (in speed, color, shape, direction, size, movement, position, brightness, and many more)
Analyzes incoming audio signals for Sound2Light and Music2Light in real time (WDM or ASIO)
TRI effect category for interactive performances
New lighting scenes can easily be created in seconds
Supports media server features also: Conveniently load and play back images, pictures, logos, and videos as well as live video signal capturing, screen capturing, scrolling text (ticker), and more
Supports audio playback for videos
Variety of options to combine visuals and graphical elements (layers, mix modes, filters, etc.)

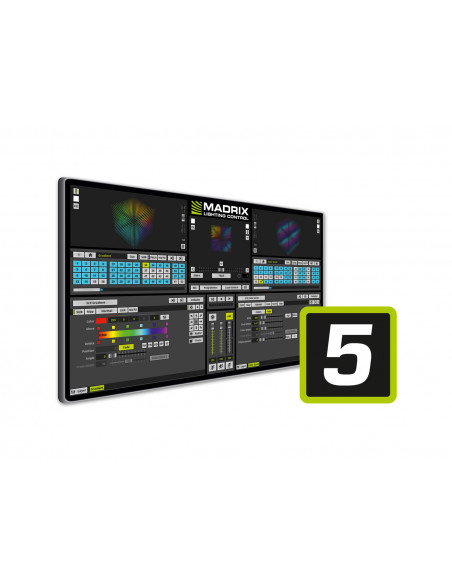

Clean and simple user interface with 2 themes (dark and light)
DJ-/VJ-like operation with 2 decks (A/B) and a crossfader
256 x 256 Storage Places to organize and store effects
3 real-time previews to show your visual effects in advance (incl. 2D/3D, zoom, rotation)
2 DVI outputs
Controls up to 4 color channels per pixel/voxel (e.g. 1-channel, 2-channel, RGB, RGBW fixtures)
Freely configurable Cue List for automated playback of a show (incl. time, date, duration, etc.)
Supports Time Code (Art-Net, MIDI, SMPTE, and System Time)
Input, interoperability, and remote control available through industry standards: Art-Net (I, II, 3, 4), Blackmagic Design (DeckLink, Intensity, and more), CITP, DMX512, GamePort, MA-Net 1 / MA-Net 2, MADRIX I/O, MIDI, NewTek NDI (Send & Receive), Remote HTTP (Web Server), Spout (Send & Receive), Streaming ACN (sACN / E1.31)
Even more options are available via converters or bridging tools
Incl. Fixture Editor with large fixture library
Comfortable patching features (incl. Matrix Generator, graphical Patch Editor with background image support, DVI Patch, CSV Fixture List Import, Fixture List Export, and more)
Includes various other tools and features (Art-Net Time Code Sender, DMX Fader Tool, DMX Watcher, MIDI Watcher, Touch Screen window, backup system, scripting, mapping, scaling, etc.)
Supports various 3rd-party interfaces via aforementioned standards as well as MADRIX hardware interfaces (sold separately)
Minimum system requirements: 2.0 GHz dual-core CPU, OpenGL 2.1 graphics card (NVIDIA recommended), 2 GB RAM, 1 GB free harddisk space, 1280 x 768 screen resolution, network card, sound card, USB 2.0 (optimal system specifications will often be higher)
Supported operating systems: Microsoft Windows 7 8 8.1 10 (64 bit only)
Software and installation instructions available in English, German, Spanish, French, and Simplified Chinese
All user manuals are provided digitally and are available in English
User manuals also available at help.madrix.com
Made in Germany
Free software demo version and more information available at www.madrix.com
