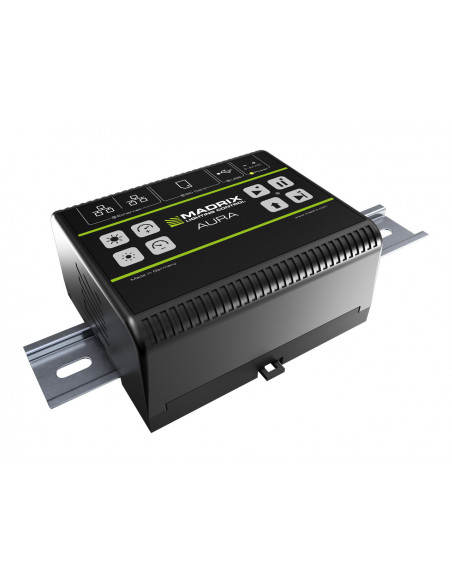

Advanced lighting-control recorder and stand-alone playback unit for 2 unisverses
- The compact and energy-efficient device plays back light shows and effects from SD card
- Allows you to realize all kinds of different LED projects and lighting designs with automatic lighting control
- Supports Art-Net and Streaming ACN to send control data over Ethernet network
- Simply connect compatible MADRIX hardware interfaces or third-party nodes to provide the correct output for your lighting fixtures
- Allows you to record any Art-Net or Streaming ACN network stream live onto the inserted memory card
- Unlike any other solution, recording a beautiful light show with the MADRIX 5 Software from the same company is as easy as pressing record and play
- Any record started in MADRIX 5 automatically starts the recording process on the device
- Set up fully time-controlled shows with the help of the internal clock as well as sunrise and sunset timers
- Offers a built-in web page for simple on-device configuration of all settings
- Is available in 3 versions: Outputs up to 2 universes, 8 universes, or 32 universes per device
- Multiple devices can be used together without problems for larger projects
- Features a built-in Master-Slave Synchronization across all DMX universes for seamless lighting effects on the complete LED installation when using multiple devices
- 8 on-device buttons allow for quick playback and recording control plus adjustment of overall speed and intensity
- Can be triggered and controlled remotely via HTTP commands (built-in web server) or via Art-Net/sACN
- 2 Ethernet ports with daisy-chain support for the data connection without using a separate network switch or router

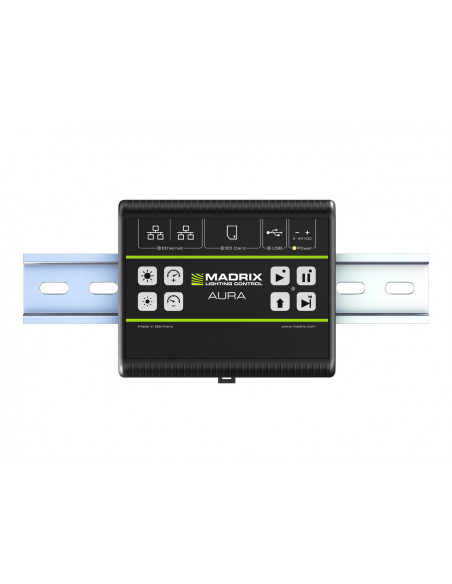

- Can be mounted on 35-mm DIN rails or on walls via the provided wall-mount brackets
- Provides flexible power options: over 5 V USB or 5 V to 24 V DC via pluggable screw terminal
- Non-conductive enclosure with IP20 and UL94 V-O flammability rating
- Fanless, noiseless, low-energy design
- Ready within seconds after startup
- The firmware can be updated for future features and enhancements
- Quick start guide / technical manual available in English and German
- User manuals also available at help.madrix.com
- More information available at www.madrix.com

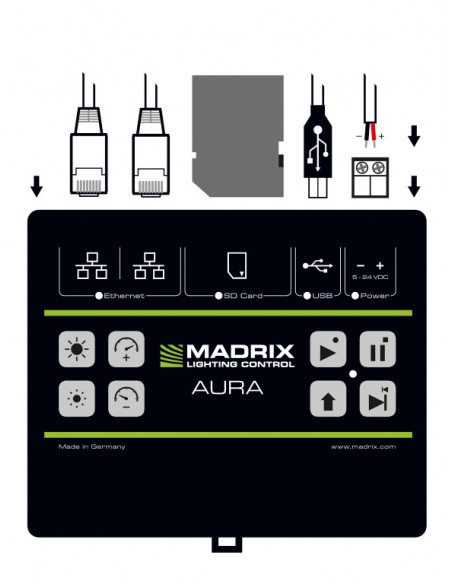

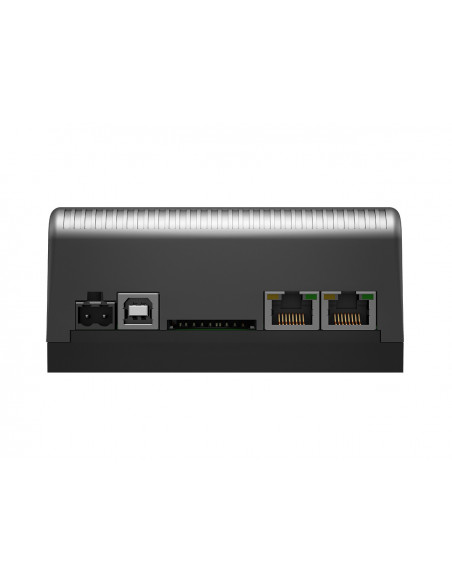

- Connectivity: 2x RJ45 Ethernet ports, 1x SD-card slot, 1x USB port, 1x Power (via pluggable screw terminal)
