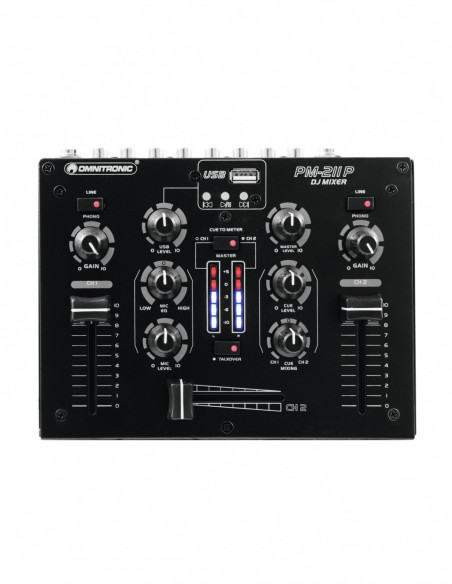

2-channel DJ mixer with integrated MP3 player
- 2 input channels with gain control and phono/line switching
- DJ microphone input with talkover selector, level and tone control
- Adjustable MP3 player for external USB storage media up to 32 GB, e.g. USB flash drives or portable players
- Pre-fader listening (CUE) to the input channels via adjustable headphones output, with cue mix control
- Crossfader for crossfading between both channels

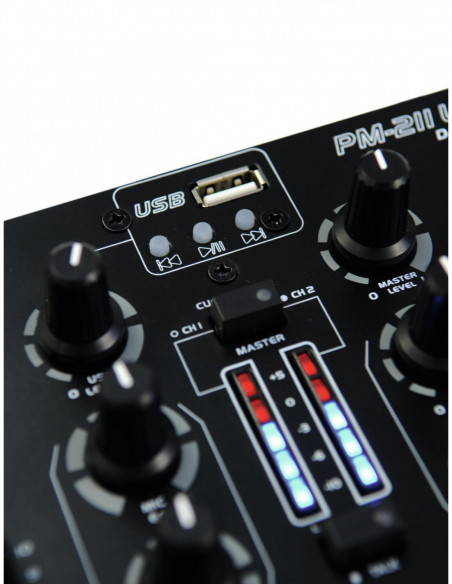

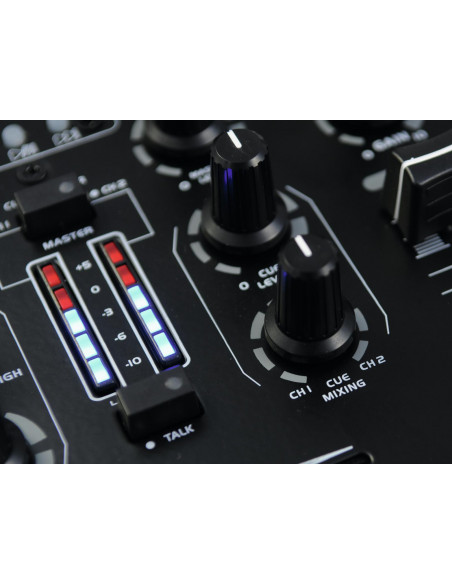

- 5-digit stereo LED level meter, switchable between master and PFL signal
- Additional recording output
- Operation via supplied power unit

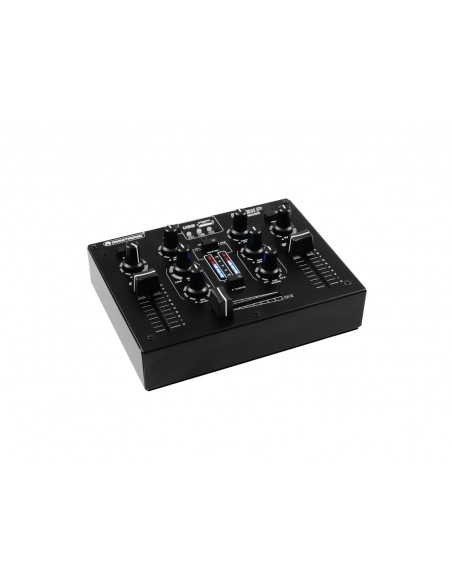

- Desktop console housing
| Power supply: |
230 V AC, 50 Hz
12 V AC |
| Power consumption: |
3,00 W |
| Protection class: |
Class III |
| Power connection: |
Mains input Coaxial power connector (M) power supply cord with AC adapter (provided) |
| Frequency range: |
20 - 20000 Hz |
| S/N ratio: |
>75 dB |
| THD: |
<0,07 % at 1 kHz |
| Audio player: |
USB |
| Control elements: |
Crossfader, Cue-mix-function, Talk over |
| Status LED: |
Chanal level meter, master level meter, chanal source, Talk over |

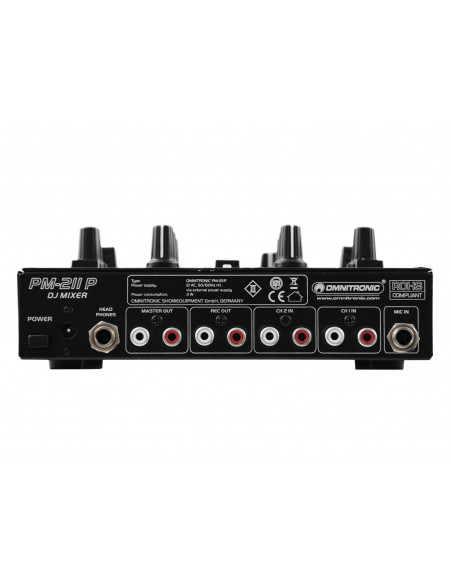

| Connections: |
Input: line via 2 x stereo RCA
Input: Microphone via 1 x 6.3 mm jack socket (mono) mounting version
Input: Audio player via 1 x USB A (F) mounting version
Output: master via 1 x stereo RCA
Output: rec. via 1 x stereo RCA
Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version |
| Channels: |
Input chanel: 2 x stereo with line-phono switch via RCA, channel control via fader, Tone control EQ, gain control,
Input chanel: 1 x stereo via Audio player, channel control via Rotary dial, Talk over switch,
Microphon chanal: 1 x mono via Plug 6,3mm/3,5mm (Jack), channel control via Rotary dial, Cue-mix-function,
Master output: 1 x stereo via RCA, channel control via Rotary dial
Headphones output: 1 x stereo via Plug 6,3mm/3,5mm (Jack), channel control via Rotary dial |
| Format: |
MP3, WAV |
| Available storage media: |
USB devices max. 32GB (FAT 32) |
| USB port: |
Typ A |
| Housing design: |
Desktop console housing |
| Dimensions: |
Width: 17 cm
Depth: 14 cm
Height: 6,5 cm |
| Weight: |
1,15 kg |
