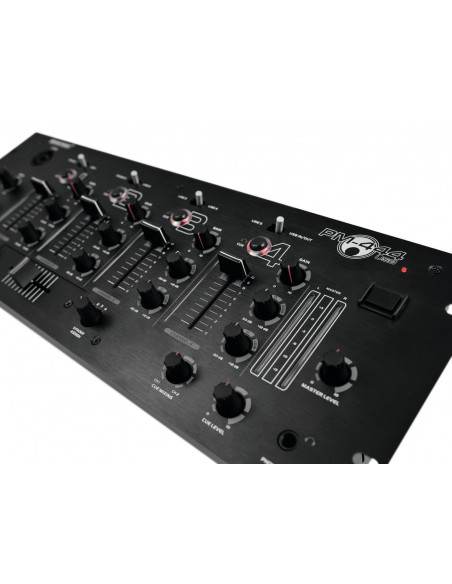

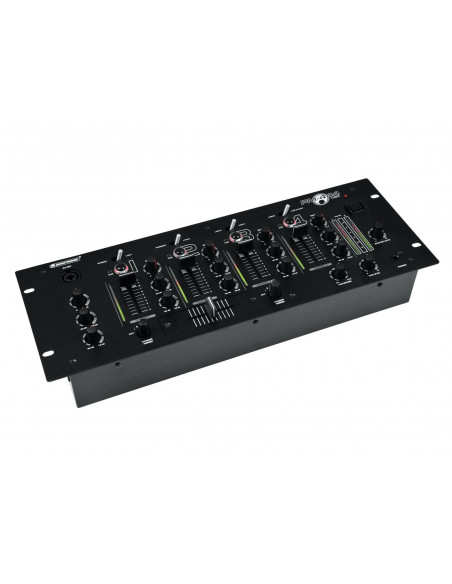

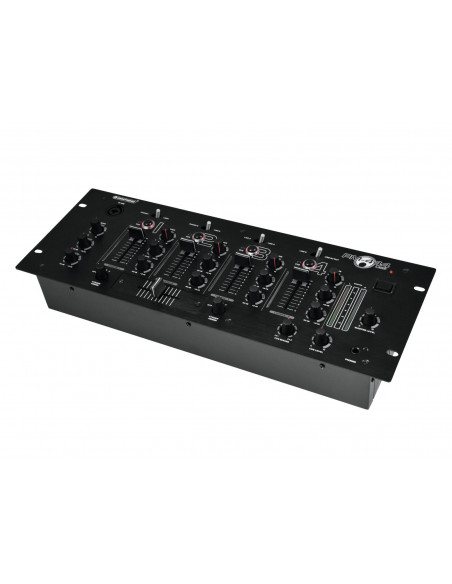

OMNITRONIC PM-444USB 4-Channel DJ mixer

Referência 10006823

198,77 €

Entrega entre 7-10 dias

Mixer de DJ de 4 canais com interface USB

Descrição
Detalhes do produto

4-channel DJ mixer with USB interface

Integrated USB audio interface for digital mixing of audio files from PC and Mac
Full duplex USB port allows simultaneous recording and playback
4 channels with gain control, 2-band equalizer, cue button and channel fader
1 DJ microphone channel with talkover selector and 2-band equalizer
Pre-fader listening to all stereo input channels and the master output via adjustable stereo headphones output
Replaceable crossfader for crossfading between input channels with assignment switches

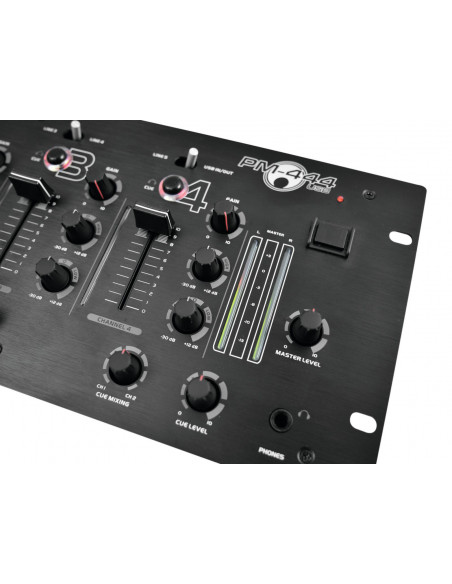

Master channel with level control and 6-digit stereo LED level meter
Inputs: 1 x USB, 5 x line (stereo RCA), 2 x phono (stereo RCA), 1 x microphone (XLR/jack)

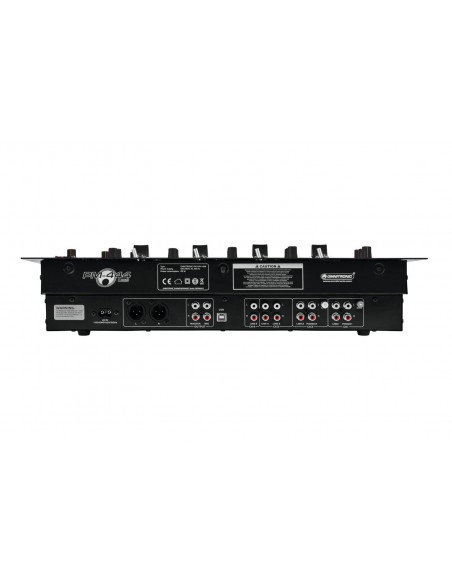

Outputs: master (stereo XLR/RCA), record (stereo RCA), headphones (6.3 mm jack)
Rack installation, 4 U
The device can be connected via USB to the PC
(19") 48.3 cm rack installation 4 U

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	25,00 W
Protection class:	Class II
Power connection:	Mains input C8 "figure 8" mounting version power supply cord with Euro plug (provided)
Frequency range:	20 - 20000 Hz
S/N ratio:	>60 dB
Impedance:	Input Microphone: 1 kOhm Input line: 1 kOhm Input phono: 1 kOhm
Gain:	Input: variable
Control elements:	Crossfader selector switch, Crossfader, source selector, power switch
Status LED:	Power, CUE, master level meter, chanal level meter
Connections:	Input: Microphone via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Input: line via 5 x stereo RCA Input: phono via 2 x stereo RCA Output: master via 2 x 3-pin XLR Output: master via 1 x stereo RCA Output: rec. via 1 x stereo RCA Output: rec. via 1 x USB B (F) mounting version Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version
Channels:	Input chanel: 2 x stereo with line-phono switch via RCA, channel control via fader, 2-band tone control EQ -30dB to12dB at 80Hz/12kHz, gain control, Input chanel: 1 x stereo with Line-line switch via RCA, channel control via fader, 2-band tone control EQ -30dB to12dB at 80Hz/12kHz, gain control, CUE switch, Input chanel: 1 x stereo with Line-USB switch via RCA or USB, channel control via fader, 2-band tone control EQ -30dB to12dB at 80Hz/12kHz, gain control, Microphon chanal: 1 x mono via 3-pin XLR/6.35mm jack (F) combination socket (mounting version), channel control via Rotary dial, 2-band tone control EQ -30dB to12dB at 70Hz/13kHz, Cue-mix-function, Master output: 1 x stereo via XLR or RCA, channel control via Rotary dial Headphones output: stereo via Plug 6,3mm/3,5mm (Jack), channel control via Rotary dial
USB port:	USB 2.0, Typ B
PC connect:	Via USB
Housing design:	(19") 48.3 cm rack installation 4 U
Dimensions:	Width: 48,3 cm Depth: 17,8 cm Height: 8,9 cm
Weight:	2,90 kg
