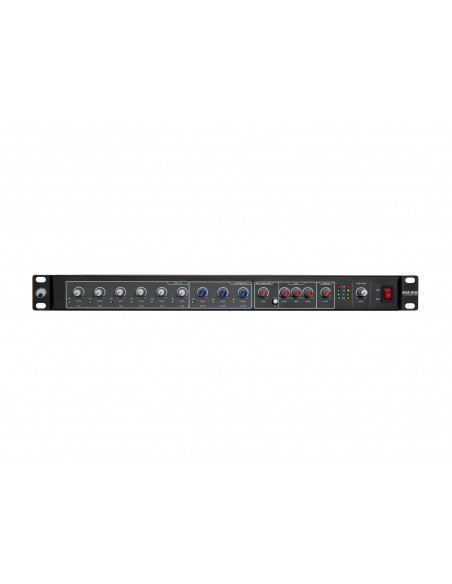

Microphone line mixer, 6 mono channels + 3 stereo channels
- 6 mono mic/line input channels (combo jack), switchable
- 3 stereo line input channels (RCA)
- Phantom power can be switched on for each microphone input
- All input channels with separate level controls and signal LED
- Adjustable priority circuit for channel 1
- Balanced stereo XLR outputs and RCA outputs
- Adjustable monitor output (6.3 mm jack) for monitoring the microphone signals
- Adjustable mono line output (6.3 mm jack)
- Master level control, 4-digit stereo LED level meter and 3-band equalizer
- Additional screw terminals for 24 V DC power input
- Incl. mounting brackets for 483 mm rack installation (1 U)
- (19") 48.3 cm rack installation 1 U
Power supply: | 230 V AC, 50 Hz Or 24 V DC |
Power consumption: | 12 W |
Protection class: | Class I |
Power connection: | Mains input IEC connector (M) mounting version Power supply cord with safety plug Mains input screw terminal |
Frequency range: | 20 - 22000 Hz |
S/N ratio: | >103 dB |
THD: | <0,03 % at 1 kHz |
Phantom power: | 18 V DC or 21 V DC |
Impedance: | Input mic/line: 1,4 kOhm Input line: 10 kOhm Output 120 Ohm |
Control elements: | Power switch |
Status LED: | Power, signal, master level meter, clip |

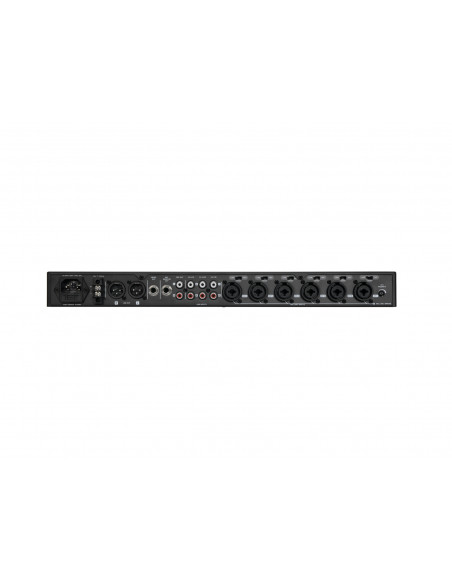

Connections: | Input: 6 x mic/line via 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Input: 3 x line via stereo RCA Output: 2 x master via 3-pin XLR Output: 1 x mono via 6.3 mm jack socket (mono) mounting version Output: 1 x rec. via stereo RCA |
Chanals: | Input chanel: 6 x mono with Mic-line switch via 3-pin XLR/6.35mm jack (F) combination socket (mounting version), channel control via Rotary dial, 3-band tone control EQ 80Hz/2,5kHz/12kHz Input chanel: 3 x stereo via RCA, channel control via Rotary dial, 3-band tone control EQ 80Hz/2,5kHz/12kHz Master output: 1 x stereo via XLR, channel control via Rotary dial Master output: 1 x mono via Plug 6,3mm/3,5mm (Jack), channel control via Rotary dial |
Max. level: | Input: Microphone -19 dBu Input: line +21 dBu Output: +21 dBu |
Housing design: | (19") 48.3 cm rack installation 1 U |
Dimensions: | Width: 48,3 cm Depth: 23 cm Height: 4,45 cm |
Weight: | 3,04 kg |
