A variety of options with multi-frequency wireless systemsWith the new 1000 series, OMNITRONIC offers future proof microphones in the frequency range UHF 740-764 MHz. Due to the high number of switchable frequencies (192), up to 16 intermodulation free wireless systems can be operated at once. This enables a variety of combinations between several receivers, hand-held microphones, bodypacks with singer headset or moderator headset or lavalier microphone.

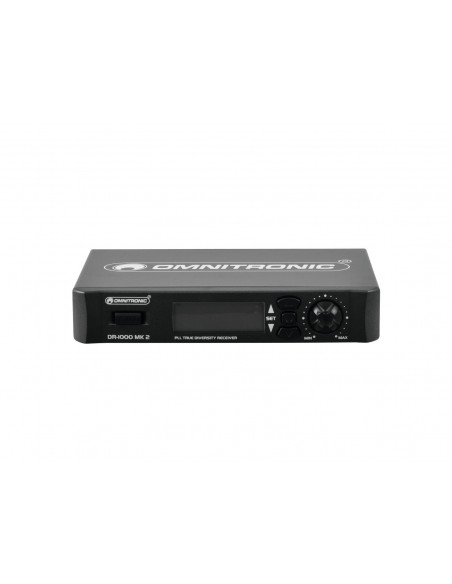

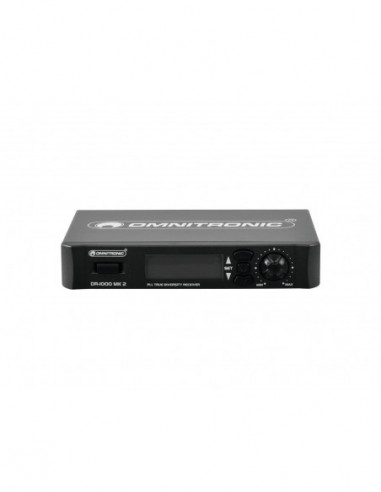

Multifrequency wireless receiver, True Diversity
- Multifrequency wireless receiver with UHF pilot tone technology (PLL)
- High-quality true diversity reception

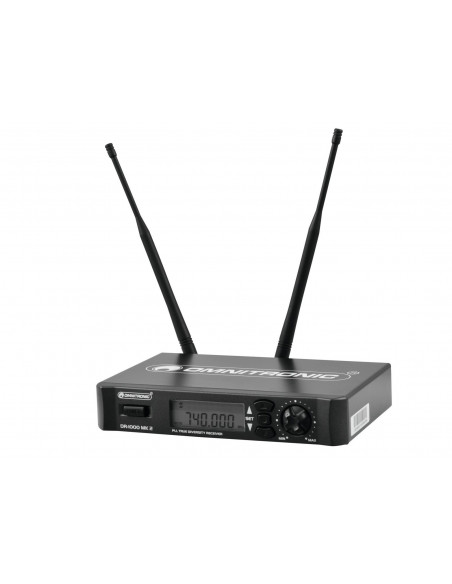

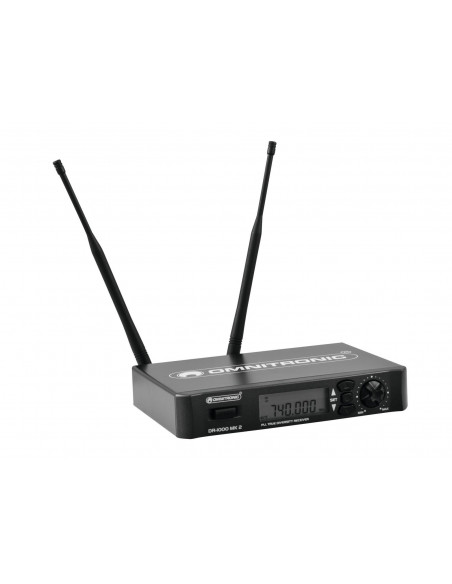

- Two removable antennas (BNC connection)
- Operation in the low-interference UHF band (740-764 MHz)
- 192 carrier frequencies switchable in 125 kHz steps (40 frequencies per MHz)
- System expandable to up to 16 receivers with 16 microphones
- LCD for battery status of the transmitter, antenna A/B, RF reception level, AF audio level and frequency
- Automatic frequency scan
- Output level control
- Lock function avoids undesired changes by users, also accidental shutdown
- Mute mode when signal is absent or too weak

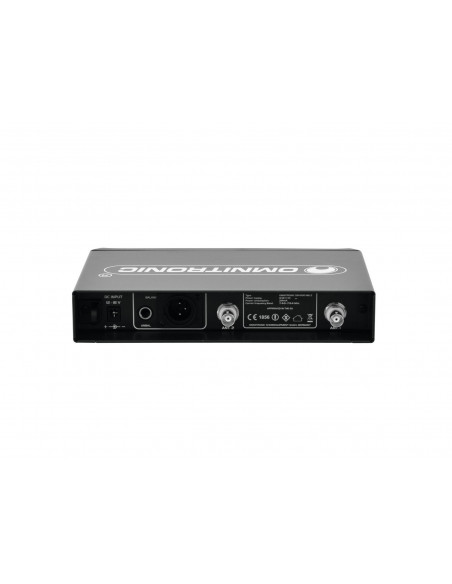

- 6.3 mm and XLR output

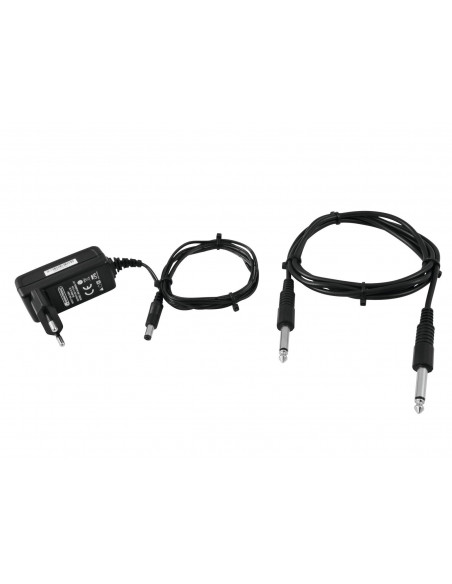

- Operation via supplied power unit
- Rugged metal housing
- Optional mounting frame for rack installation available
- Optional antenna boosters and antenna distributor for easy setup of several receivers
- Optional hand-held microphone, pocket transmitter, lavalier microphone and headset available
- License required in Germany
- Use a operating range up to 100m with line of sight
- Desktop console housing; (19") 48.3 cm rack installation (provided)
| Type: | Receiver |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 6,00 W |
| Power connection: | Mains input Coaxial power connector (M) power supply cord with AC adapter (provided) |
| Number of channels: | 1 |
| Frequency range: | 40 - 18000 Hz |
| S/N ratio: | >105 dB |
| THD: | <0,6 % at 1 kHz |
| Connections: | Output: Microphone via 1 x 3-pin XLR
Output: Microphone via 1 x 6.3 mm jack socket (stereo) mounting version |
| Frequency band: | UHF 740 - 764 MHz |
| Frequency selection: | 192 Switchable frequencys |
| Modulation: | FM |
| Frequency stability: | ± 0,0005 % |
| Range: | 100 m with line of sight |
| Switching bandwidth: | 24 MHz |
| Switch: | On/off switch |
| Diversity: | True diversity |
| Housing design: | Desktop console housing
(19") 48.3 cm rack installation (provided) |
| Dimensions: | Width: 21,3 cm
Depth: 15 cm
Height: 4 cm |
| Weight: | 1,33 kg |
