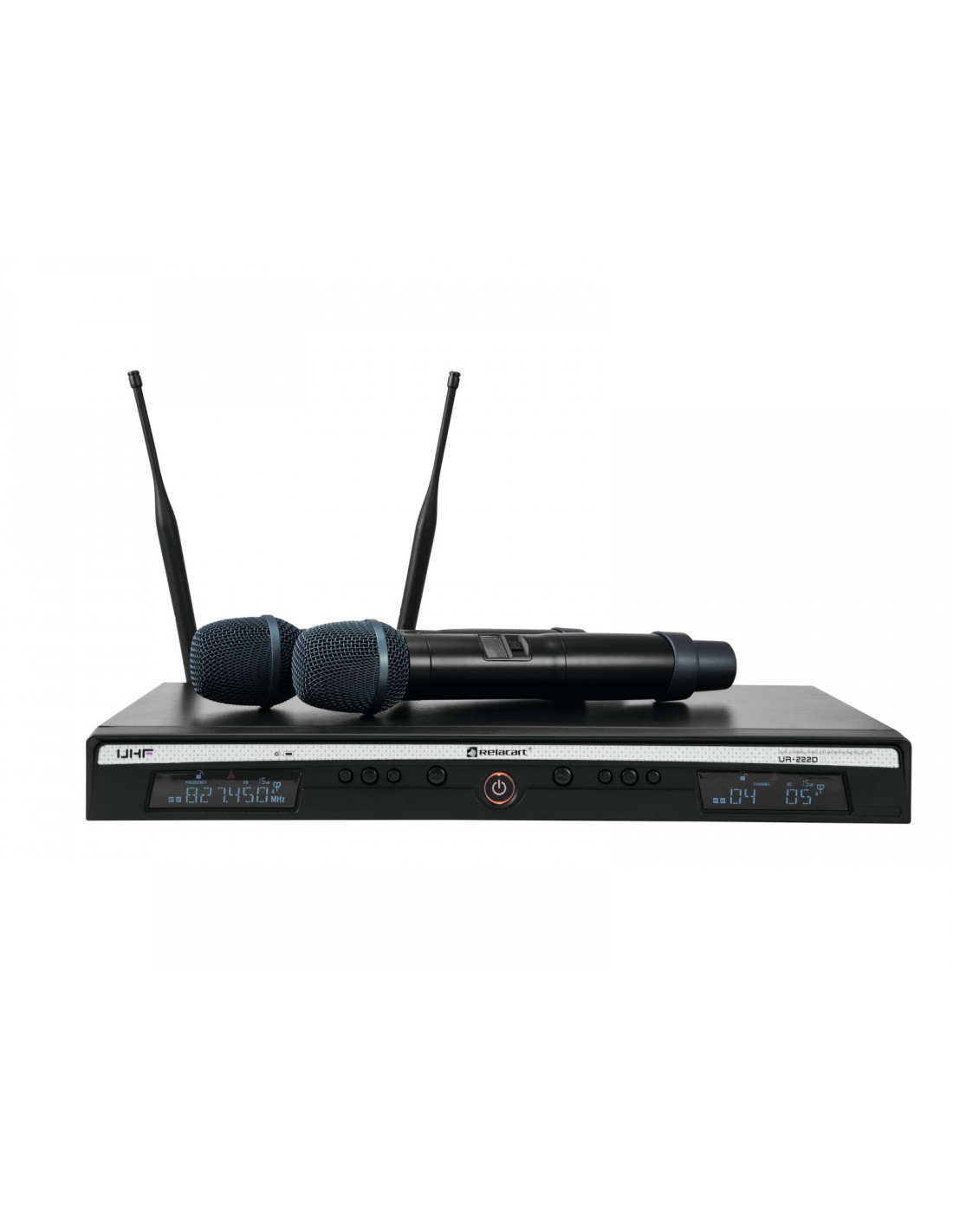

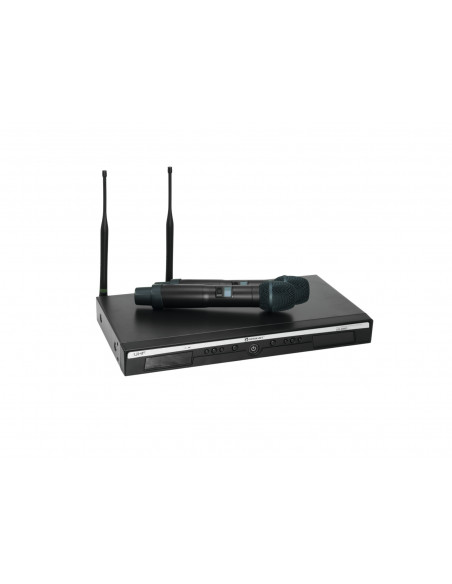

True diversity wireless microphone system with two channels, 823-832 MHz + 863-865 MHz
RELACART UR-222D 2-Channel UHF Receiver
2-channel multifrequency wireless receiver with true diversity reception
- 2-channel multifrequency wireless receiver with high-quality true diversity reception
- 2 license-free frequency ranges: 823-832 MHz (Duplex Gap) and 863-865 MHz
- 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
- Parallel operation of up to 9 systems is possible without any interference
- Pilot tone technology (PLL) for interference-free reception
- Automatic frequency scan (AFS) finds interference-free channels
- Easy and error-free synchronization between receiver and transmitter via infrared signal

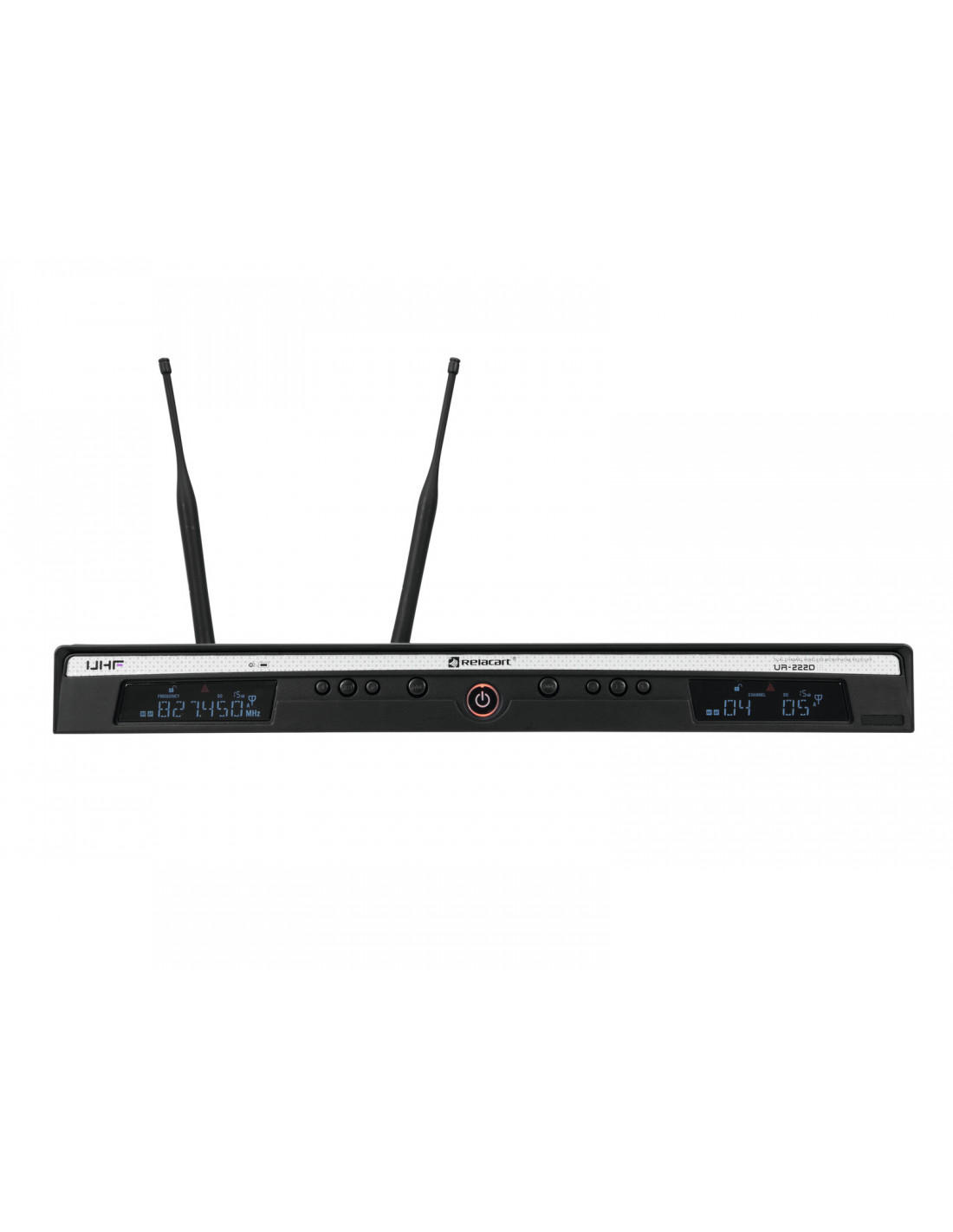

- LCD for battery status of the microphone, antenna A/B, RF reception level, AF audio level and frequency
- XLR and 6.3 mm jack output

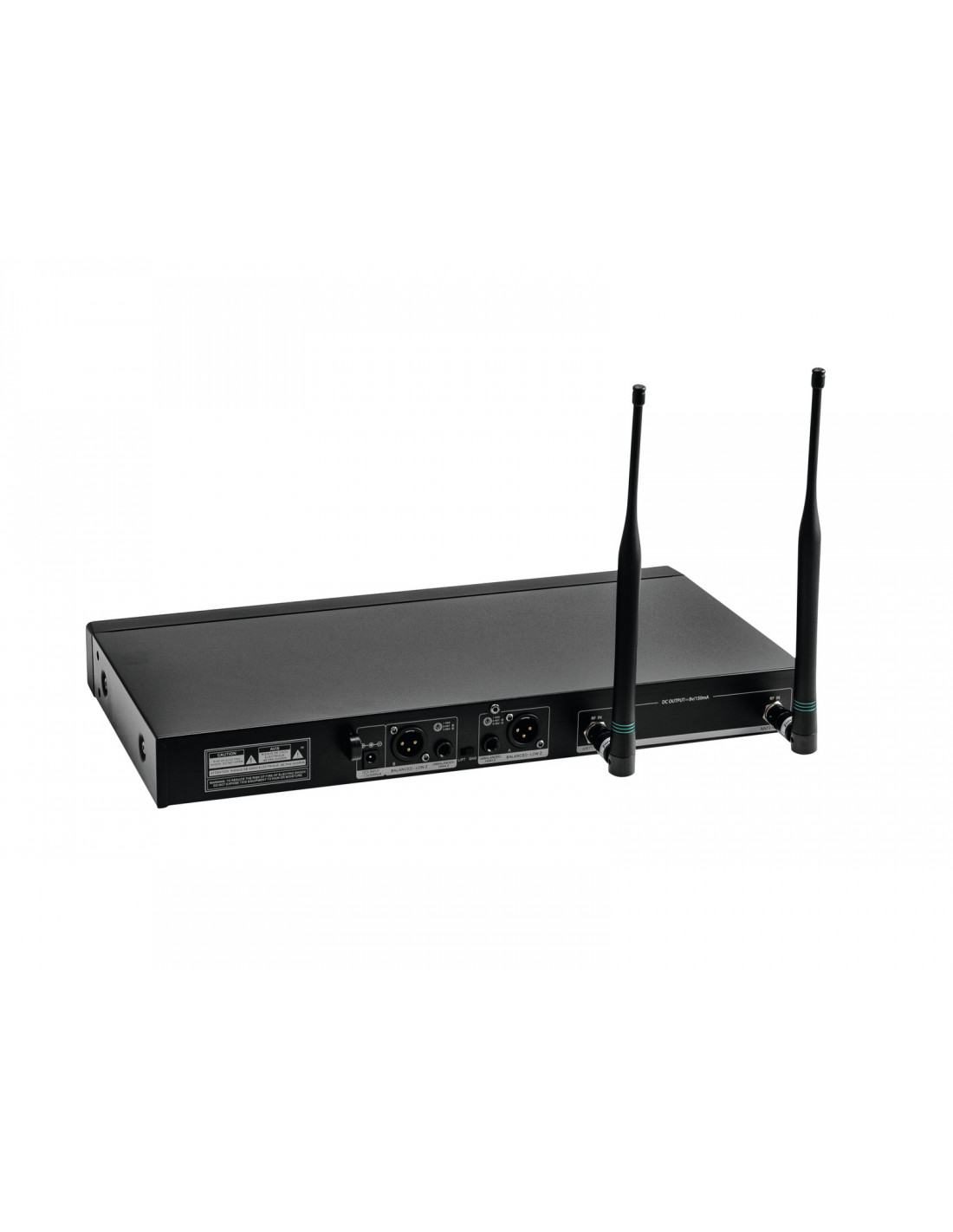

- 2 detachable BNC antennas allow for use with the R-14D antenna divider
- Delivery includes practical transport bag with jack cable and power adapter
- Durable metal housing
- 483 mm rack installation possible with supplied mounting brackets
- Matching transmitters optionally available: hand-held microphone (UH-222D/C) and pocket transmitter (UT-222)
- License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)
- Use a operating range up to 80m with line of sight
- Desktop console housing 1 U; (19") 48.3 cm rack installation (provided)
RELACART UH-222D Microphone
Hand-held microphone with PLL multifrequency transmitter
- Dynamic hand-held microphone with UHF pilot tone technology (PLL)
- Ergonomic aluminum alloy housing, applicable for touring
- Matches receivers UR-222S and UR-260D
- 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
- Infrared interface for easy and error-free synchronization with the receiver via infrared signal
- OLED display for battery status and frequency
- RF output power Hi/Low adjustable
- Gain level Hi/Mid/Low adjustable
- Directly compatible with Shure's SM58 capsule
- License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)
- Polar pattern: Super cardoid
- Use a operating range up to 80m
| Type: | Wireless set |
| Weight: | 2,89 kg |
| RELACART UR-222D 2-Channel UHF Receiver |
| Type: | Receiver |
| Power supply: | 100-240 V AC, 50/60 Hz
12 V DC 1 A |
| Power consumption: | 5 W |
| Power connection: | Mains input Coaxial power connector (M) power supply cord with AC adapter (provided) |
| Number of channels: | 2 |
| Frequency range: | 45 - 18000 Hz |
| S/N ratio: | >105 dB |
| Display type: | Multicolor LCD display |
| Control elements: | Navigation keys, menu, groundlift selector |

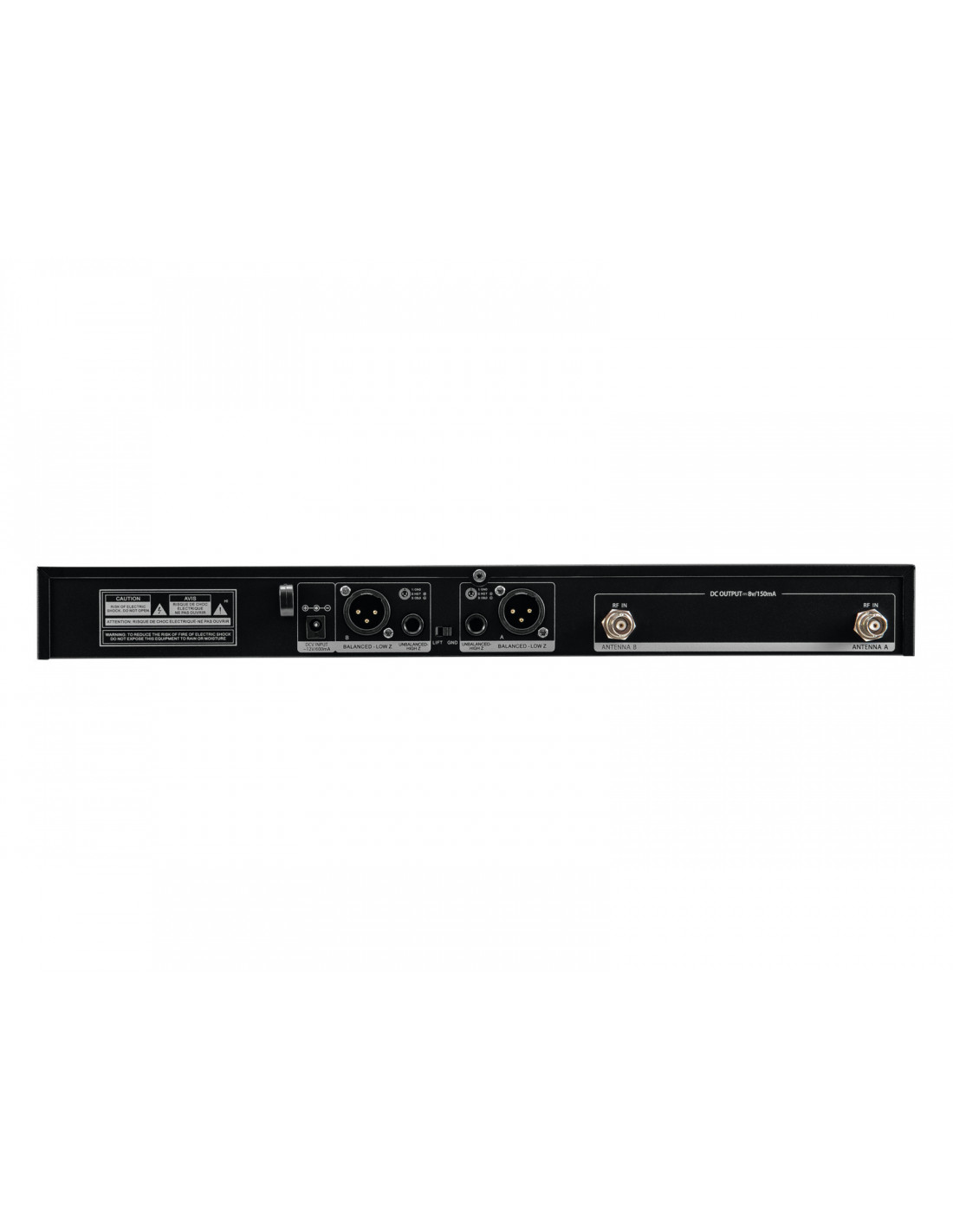

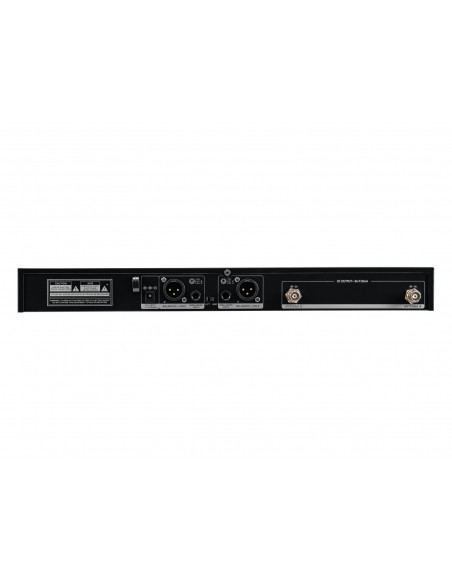

| Connections: | Output: line via 2 x 3-pin XLR
Output: line via 2 x 6.3 mm plug (unbal.)
Antenna via 2 x BNC (F) 8 V |
| Frequency band: | UHF 863 - 865 MHz; UHF 823 - 832 MHz |
| Frequency selection: | 90 Switchable frequencys
In 10 groups with up to 10 preset frequencies each |
| Modulation: | FM |
| Frequency stability: | ± 0,0005 % |
| Range: | 80 m with line of sight |
| Switching bandwidth: | 11 MHz |
| Diversity: | Antenna diversity |
| Material: | Metal |
| Housing design: | Desktop console housing 1 U
(19") 48.3 cm rack installation (provided) |
| Dimensions: | Width: 41 cm
Depth: 26 cm
Height: 4,6 cm |
| Weight: | 2,32 kg |
| RELACART UH-222D Microphone |
| Type: | Transmitter |
| Power supply: | 3 V DC |
| Capsule type: | Dynamic |
| Polar pattern: | Super cardoid |
| Battery: | 2 x Mignon (AA) (not included) |
| Frequency range: | 120 - 16000 Hz |
| Sensitivity: | -53 dB |
| Max. SPL: | 145 dB |
| Control elements: | Gain-switch (high-mid-low); Transmitter power switch (high-low) |
| Frequency band: | UHF 863 - 865 MHz; UHF 823 - 832 MHz |
| Frequency selection: | 90 Switchable frequencys
In 10 groups with up to 10 preset frequencies each |
| Modulation: | FM |
| RF power output: | 10 mW |
| Range: | 80 m |
| Switching bandwidth: | 11 MHz |
| Switch: | On/off/mute switch |
| Material: | Aluminum |
| Dimensions: | Length: 26 cm
Diameter: Ø 5,4 cm |
| Weight: | 280 g |
