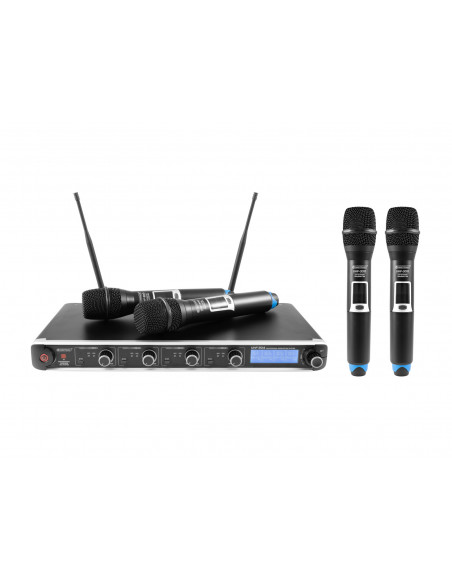

OMNITRONIC UHF-304 4-Channel Wireless Mic System 823-832/863-865MHz

Referência 13063304

298,87 €

4-channel microphone system with UHF PLL technology

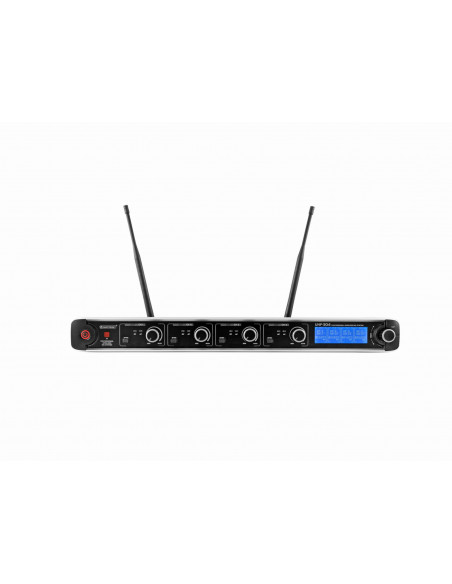

4-channel multifrequency receiver unit and 2 hand-held microphones with UHF PLL technology
93 preset channels in 10 channel groups
Easy and error-free synchronization between receiver and transmitters via infrared signal
LCDs for group, frequency and channel
LEDs for carrier and audio signal
4 separate channels with volume controls
Balanced XLR output per channel
Unbalanced 6.3 mm jack for mixed signal output
Jack cable included
Removable antennas (BNC connection)
Incl. mounting brackets for 483 mm rack installation

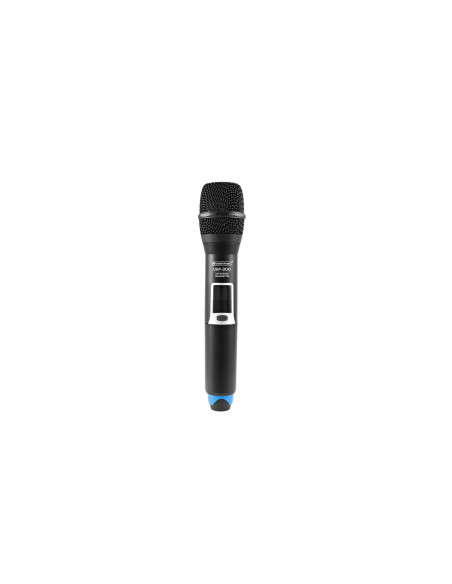

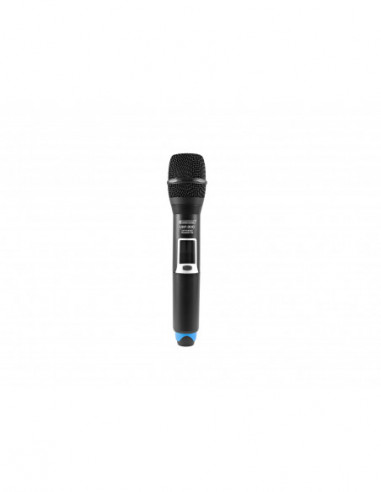

4 dynamic microphones with cardioid polar pattern and LCD for battery capacity and frequency
Matching pocket transmitter can be ordered separately
License-free and approved in large parts of the EU (please check on a country-by-country basis)
Use a operating range up to 60m

Receiver

Microphone

Type:	Wireless set
Control elements:	Power switch, level control, encoder
Frequency band:	UHF 823 - 832 MHz; UHF 863 - 865 MHz
Frequency selection:	93 Switchable frequencys
Modulation:	FM
Frequency stability:	± 0,001 %
Range:	60 m
Weight:	3,00 kg
Receiver
Power supply:	100-240 V AC, 50/60 Hz 12 V DC 500 mA
Power consumption:	6 W
Power connection:	Mains input Coaxial power connector (M) power supply cord with AC adapter (provided)
Number of channels:	4
Frequency range:	50 - 18,000 Hz
S/N ratio:	>80 dB
THD:	<0,5 % at 1 kHz
Display type:	LCD display

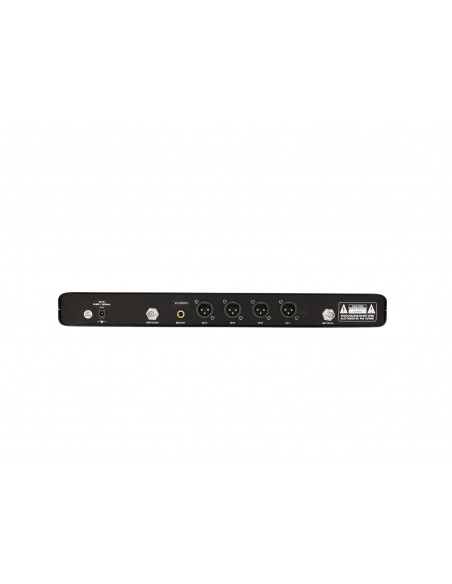

Connections:	Output: line via 1 x 6.3 mm plug (unbal.) Output: Microphone via 4 x 3-pin XLR
Material:	Metal
Housing design:	Desktop console housing 1 U (19") 48.3 cm rack installation (provided)
Microphone
Type:	Transmitter
Power supply:	3 V DC
Power connection:	Battery/battery pack
Capsule type:	Dynamic
Polar pattern:	Cardioid
Battery:	2 x Mignon (AA) (not included)
Display type:	LCD display
RF power output:	10 mW
Switch:	On/off switch
Material:	Plastic
Dimensions:	Length: 25 cm Diameter: Ø 5,1 cm
Weight:	230 g
