RELACART Set HR-31S Bodypack with...

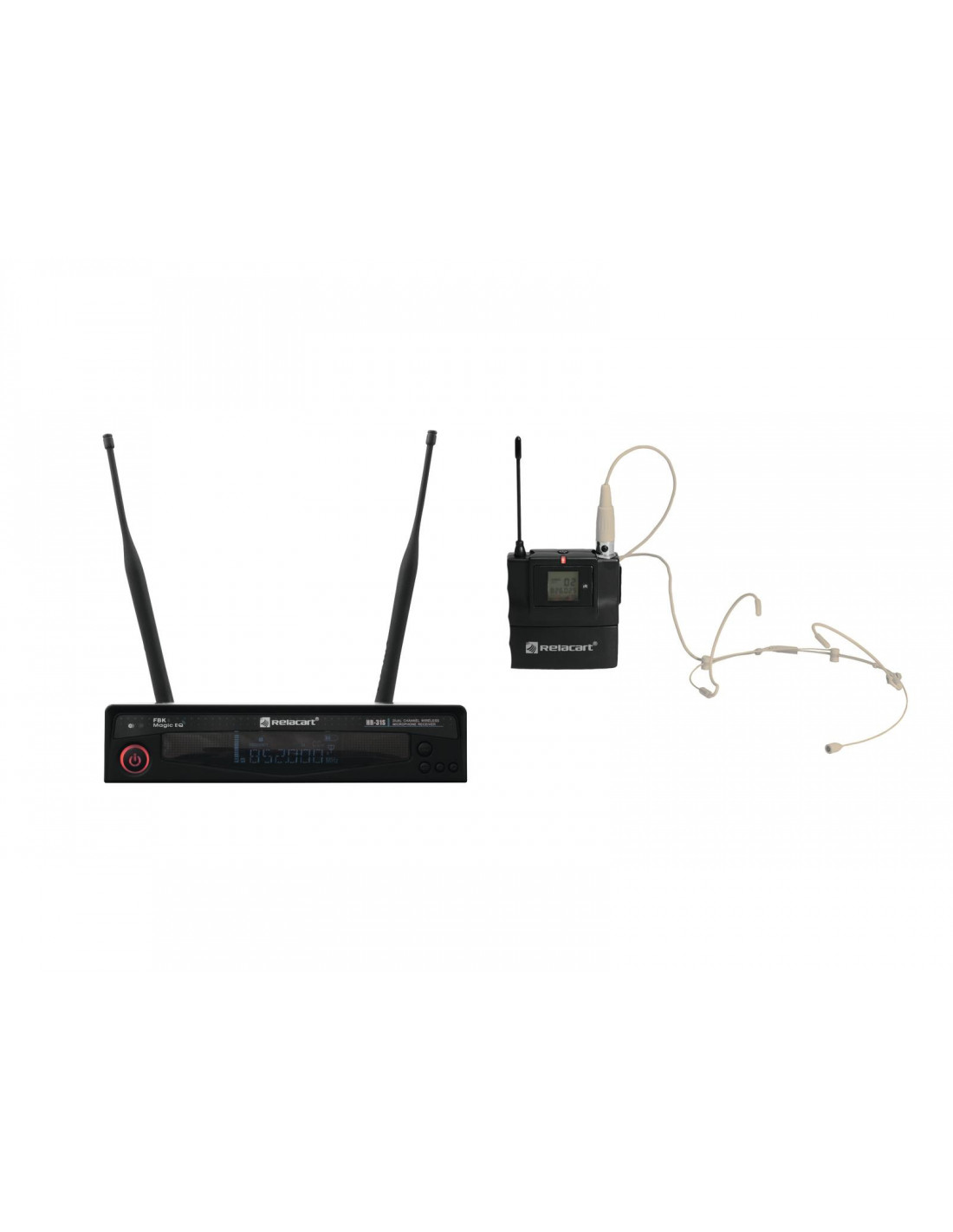

RELACART Set HR-31S Bodypack with Headset

20000341
521,95 €




Multifrequency wireless receiver with bodypack and headset

RELACART HR-31S 1-Channel True Diversity Receiver

True diversity wireless receiver with PC control

  • Multifrequency wireless receiver with high-quality true diversity reception
  • Real-time monitoring and data management using RWW PC software
  • 731-790 MHz (requires license in Germany) is lockable and offers 244 fixed frequencies (10 frequency banks with up to 25 frequencies each)
  • 823-832 MHz (license-free in Germany) offers 48 fixed frequencies (8 frequency banks with up to 7 frequencies each)
  • 292 frequencies manually adjustable in steps of 25 kHz within 68 MHz switching bandwidth
  • Parallel operation of up to 16 systems is possible without any interference
  • Pilot tone technology (PLL) and noise squelch for interference-free operation
  • Automatic frequency scan (AFS) finds interference-free channels
  • Infrared interface for easy and error-free channel transfer to transmitters via infrared signal
  • LCD for battery status of the transmitter, antenna A/B, RF reception level, AF audio level and frequency
  • Serial RS-485 interface for connecting a computer with the optional USB/RS-485 converter U485
  • Up to 32 units can be linked with network cables
  • Lock function avoids accidental changing of settings
  • XLR and 6.3 mm jack output
  • 2 detachable BNC antennas allow for use with the R-14D antenna divider
  • Matching transmitters optionally available: hand-held microphone (H-31), pocket transmitter (T-31)
  • Delivery includes practical transport bag with jack cable and power adapter
  • License-free and approved in large parts of the EU (please check on a country-by-country basis)
  • Use a operating range up to 80m with line of sight
  • The device can be connected via RJ14 (F) mounting version to the PC in connection with RELACART RWW software and the Dongle (optional)
  • Desktop console housing 1 U; (19") 48.3 cm rack installation (provided)

RELACART T-31 Bodypack for HR-31S with Headset

Bodypack transmitter with PLL multifrequency transmitter, 731-790 + 823-832 MHz

  • Pocket transmitter for receiver HR-31S
  • Durable aluminum alloy housing, applicable for touring
  • Incl. headset microphone HM-800S
  • Lavalier microphone LM-C400 optional
  • Pilot tone technology (PLL) for interference-free operation
  • 731-790 MHz (requires license in Germany) is lockable and offers 244 fixed frequencies (10 frequency banks with up to 25 frequencies each)
  • 823-832 MHz (license-free in Germany) offers 48 fixed frequencies (8 frequency banks with up to 7 frequencies each)
  • 292 frequencies manually adjustable in steps of 25 kHz within 68 MHz switching bandw
  • Infrared interface for easy and error-free synchronization with the receiver via infrared signal
  • LCD for battery status and frequency
  • Mute function
  • Switchable between microphone and instrument input
  • License-free and approved in the EU (please check on a country-by-country basis)

transmitter

  • Use a operating range up to 80m with line of sight

Microphone

  • Polar pattern: Omnidirectional


Weight:2,01 kg
RELACART HR-31S 1-Channel True Diversity Receiver
Type:Receiver
Power supply:100-240 V AC, 50/60 Hz
12 V DC
Power consumption:3,5 W
Power connection:Mains input Coaxial power connector (M) power supply cord with AC adapter (provided)
Number of channels:1
Frequency range:45 - 18000 Hz
S/N ratio:>108 dB
THD:<0,6 % at 1 kHz
Display type:Monochrome LCD display
Control elements:Menu, navigation keys
Connections:Antenna via 2 x BNC (F) 8 V
Output: line via 1 x 3-pin XLR (M) mounting version
Output: line via 1 x 6.3 mm jack socket (stereo) mounting version
Link: 2 x RJ14 (F) mounting version
Frequency band:UHF 823 - 832 MHz; UHF 731 - 790 MHz
Frequency selection:292 Switchable frequencys
In 10 groups with up to 25 preset frequencies each and
In 8 groups with up to 7 preset frequencies each
Modulation:FM
Frequency stability:± 0,0005 %
Range:80 m with line of sight
Switching bandwidth:68 MHz
Switch:On/off switch
Diversity:True diversity
Material:Metal
Color:Black
PC connect:RELACART RWW software with Dongle (optional) via RJ14 (F) mounting version
Housing design:Desktop console housing 1 U
(19") 48.3 cm rack installation (provided)
Dimensions:Width: 20 cm
Depth: 26 cm
Height: 4,3 cm
Weight:1,89 kg
RELACART T-31 Bodypack for HR-31S with Headset
Type:Bodypack with microphone
Switching bandwidth:68 MHz
Weight:120 g
Transmitter
Type:Pocket transmitter
Power supply:1,5 V DC
Battery:1 x Mignon (AA) (not included)
Frequency range:45 - 18000 Hz
Connections:Input: Microphone via 1 x Mini XLR (M) 4-pin mounting version 5 V
Frequency band:UHF 731 - 790 MHz; UHF 823 - 832 MHz
Frequency selection:292 Switchable frequencys
In 10 groups with up to 25 preset frequencies each and
In 8 groups with up to 7 preset frequencies each
Modulation:FM
RF power output:50 mW
Range:80 m with line of sight
Switch:Mute control; on/off switch
Material:Aluminum
Color:Black
Dimensions:Width: 6,3 cm
Depth: 2 cm
Height: 7,1 cm
Microphone
Type:Headset
Power supply:2-10 V DC
Power connection:Mini XLR (F) 4-pin
Cable length:1 m
Capsule type:Condenser
Size: Ø 5 mm x 6 mm
Polar pattern:Omnidirectional
Sensitivity:-47 dB
Impedance:2200 Ohm
Material:Metal
Color:Skin-colored
Weight:20 g
