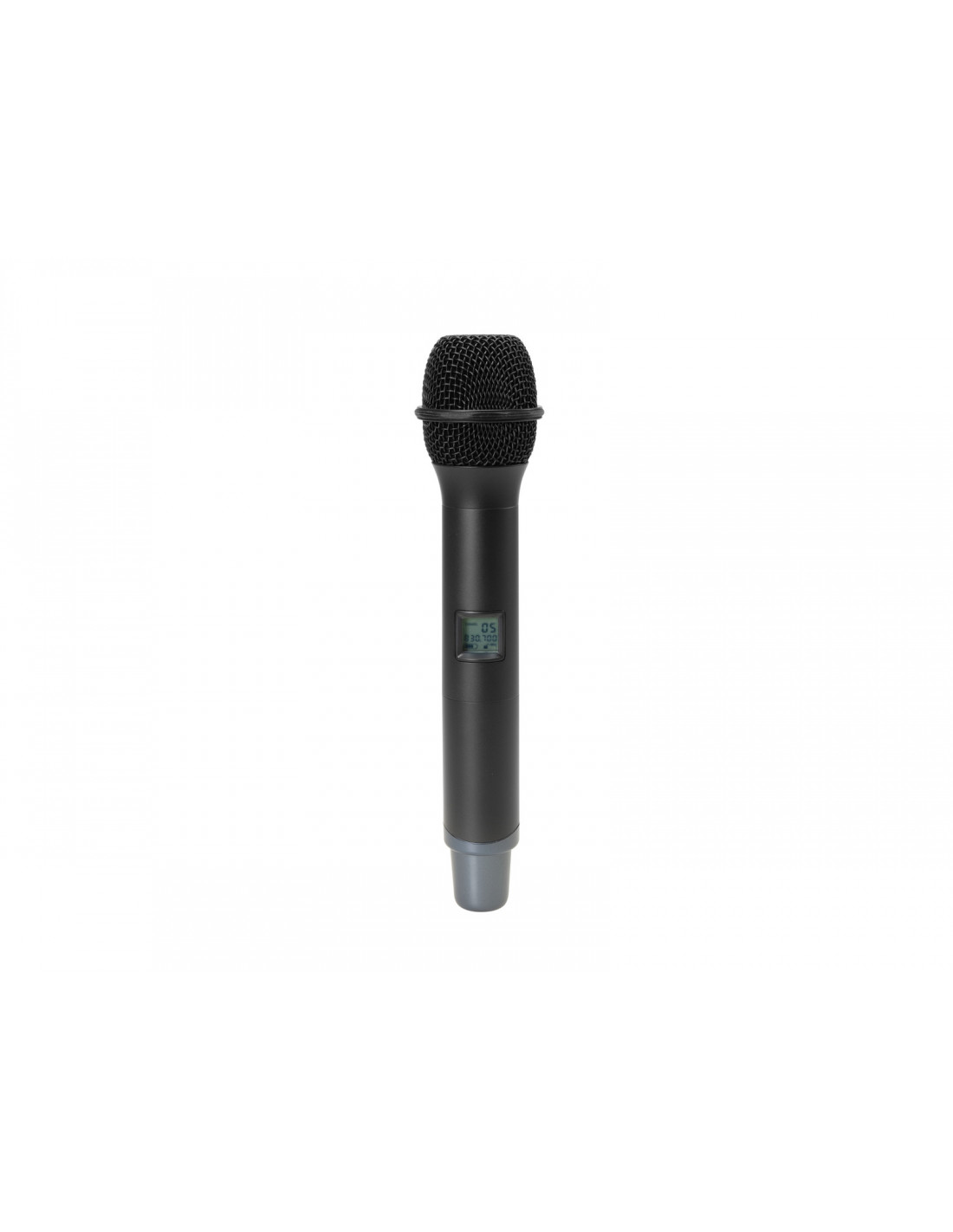

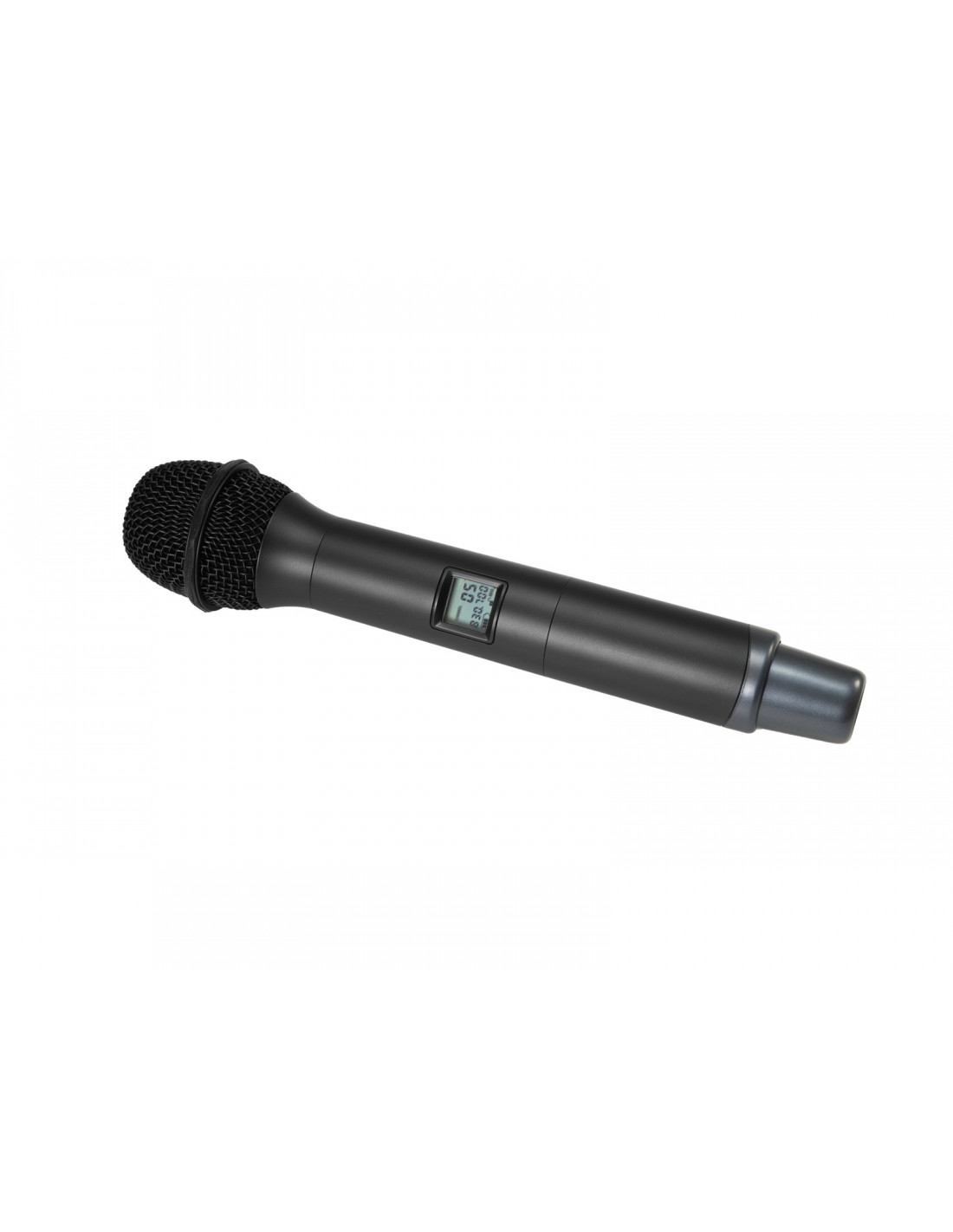

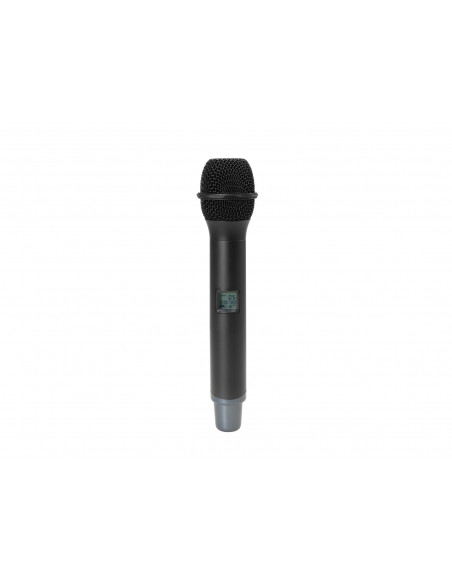

RELACART UH-1 UHF Handheld Microphone for WAM-402

Referência 13055228

135,71 €

Microphone with PLL multifrequency transmitter for WAM-402, 823-832 + 863-865 MHz

Dynamic hand-held microphone with UHF pilot tone technology (PLL)
Ergonomic aluminum alloy housing, applicable for touring
Matches receiver WAM-402
2 license-free frequency ranges: 823-832 MHz (Duplex Gap) and 863-865 MHz

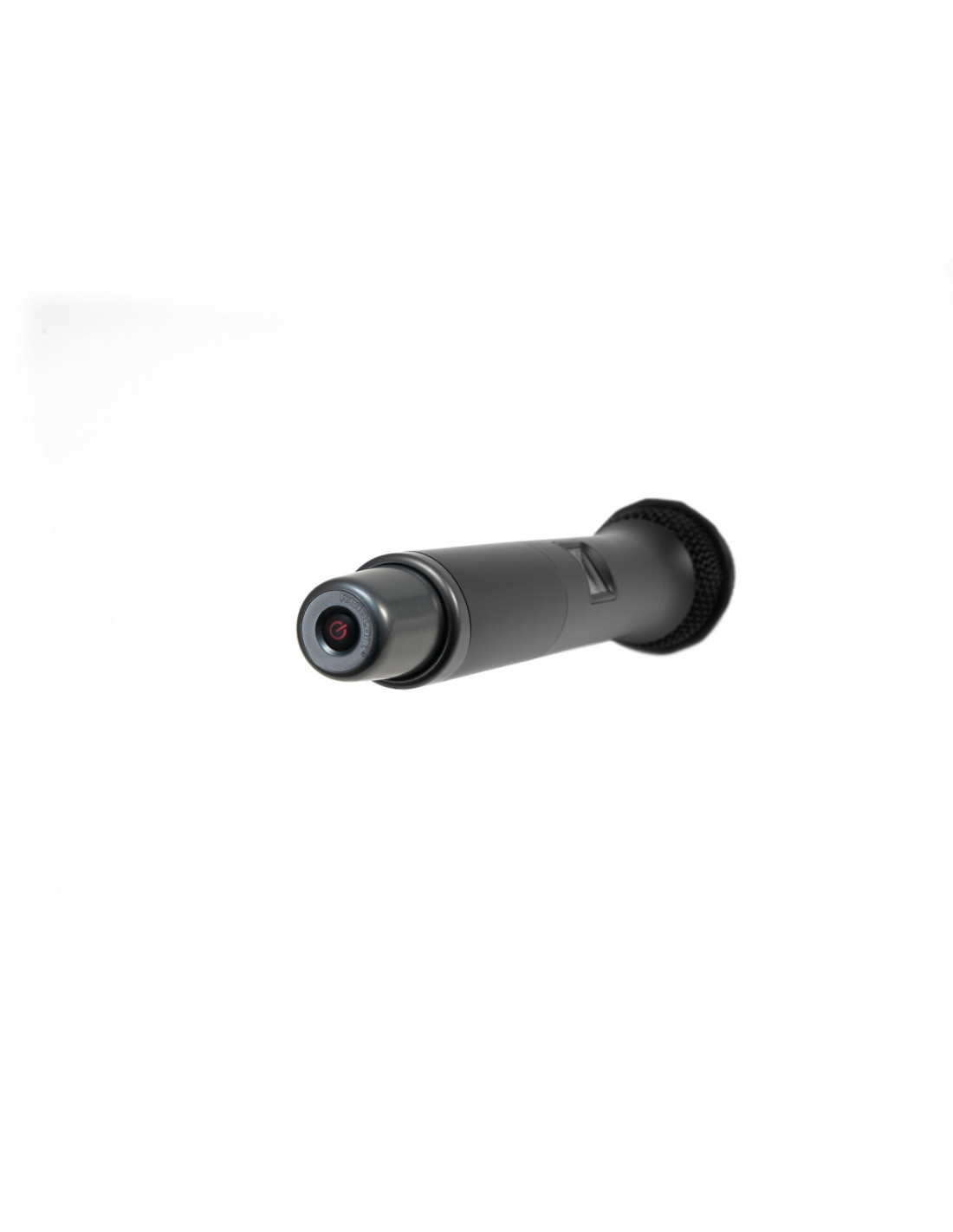

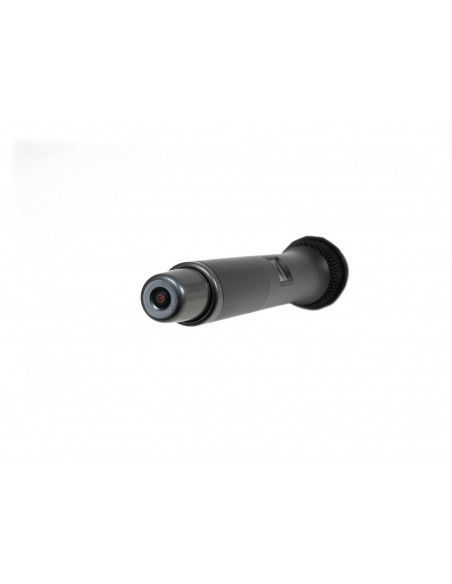

Infrared interface for easy and error-free synchronization with the receiver via infrared signal
OLED display for battery status and frequency
RF output power Hi/Low adjustable
Gain level Hi/Mid/Low adjustable
License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)
Polar pattern: Cardioid
Use a operating range up to 60m

Type:	Transmitter
Power supply:	3 V DC
Capsule type:	Dynamic
Polar pattern:	Cardioid

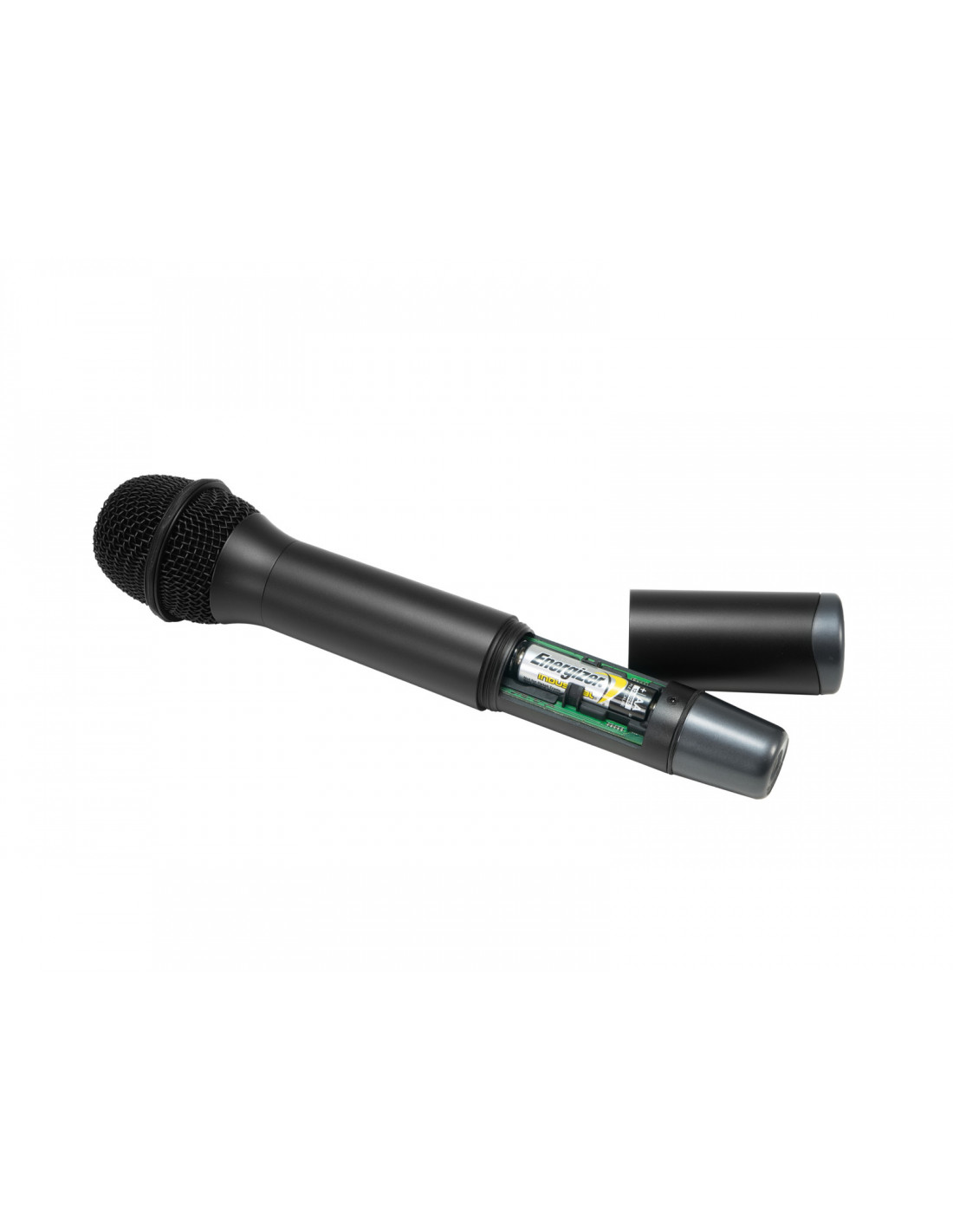

Battery:	2 x Mignon (AA) (not included)
Control elements:	Gain-switch (high-mid-low), Transmitter power switch (high-low)
Frequency band:	UHF 823 - 832 MHz; UHF 863 - 865 MHz
Frequency selection:	90 Switchable frequencys In 10 groups with up to 10 preset frequencies each
Modulation:	FM
RF power output:	10 mW
Range:	60 m
Switching bandwidth:	11 MHz
Switch:	On/off/mute switch
Material:	Aluminum
Color:	Black
Dimensions:	Length: 26,5 cm Diameter: Ø 5,6 cm
Weight:	310 g
