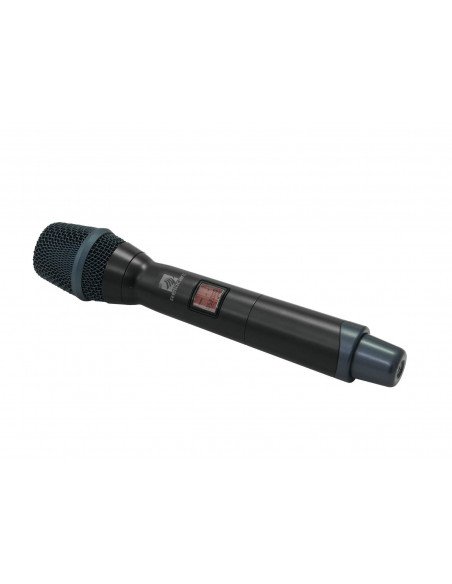

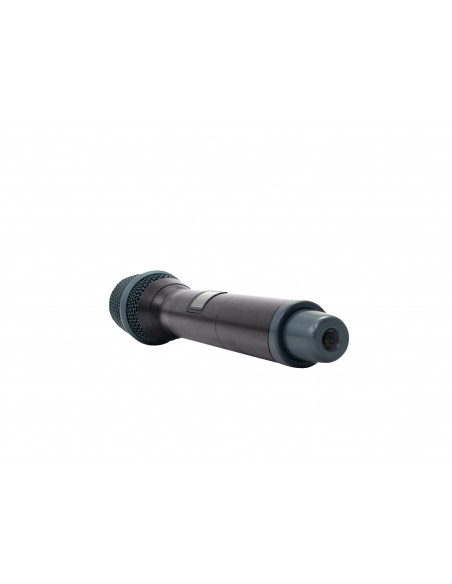

Hand-held microphone with PLL multifrequency transmitter
- Dynamic hand-held microphone with UHF pilot tone technology (PLL)
- Ergonomic aluminum alloy housing, applicable for touring
- Matches receiver HR-31S
- 731-790 MHz (requires license in Germany) is lockable and offers 244 fixed frequencies (10 frequency banks with up to 25 frequencies each)
- 823-832 MHz (license-free in Germany) offers 48 fixed frequencies (8 frequency banks with up to 7 frequencies each)
- 292 frequencies manually adjustable in steps of 25 kHz within 68 MHz switching bandwidth
- Infrared interface for easy and error-free synchronization with the receiver via infrared signal

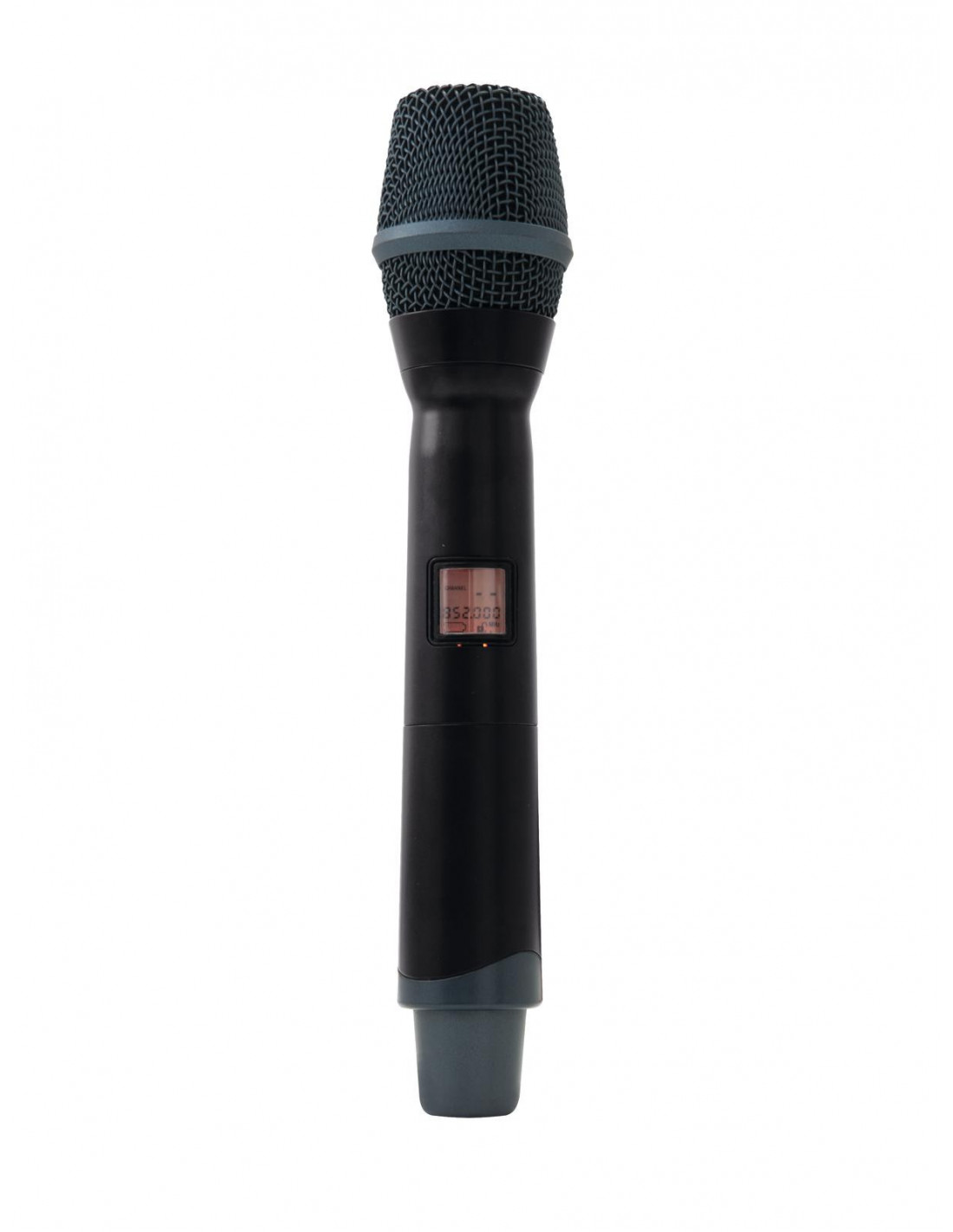

- OLED display for battery status, frequency and channel
- Mute function
- RF output power Hi/Low adjustable
- Gain level Hi/Mid/Low adjustable
- Directly compatible with Shure's SM58 capsule
- Long battery life for up to 15 hours continuous operation
- License-free and approved in large parts of the EU (please check on a country-by-country basis)
- Polar pattern: Cardioid
- Use a operating range up to 80m with line of sight
| Type: | Transmitter |
| Power supply: | 3 V DC |
| Power connection: | Battery/battery pack |
| Capsule type: | Dynamic |
| Polar pattern: | Cardioid |

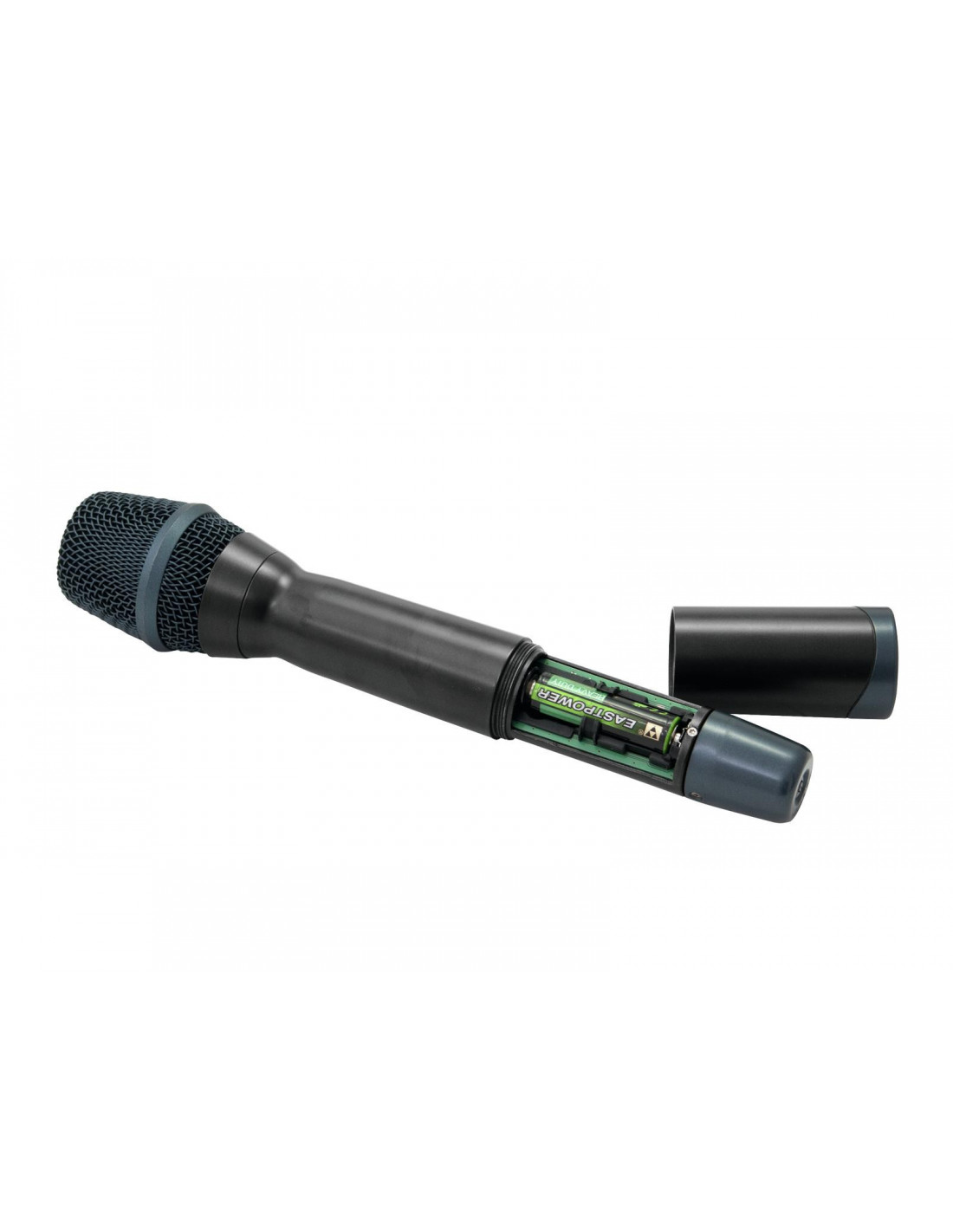

| Battery: | 2 x Mignon (AA) (not included) |
| Frequency range: | 100 - 18000 Hz |
| Max. SPL: | 145 dB |
| Display type: | OLED display |
| Frequency band: | UHF 823 - 832 MHz; UHF 731 - 790 MHz |
| Frequency selection: | 292 Switchable frequencys
In 10 groups with up to 25 preset frequencies each and
In 8 groups with up to 7 preset frequencies each |
| Modulation: | FM |
| RF power output: | 10 mW (LO); 40 mW (HI) |
| Range: | 80 m with line of sight |
| Switching bandwidth: | 68 MHz |
| Switch: | On/off/mute switch |
| Material: | Aluminum |
| Color: | Black |
| Dimensions: | Length: 26,5 cm
Diameter: Ø 5,4 cm |
| Weight: | 290 g |
