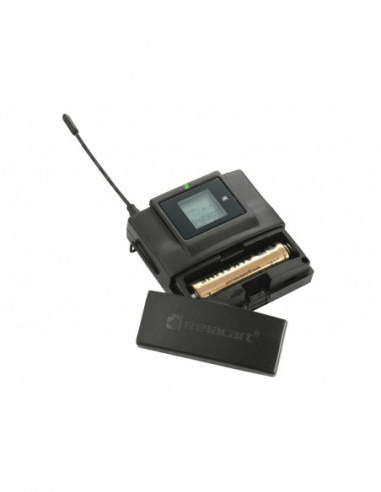

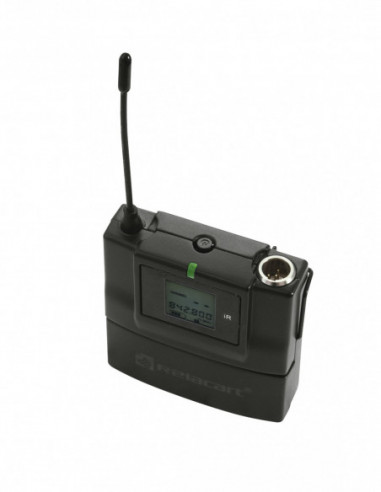

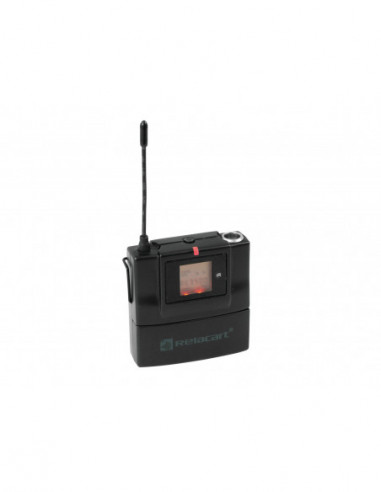

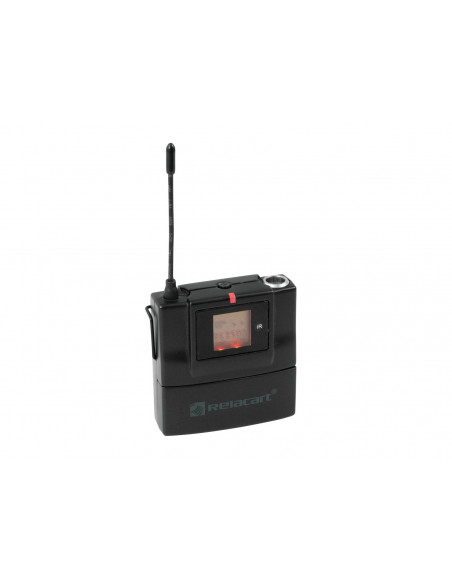

Bodypack transmitter with PLL multifrequency transmitter, 731-790 + 823-832 MHz
- Pocket transmitter for receiver HR-31S
- Durable aluminum alloy housing, applicable for touring
- Incl. headset microphone HM-800S
- Lavalier microphone LM-C400 optional
- Pilot tone technology (PLL) for interference-free operation
- 731-790 MHz (requires license in Germany) is lockable and offers 244 fixed frequencies (10 frequency banks with up to 25 frequencies each)
- 823-832 MHz (license-free in Germany) offers 48 fixed frequencies (8 frequency banks with up to 7 frequencies each)
- 292 frequencies manually adjustable in steps of 25 kHz within 68 MHz switching bandw
- Infrared interface for easy and error-free synchronization with the receiver via infrared signal
- LCD for battery status and frequency
- Mute function
- Switchable between microphone and instrument input
- License-free and approved in the EU (please check on a country-by-country basis)
transmitter
- Use a operating range up to 80m with line of sight
Microphone
- Polar pattern: Omnidirectional
| Type: | Bodypack with microphone |
| Switching bandwidth: | 68 MHz |
| Weight: | 120 g |
| Transmitter |
| Type: | Pocket transmitter |
| Power supply: | 1,5 V DC |
| Battery: | 1 x Mignon (AA) (not included) |
| Frequency range: | 45 - 18000 Hz |
| Connections: | Input: Microphone via 1 x Mini XLR (M) 4-pin mounting version 5 V |
| Frequency band: | UHF 731 - 790 MHz; UHF 823 - 832 MHz |
| Frequency selection: | 292 Switchable frequencys
In 10 groups with up to 25 preset frequencies each and
In 8 groups with up to 7 preset frequencies each |
| Modulation: | FM |
| RF power output: | 50 mW |
| Range: | 80 m with line of sight |
| Switch: | Mute control; on/off switch |
| Material: | Aluminum |
| Color: | Black |
| Dimensions: | Width: 6,3 cm
Depth: 2 cm
Height: 7,1 cm |
| Microphone |
| Type: | Headset |
| Power supply: | 2-10 V DC |
| Power connection: | Mini XLR (F) 4-pin |
| Cable length: | 1 m |
| Capsule type: | Condenser
Size: Ø 5 mm x 6 mm |
| Polar pattern: | Omnidirectional |
| Sensitivity: | -47 dB |
| Impedance: | 2200 Ohm |
| Material: | Metal |
| Color: | Skin-colored |
| Weight: | 20 g |
