- 210 SUBWOOFER: Equipment: 2x 12" woofer, bluetooth receiver, SNR: >100 dB, 5 DSP presets, connections: 2x XLR/jack combo input, 2x XLR line output, 2x speaker twist output, cabinet: 15 mm plywood with structure varnish, 2x M20 speaker flange, dimensions: 33 x 66 x 56 cm, weight: 26,7 kg
- 104 TOP UNIT: Equipment: 1x 4" woofer, coaxial 1" tweeter, angle of radiation: 90°, housing: 12 mm plywood with structure varnish, dimensions: each 23 x 13 x 16.5 cm, weight: each 3.6 kg
- DISTANCE ROD: steel distance rod, screw version with M20 screw thread, height adjustable from 75-135 cm, max. load capacity: 40 kg
- SPEAKER STAND: steel speaker stand, safety splint with nylon strap, extendable from approx. 120 - 193 cm, load capacity: max. 50 kg
Active PA system with variable tilt of the tweeters!
The V-Array series from Pronomic offers professional active systems for a wide range of applications. The active subwoofers supply the passive top speakers, which can be adjusted in the inclination as a special feature. Due to the variable arrangement, you can provide your audience with targeted sound. From solo entertainers to event technicians, there is a suitable setup for every need.

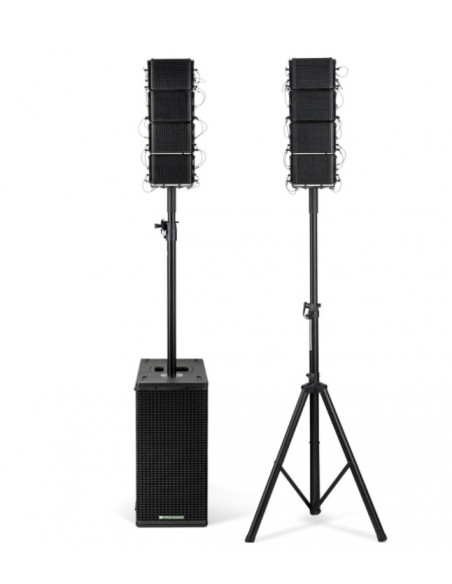

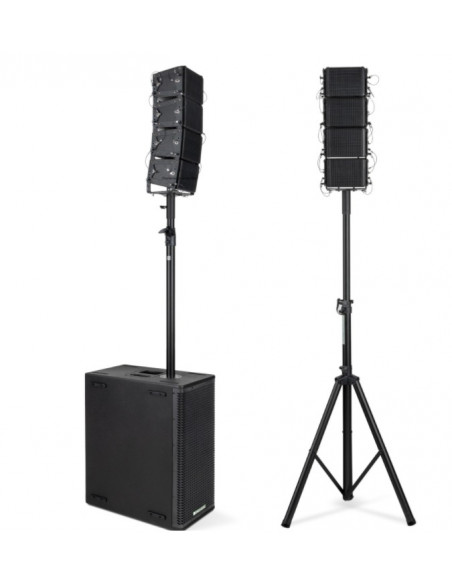

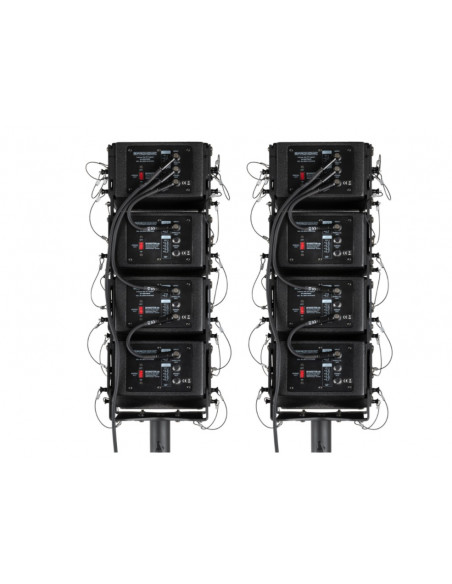

V-Array Medium Set
The Medium Set consists of a subwoofer and 8 top units. With the distance rod and the speaker stand, a classic 2.1 configuration can be implemented. All cables for connecting the individual components are included in the delivery.

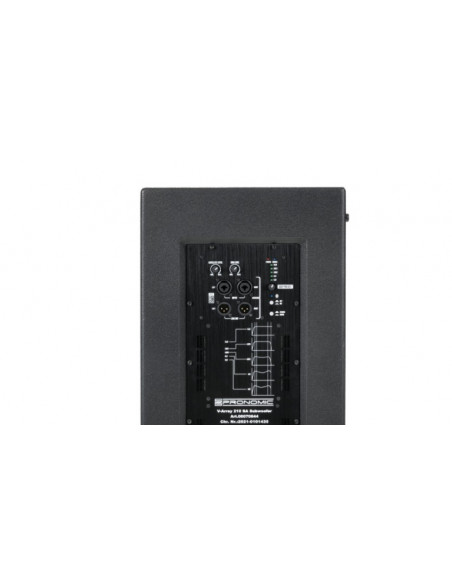

210 SA Subwoofer
The subwoofer with a 15 mm plywood housing has two speakers with a diameter of 10" (25.4 cm) each, which are driven by a Class D power amplifier. The load outputs for the tops are in speaker-twist format, and they can be supplied with either a stereo or a mono signal. For quick adaptation to the current application, the subwoofer has 5 DSP presets and with the built-in Bluetooth® receiver, the break music can even be played wirelessly.

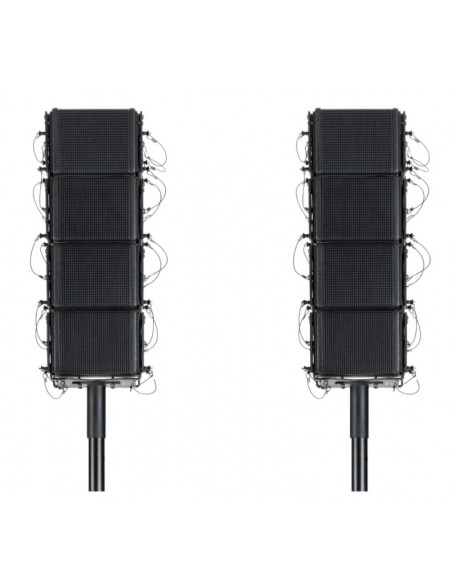

104 TP Top units

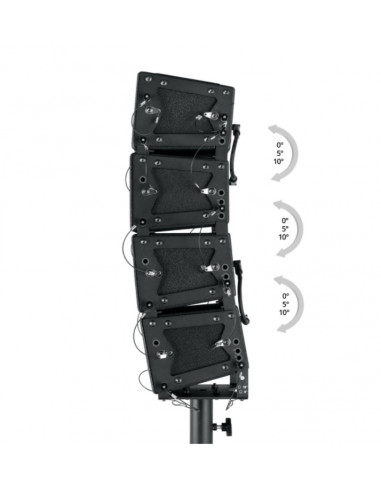

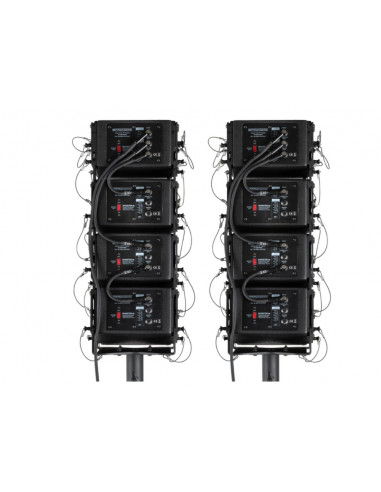

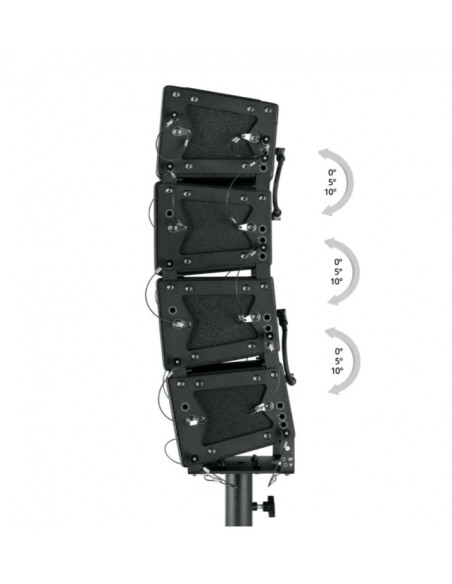

The passive 2-way tops each have an 4" (10 cm) membrane with coaxially arranged 1" tweeters. The special highlight of the Pronomic V-Arrays: All tops have a connection mechanism that allows you to connect several elements together and adjust their angle (in 5° steps) to each other. The appropriate cabling for your configuration is listed in the user manual.
Convincing sound and professional features!
