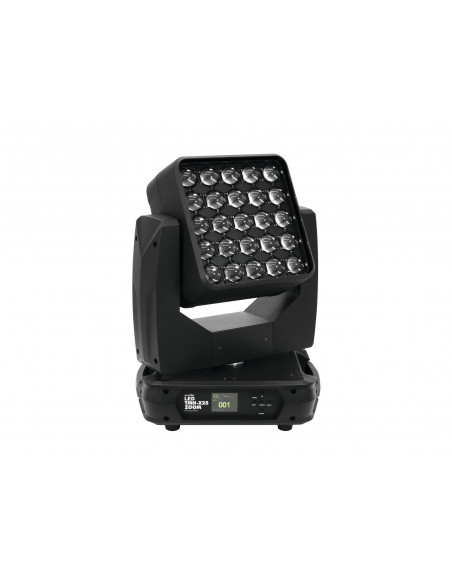

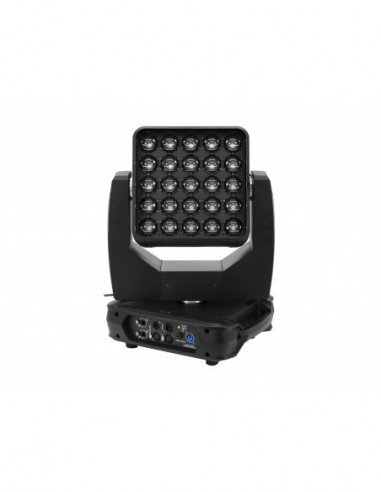

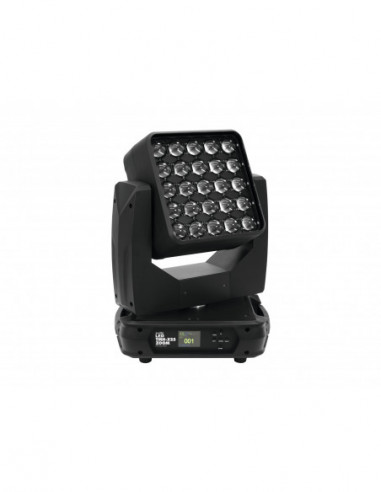

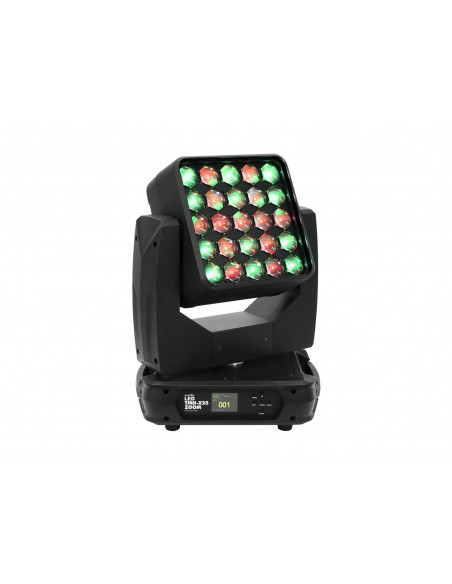

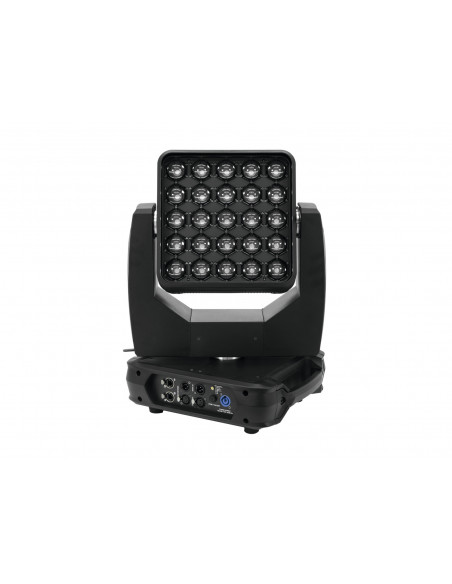

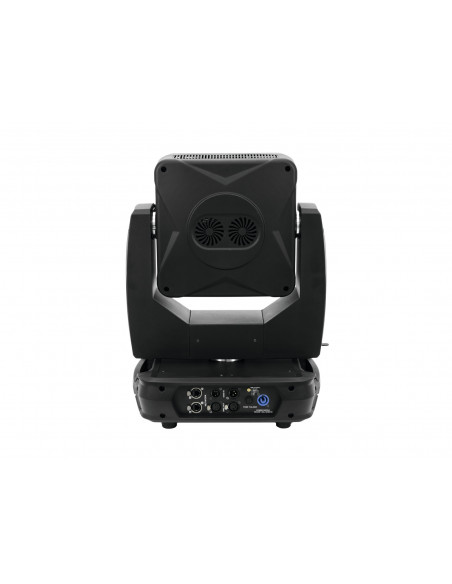

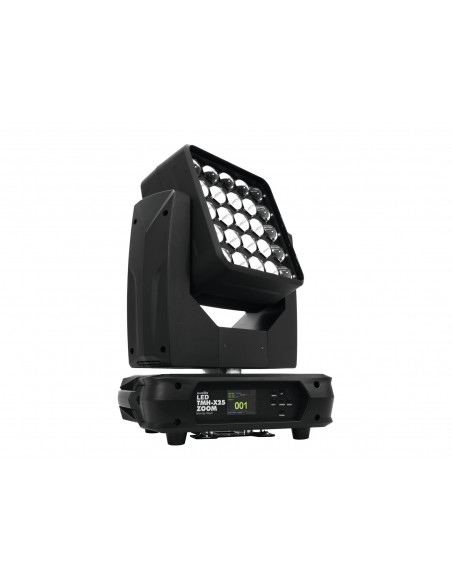

5x5 Matrix Panel, bright 12 W RGBW LEDs, large zoom
- Quick and easy control via Art-Net
- Infinity function for unlimited PAN and TILT movement
- Each LED can be controlled individually
- Motorized zoom with 7.5-69° beam angle
- Stepless color blend, color change, preset colors, figure and letter patterns, dimmer and strobe effect
- Various dimmer curves with adjustable response
- Automatic position correction
- Exact positioning via 16 bit PAN/TILT movement resolution
- PAN angle switchable between 540° and 630°
- Control panel with LC display for easy configuration
- Ethernet connectors
- Mains input and output for power linking up to 8 units
- LED: 25 x COB (chip-on-board) 12 W 4in1 QCL RGBW (homogenous color mix)
- Can be operated in 13; 24; 88; 113 CH mode
- The device is cooled by cooling fan
- Controlling by DMX; stand-alone
- Preprogrammed in LED PC-Control 512
- Flicker-free projection
- Effect: Single Beam
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 450 W |
| IP classification: | IP20 |
| Power connection: | Mains input P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Lamp type: | LED lamp |
| LED: | 25 x COB (chip-on-board) 12 W 4in1 QCL RGBW (homogenous color mix) |
| Max. TILT movement: | Exact positioning (16 bit resolution) plus infinity Auto position correction (feedback) |
| Max. PAN movement: | Exact positioning (16 bit resolution) 540° Positioning switchable to 630° plus infinity Auto position correction (feedback) |
| Flash rate: | 0 - 20 Hz |
| Equipment: | Zoom motor-driven |
| DMX channels: | 13; 24; 88; 113 |
| DMX input: | 1 x 3-pin XLR (M) mounting version
1 x 5-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version
1 x 5-pin XLR (F) mounting version |
| Network connection: | Protocol: ArtNet 3 via 2x RJ-45 E-Con (F) mounting version |
| Cooling: | Cooling fan |
| Control: | DMX; stand-alone; LED PC-Control 512 |
| Beam angle: | 7,5 - 69° |
| Beam angle (1/2 peak): | 7,5 - 60° |
| Beam angle (1/10 peak): | 11 - 69° |
| Illuminance in Lux (lx): | Narrow red (R) 3m: 4095 lx, 6m: 1114 lx
Wide red (R) 3m: 238 lx, 6m: 66 lx
Narrow green (G) 3m: 8135 lx, 6m: 2314 lx
Wide green (G) 3m: 493 lx, 6m: 140 lx
Narrow blue (B) 3m: 1638 lx, 6m: 476 lx
Wide blue (B) 3m: 102 lx, 6m: 30 lx
Narrow cold white (CW) 3m: 10691 lx, 6m: 3011 lx
Wide cold white (CW) 3m: 626 lx, 6m: 179 lx
Narrow all 3m: 22665 lx, 6m: 6337 lx
Wide all 3m: 1345 lx, 6m: 380 lx |
| Housing color: | Black |
| Dimensions: | Width: 41,5 cm
Depth: 31 cm
Height: 53,5 cm |
| Weight: | 18,40 kg |
| Noise classification: | Class 3 (clearly perceptible sounds) |
| Legal specifications |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
