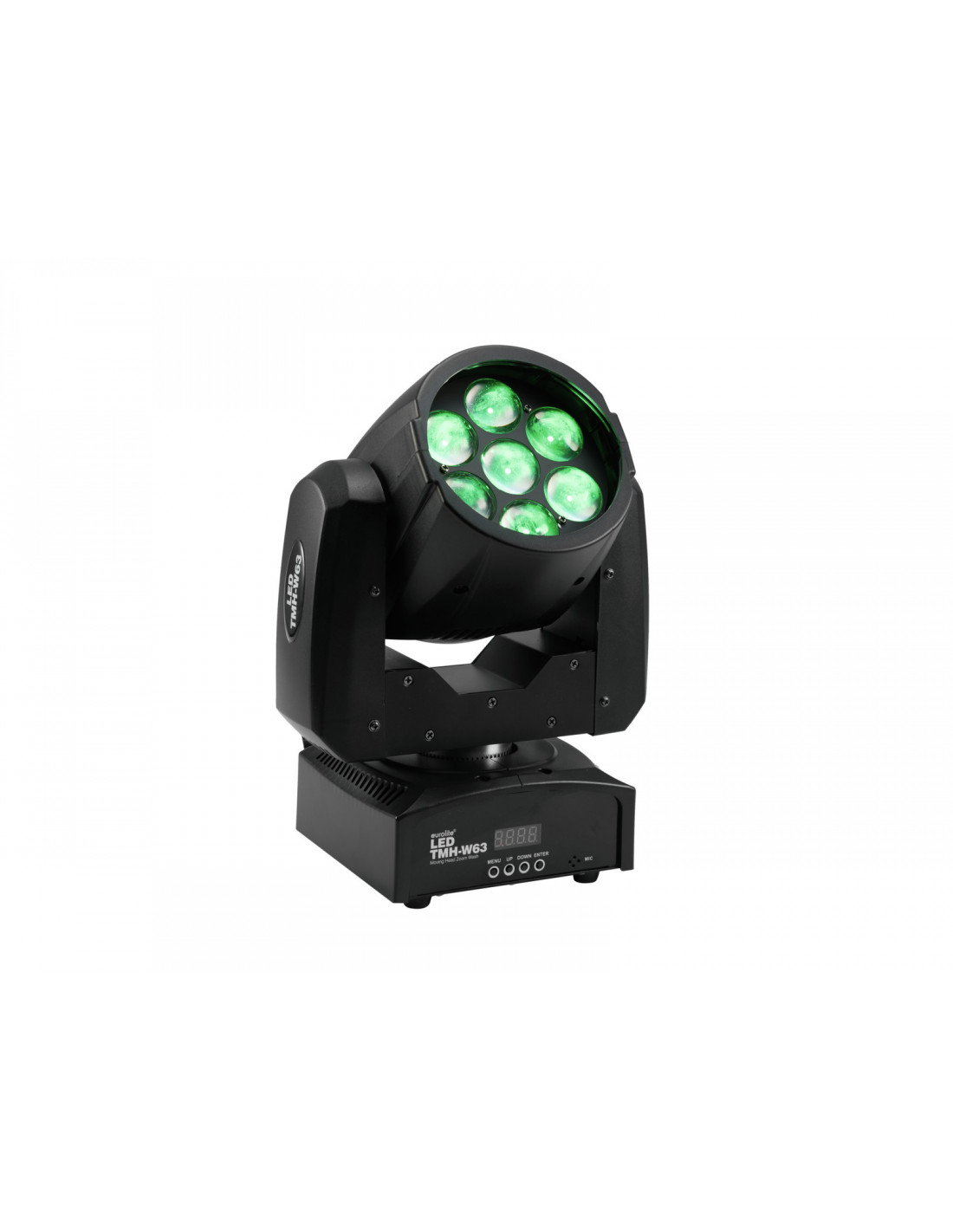

Washlight with 7 intense 9 W LEDs (4in1) and motorized zoom
- 7 high-power 9 W RGBW LEDs (4in1)
- Positioning within 540° PAN and 220° TILT
- Stepless RGBW color mixture
- Built-in auto and music show programs
- Motion macros
- Strobe effect with adjustable speed
- Random strobe effect
- Electronic dimmer (0-100%)
- Motorized zoom with 6-29° beam angle
- Supports QuickDMX - the wireless DMX system from Eurolite
- Built-in phantom-powered USB port for QuickDMX, CRMX and WDMX receivers (optional)
- Exact positioning via 16-bit PAN/TILT movement resolution
- Control panel with LED display for easy configuration
- Additional rubber feet protect the device when positioned on the floor
- LED: 7 x high-power 9 W 4in1 QCL RGBW (homogenous color mix)
- Can be operated in 15 CH mode
- The device is cooled by cooling fan
- Controlling by stand-alone; DMX; Master/slave function; Sound to light via Microphone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Preprogrammed in Light´J; EASY SHOW
- Flicker-free projection
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 100 W |
| IP classification: | IP20 |
| Power connection: | Mains input P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Fuse: | 5 x 20 mm, T 2 A Fuse replaceable |
| Lamp type: | LED lamp |
| LED: | 7 x high-power 9 W 4in1 QCL RGBW (homogenous color mix) |
| Max. TILT movement: | Exact positioning (16 bit resolution) 220° |
| Max. PAN movement: | Exact positioning (16 bit resolution) 540° |
| Equipment: | Zoom motor-driven |
| DMX channels: | 15 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | Stand-alone; Light´J; DMX; Master/slave function; Sound to light via Microphone; EASY SHOW; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Beam angle: | 6 - 29° |
| Beam angle (1/2 peak): | 6 - 18° |
| Beam angle (1/10 peak): | 11 - 29° |
| Illuminance in Lux (lx): | Narrow red (R) 1m: 7863 lx, 3m: 1074 lx, 6m: 269 lx
Narrow green (G) 1m: 15691 lx, 3m: 2179 lx, 6m: 549 lx
Narrow blue (B) 1m: 2497 lx, 3m: 406 lx, 6m: 103 lx
Narrow cold white (CW) 1m: 17115 lx, 3m: 2398 lx, 6m: 605 lx
Narrow all 1m: 40258 lx, 3m: 5714 lx, 6m: 1432 lx
Wide red (R) 1m: 1586 lx, 3m: 187 lx, 6m: 49 lx
Wide green (G) 1m: 3083 lx, 3m: 385 lx, 6m: 101 lx
Wide blue (B) 1m: 568 lx, 3m: 73 lx, 6m: 20 lx
Wide cold white (CW) 1m: 3372 lx, 3m: 407 lx, 6m: 106 lx
Wide all 1m: 8103 lx, 3m: 994 lx, 6m: 257 lx |
| Housing color: | Black |
| Display type: | 4 digits 7-segment LED display |
| Dimensions: | Width: 21,0 cm
Depth: 16,0 cm
Height: 29,5 cm |
| Weight: | 4,17 kg |
| Noise classification: | Class 2 (slight noise) |
| Legal specifications |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
