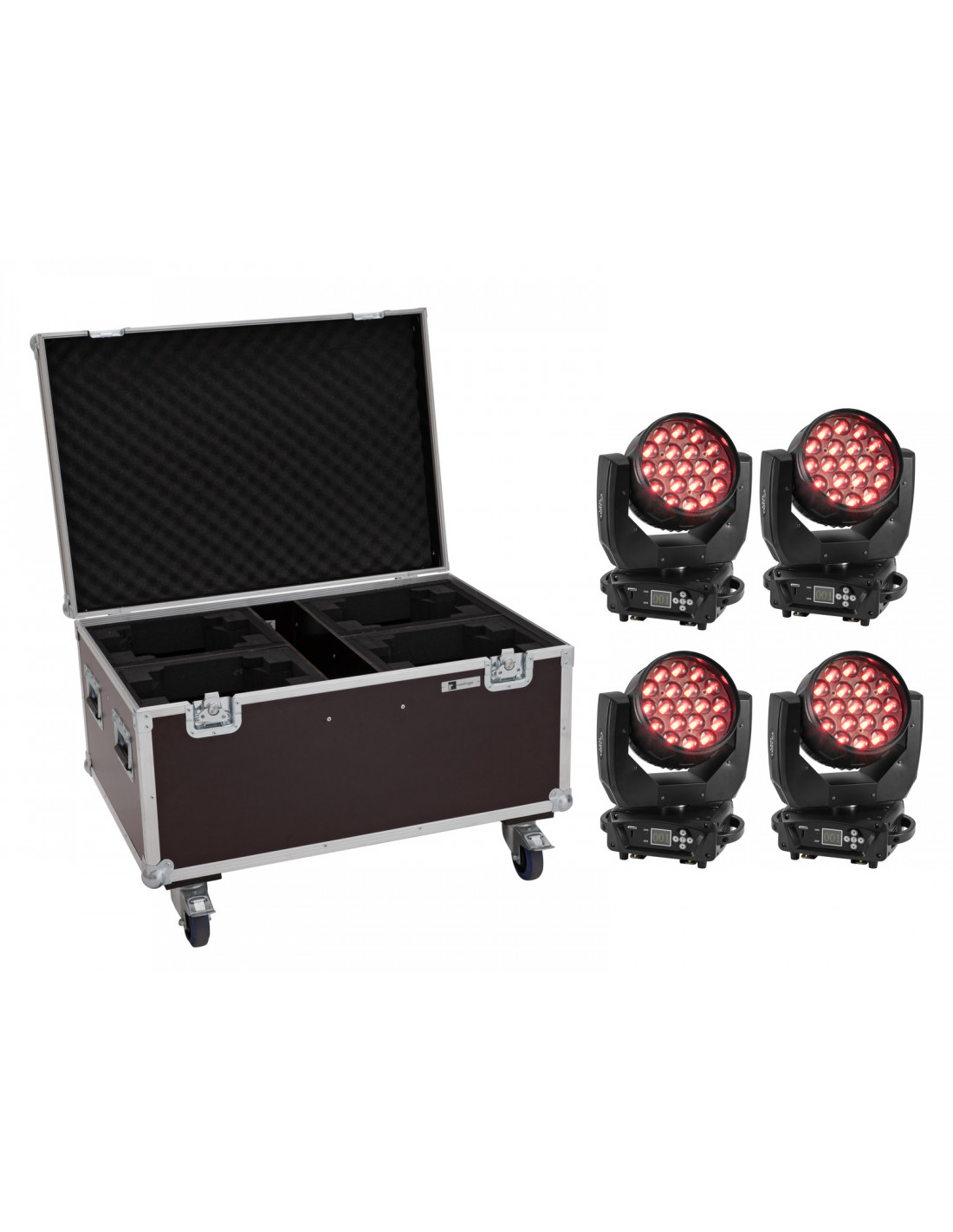

4x washlight with 19 intense 15 W LEDs (4in1) and motorized zoom incl. PRO flightcase
EUROLITE LED TMH-X4 Moving Head Wash Zoom
Washlight with 19 intense 15 W LEDs (4in1) and motorized zoom
- 19 high-power 15 W RGBW LEDs (4in1)
- Subdivided into 3 segments, which can be controlled individually via DMX
- Positioning within 540° PAN and 270° TILT
- Stepless color blend, color change, preset colors, dimmer and strobe effect
- Built-in auto and music show programs
- Strobe effect with adjustable speed
- Random strobe effect
- Electronic dimmer (0-100%)
- Motorized zoom with 1-40° beam angle
- Supports QuickDMX - the wireless DMX system from Eurolite
- Built-in phantom-powered USB port for QuickDMX, CRMX and WDMX receivers (optional)
- Automatic position correction
- Exact positioning via 16-bit PAN/TILT movement resolution
- Control panel with color LC display for easy configuration
- Mains input and output for power linking up to 8 units
- LED: 19 x COB (chip-on-board) 15 W 4in1 QCL RGBW (homogenous color mix)
- Can be operated in 16; 24 CH mode
- The device is cooled by temperature-controlled fan at the Head; cooling fan at the Base
- Controlling by stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Preprogrammed in Light´J; LED PC-Control 512; EASY SHOW
- Flicker-free projection
ROADINGER Flightcase 4x LED TMH-X4
PRO flightcase for 4x LED TMH-X4
- Compartments upholstered with foam
- High-quality workmanship with birch multiplex, dark brown laminated
- Additional accessory compartment
- Aluminum profile frames with rounded edges
- Three-leg steel ball corners
- 4 castors Ø100 mm, 2 of which with locking brakes
- 2 high-quality butterfly locks
- 2 chrome tip-over locks
- 4 chrome case handles
- Fitted for four devices
- Trademark hardware
- High-quality workmanship with birch multiplex 7 mm, dark brown, laminated
- With castors
| Weight: | 57,80 kg |
| EUROLITE LED TMH-X4 Moving Head Wash Zoom |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 225 W |
| IP classification: | IP20 |
| Power connection: | Mains input P-Con (blue), mounting version power supply cord with safety plug |
| Power output: | P-Con (gray), mounting version |
| Fuse: | 5 x 20 mm, T 2 A Fuse replaceable |
| Lamp type: | LED lamp |
| LED: | 19 x COB (chip-on-board) 15 W 4in1 QCL RGBW (homogenous color mix) |
| Max. TILT movement: | Exact positioning (16 bit resolution) 270° Auto position correction (feedback) |
| Max. PAN movement: | Exact positioning (16 bit resolution) 630° Auto position correction (feedback) |
| Equipment: | Zoom motor-driven |
| DMX channels: | 16; 24 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Temperature-controlled fan at the Head
Cooling fan at the Base |
| Control: | Stand-alone; DMX; Sound to light via Microphone; Master/slave function; Light´J; LED PC-Control 512; EASY SHOW; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Beam angle: | 1 - 40° |
| Beam angle (1/2 peak): | 1 - 25° |
| Beam angle (1/10 peak): | 8 - 40° |
| Illuminance in Lux (lx): | Narrow red (R) 3m: 2779 lx, 6m: 763 lx
Narrow green (G) 3m: 7893 lx, 6m: 1841 lx
Narrow blue (B) 3m: 1468 lx, 6m: 390 lx
Narrow cold white (CW) 3m: 9558 lx, 6m: 2468 lx
Narrow all 3m: 19553 lx, 6m: 5001 lx
Wide red (R) 3m: 272 lx, 6m: 73 lx
Wide green (G) 3m: 583 lx, 6m: 160 lx
Wide blue (B) 3m: 117 lx, 6m: 34 lx
Wide cold white (CW) 3m: 740 lx, 6m: 211 lx
Wide all 3m: 1568 lx, 6m: 439 lx |
| Housing color: | Black |
| Display type: | Multicolor LCD display |
| Dimensions: | Width: 30,5 cm
Depth: 20,0 cm
Height: 40,0 cm |
| Weight: | 8,20 kg |
| Noise classification: | Class 3 (clearly perceptible sounds) |
| Legal specifications |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
| ROADINGER Flightcase 4x LED TMH-X4 |
| Maximum load: | 100 kg |
| Transport aid: | Castors |
| Material: | Birch multiplex, 7 mm |
| Color: | Dark brown, laminated |
| Device compartment: | 32 cm x 24 cm x 40 cm |
| Accessory compartment: | 10 cm x 57 cm x 40 cm |
| Inside dimensions: | 84 cm x 57 cm x 40 cm |
| Dimensions: | Width: 88 cm
Depth: 61 cm
Height: 58,5 cm |
| Weight: | 25,00 kg |
