Fireproof version design of ceramic terminal, thermal fuse, fire dome and fire-resistant cable
Built-in 100v/70v transformer
In-ceiling type loudspeaker
5”+1.5" coaxial speaker unit
Power taps 3W & 6W @100V
With metal fire dome
Aluminum grille, metal baffle and fire dome
Paint in white color

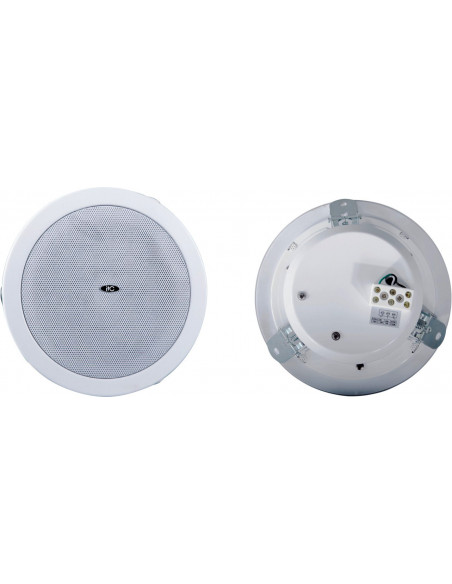

The T-105CA is a coaxial fireproof ceiling speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.
The built-in 5”+1.5" coaxial speaker driver is designed of wide frequency response 110-16kHz, the multiple power taps 3W & 6W are helpful for different applications varies from room size and ambient noise surroundings. The aluminum grille, metal baffle and fire dome are painted in attractive white color and a fire dome metal can is supplied. Its spring clamp makes the easy and secure installation.
It is ideal choice for industrial and commercial applications in hotel, school, office and factory where background music and paging is needed.
Fireproof design features of this speaker include ceramic terminal, thermal fuse, fire dome and fire-resistant cable.
|
Model |
T-105CA |
|
Power Taps @100V |
3W, 6W |
|
Power Taps @70V |
1.5W, 3W |
|
Impedance |
Com/3.3KΩ/1.7KΩ |
|
SPL(1W/1M) |
96dB |
|
Max. SPL (Rated W/1M) |
104dB |
|
Frequency Response (-10dB) |
110-18KHz |
|
Finish |
Baffle, Grille: Steel, White Cover: Steel, Color Plating |
|
Speaker Driver |
5" x 1 1.5" x 1 |
|

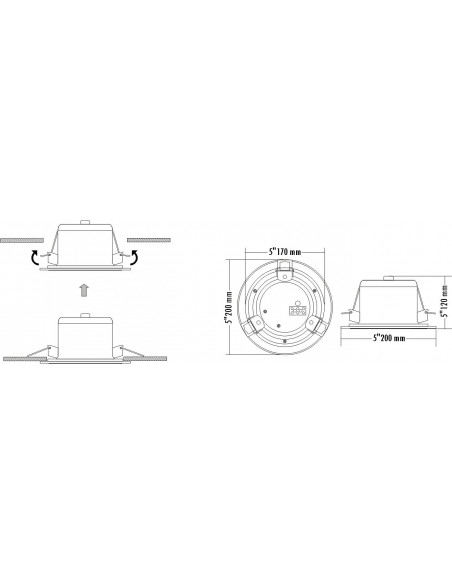

Cutout Size |
170mm |
|
Dimensions |
200 x 110mm |
|
Weight |
1Kg |
|
Mounting |
Spring-clip |
