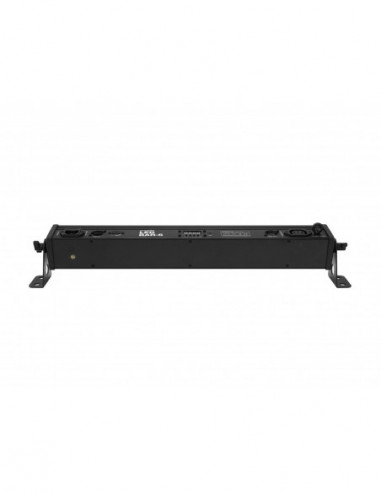

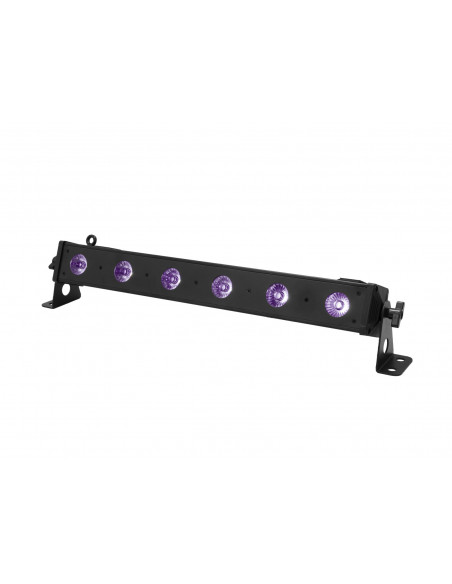

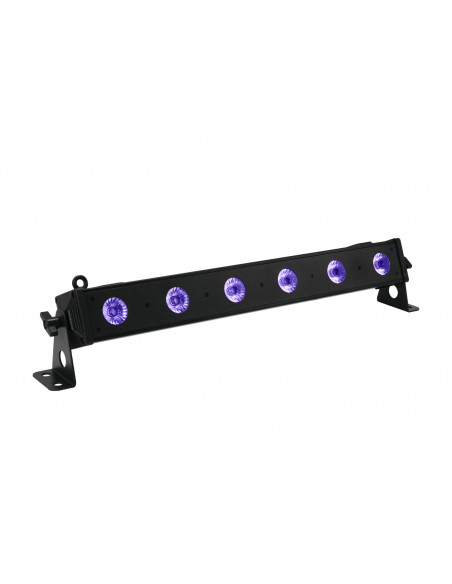

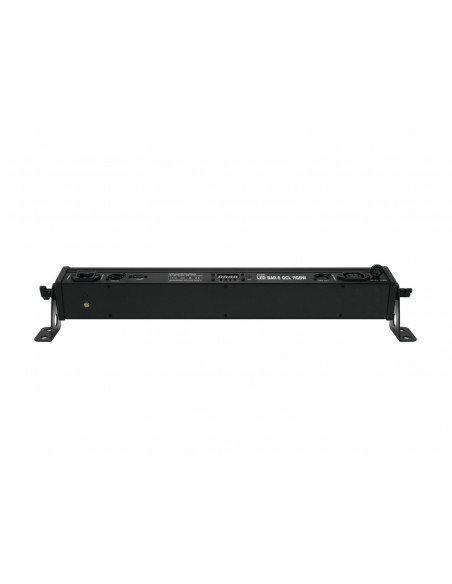

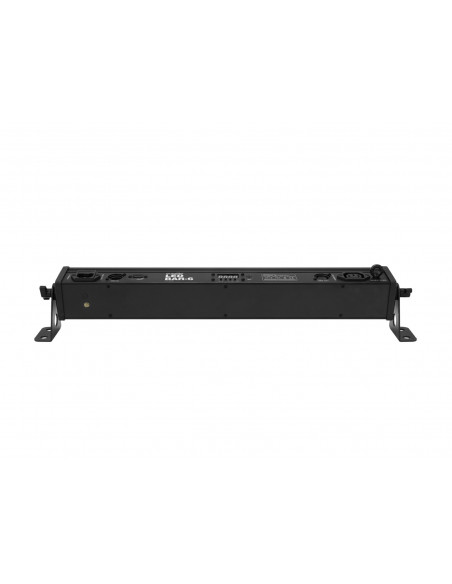

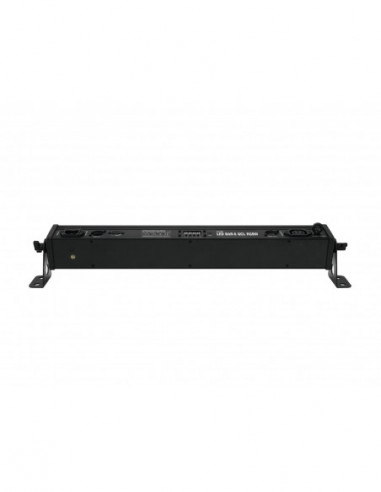

Light effect bar (50 cm) with UV LEDsThe powerful and dimmable light effect bar EUROLITE LED BAR-6 UV is equipped with six 1 W UV LEDs. Due to the convection cooling, the LED BAR is noiseless and offers you versatile application possibilities. Whether at events or for band performances - whether in the theatre or at galas - the LED Bar-6 UV is variably applicable. It is controlled via DMX, master-slave operation is also possible. The LED Bar also has a phantom-powered USB socket for a QuickDMX receiver. This is optionally available. In auto and music mode you can also use integrated show programs. Addressing and settings can be made via the integrated control unit with 4-digit LED display. The mains connections allow you to operate up to eight devices in a row.
Light effect bar (50 cm) with UV LEDs
- 6 high-power 1 W UV LEDs
- Built-in auto and music show programs
- Dimmer and strobe effect
- Control panel with LED display for easy configuration
- Supports QuickDMX - the wireless DMX system from Eurolite
- Built-in phantom-powered USB port for QuickDMX, CRMX and WDMX receivers (optional)
- Swivel mounting bracket
- Mains input and output for power linking up to 8 units
- LED: 6 x high-power 1 W ultra violet (UV)
- Can be operated in 1; 2 CH mode
- The device is cooled by passive convection
- Controlling by DMX; stand-alone; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Preprogrammed in LED PC-Control 512
- Flicker-free projection
- Effect: UV effect; dimmable
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 15 W |
| IP classification: | IP20 |
| Power connection: | Mains input IEC connector (M) mounting version power supply cord with safety plug |
| Power output: | IEC connector (F) mounting version |
| Lamp type: | LED lamp |
| LED: | 6 x high-power 1 W ultra violet (UV) |
| DMX channels: | 1; 2 |
| Cooling: | Passive convection |
| Control: | DMX; stand-alone; Sound to light via Microphone; Master/slave function; LED PC-Control 512; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Beam angle: | 14° |
| Beam angle (1/2 peak): | 14° |
| Beam angle (1/2 peak): | Wash effect |
| Beam angle (1/10 peak): | 24° |
| Housing color: | Black |
| Dimensions: | Length: 56 cm
Depth: 8,5 cm
Height: 11,5 cm |
| Weight: | 1,65 kg |
| Noise classification: | Class 0 (no noise at all) |
| Legal specifications |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
