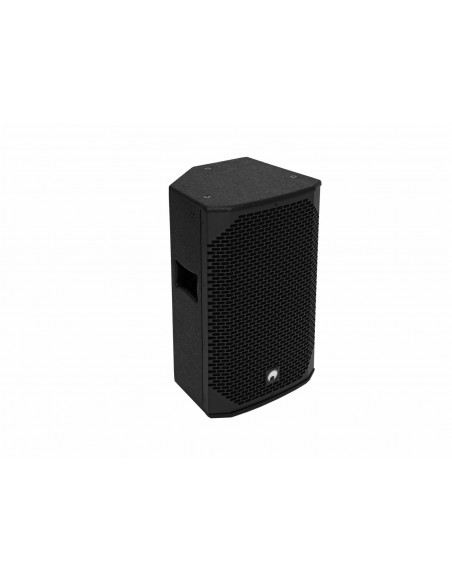

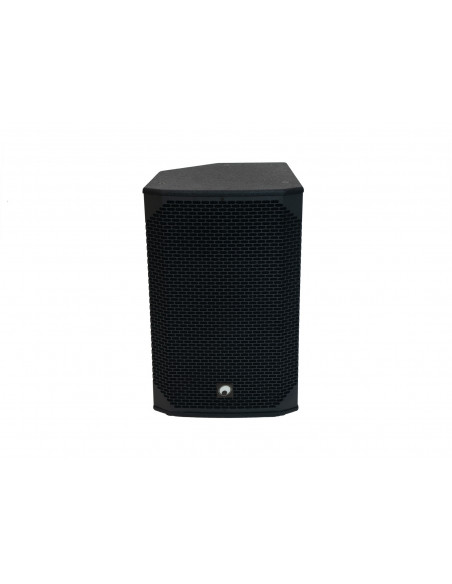

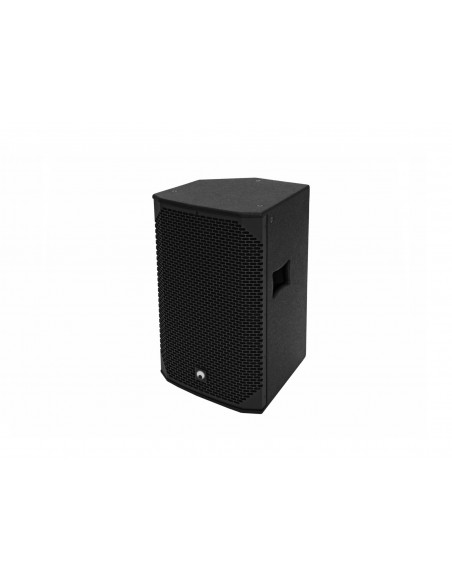

Active speaker with 12" woofer, 1.35" titanium driver, LF 200 W RMS, HF 50 W RMS
- 2-way bassreflex enclosure with 30 cm woofer and 3.5 cm titanium driver
- Balanced signal input XLR/6.3 mm jack, switchable mic/line
- HF adjustment -4 dB, -2 dB, 0 dB
- Limiter for overload protection
- Limit, signal and power LED
- Housing made of 15 mm MDF
- Scratch-resistant lacquer surface
- Carrying handles
- Impact-resistant steel grille with acoustic foam
- Dual flange with 0° and 5° tilt angle enables flexible positioning
- M10 threaded inserts for suspended installation
- Applications: standing, as monitor, on a subwoofer or speaker stand, suspended
| Power supply: |
230 V AC, 50 Hz |
| Power consumption: |
650 W |
| Power connection: |
Mains input IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Rated power: |
200 W RMS LF; 50 W RMS HF |
| Frequency range: |
55 - 20000 Hz |
| Sensitivity: |
95 dB (1W/1m) |
| Attachment system: |
Bead Ø 35mm variable tilt |
| Circuitry: |
Class D Biamp |
| Equalizer: |
Master: 1 x 2-band tone control |
| Connections: |

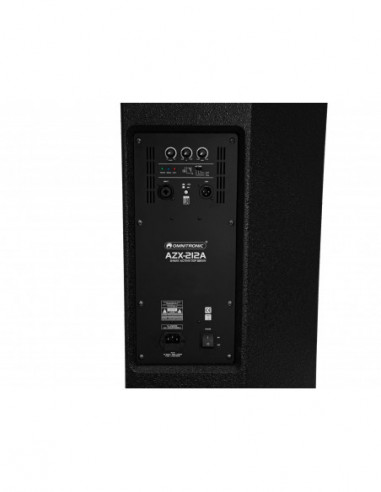

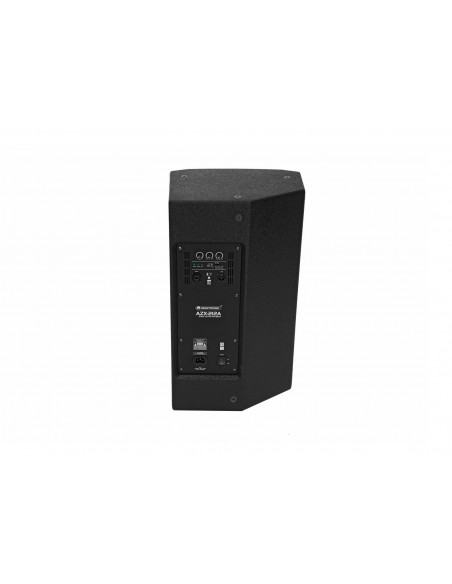

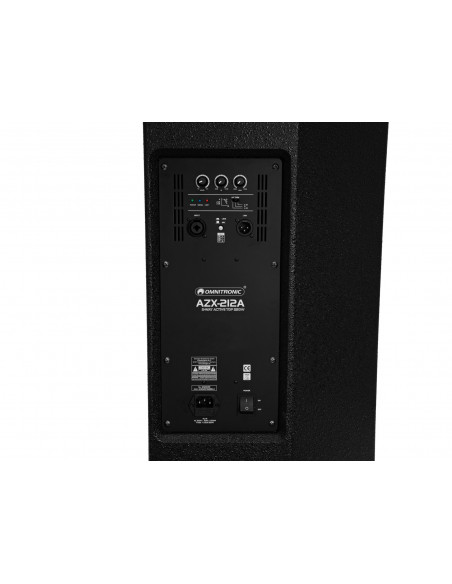

Input: 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Output: line via 1 x 3-pin XLR |
| Input channels: |
1 x mono with Mic-line switch via 3-pin XLR/6.35mm jack (F) combination socket (mounting version), channel control via Rotary dial |
| Speakers: |
Woofer (12") approx. 30 cm with ferrit magnet
Voice coil lows (2") approx. 5 cm
Voice coil compression tweeter highs (1.35") approx. 3,5 cm |
| Type of speaker: |
Compact cabinet speaker |
| Material: |
MDF (Medium-density fibreboard), 15 mm |
| Dimensions: |
Width: 43 cm
Depth: 40,5 cm
Height: 67 cm |
| Weight: |
19,15 kg |
