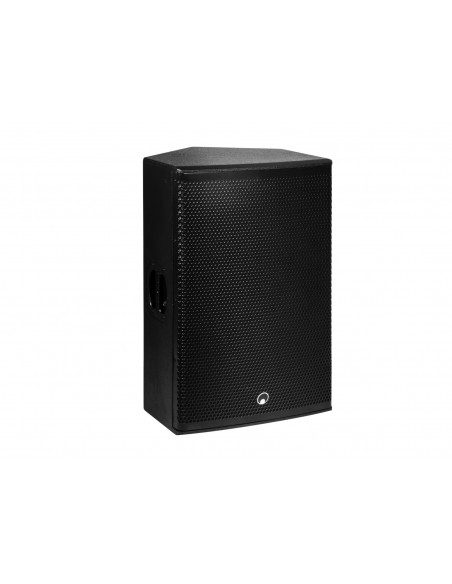

Active 15" PA speaker with DSP presets, 2 input channels, 550 W RMS
- Active PA speaker system for touring applications and permanent installations

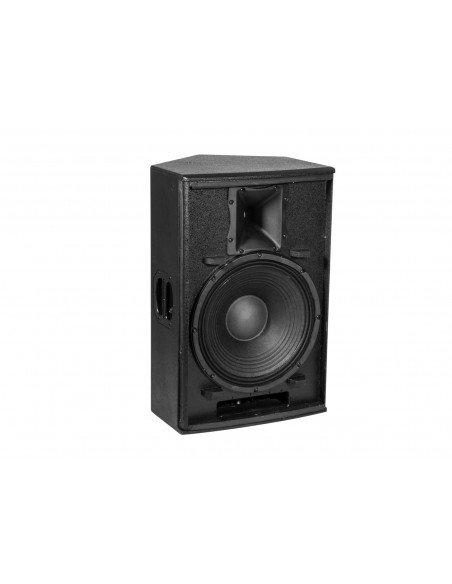

- 2-way bassreflex enclosure with 38 cm woofer and 2.5 cm compression driver
- DSP-controlled class D amplifier with 550 watts power
- 3 EQ presets with indicators (DJ, monitor, flat)
- Switchable low cut (120 Hz, 90 Hz)
- Switch-on delay and limiter for overload protection
- Limit, signal and power LED
- 1 adjustable line input via XLR/6.3mm combo jack and RCA
- 1 adjustable mic/line input via XLR/6.3mm combo jack
- XLR output for linking further active speaker systems, switchable CH 1/CH 2
- Optimized for combination with PAS subwoofers

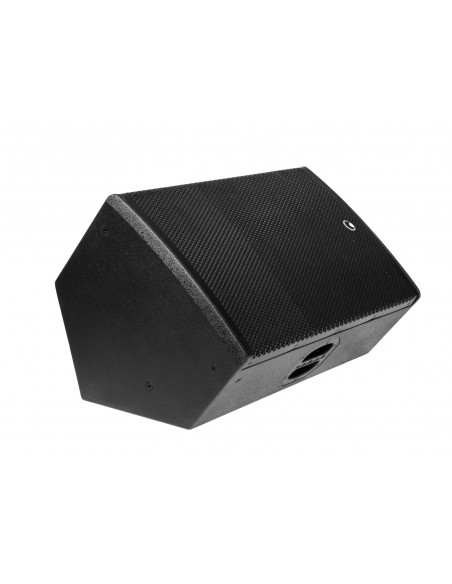

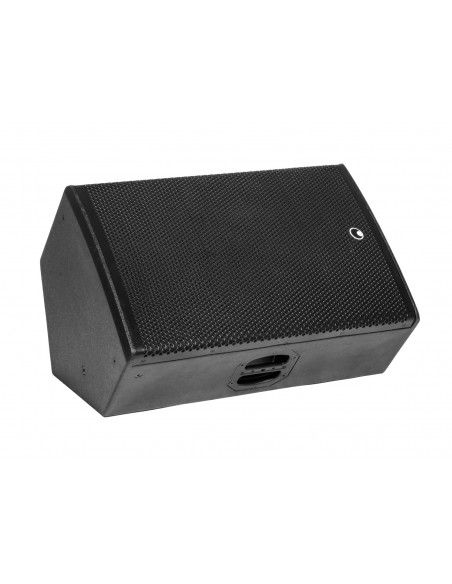

- Trapezoidal, multi-functional multiplex cabinet with monitor shape
- Scratch-resistant lacquer surface
- Aluminum alloy handlebars
- Impact-resistant steel grille with acoustic foam
- Dual flange with 0° and 5° tilt angle enables flexible positioning
- M8/M10 threaded inserts for suspended installation
- Applications: standing, as monitor, on a subwoofer or speaker stand, suspended
- Digital signal processor
| Power supply: |
230 V AC, 50 Hz |
| Power consumption: |
650 W |
| Output power: |
550 W RMS |
| Power connection: |
Mains input IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Frequency range: |
50 - 20000 Hz |
| Max. SPL: |
127 dB |
| DSP: |
Digital signal processor |
| Dispersion angle: |
90° x 60° |
| Attachment system: |
Ø 35mm variable tilt |
| Flying points: |
4 x M10 thread; 6 x M8 thread |
| Circuitry: |
Class D |

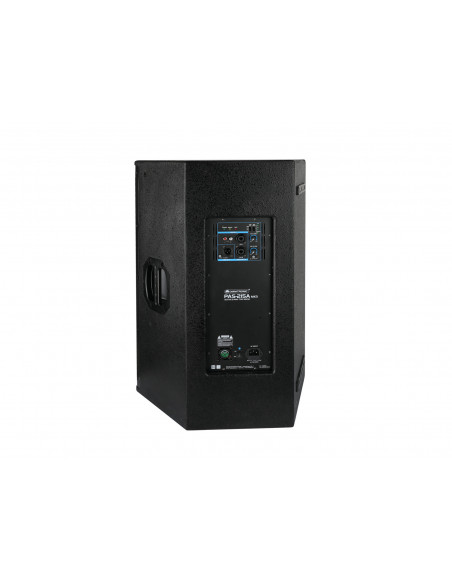

| Connections: |
Input: 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Input: 1 x stereo RCA
Link: 3-pin XLR |
| Input channels: |
1 x mono with Mic-line switch via XLR or RCA, channel control via Rotary dial
1 x mono with Mic-line switch via XLR, channel control via Rotary dial |
| Speakers: |
1 x compression tweeter highs (1") approx. 2,5 cm with ferrit magnet
Basket material: aluminum
Voice coil compression tweeter highs (1.5") approx. 4 cm
Horn vent (1") approx. 2,5 cm
1 x woofer (15") approx. 38 cm
Voice coil lows (3") approx. 8 cm |
| Type of speaker: |
Compact cabinet speaker |
| Material: |
Birch multiplex |
| Color: |
Black, painted |
| Dimensions: |
Width: 45 cm
Depth: 69,5 cm
Height: 43,5 cm |
| Weight: |
26,30 kg |
