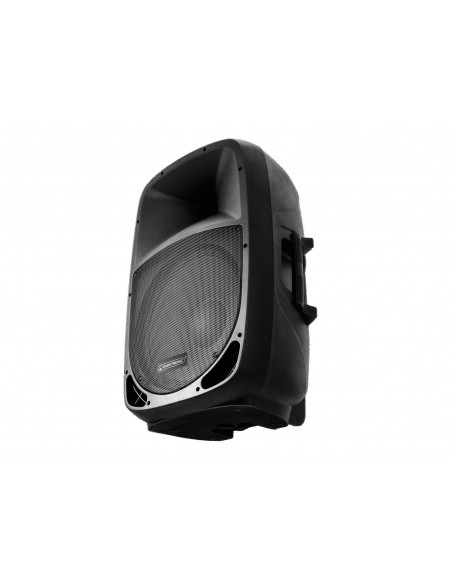

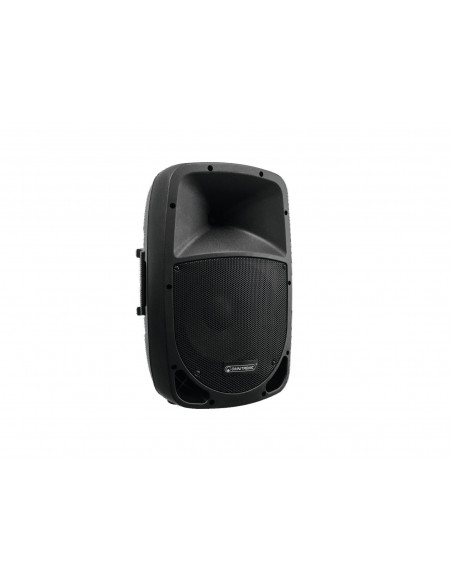

Aktive speaker, 10" woofer, 1" driver, 90 W RMS
- Class A/B circuitry: optimum sound and power at low weight and compact dimensions
- 2-way bass-reflex system with 25 cm woofer and 2.5 cm tweeter
- 1 mic input with separate level controls
- Line input, RCA
- 3.5 mm AUX input

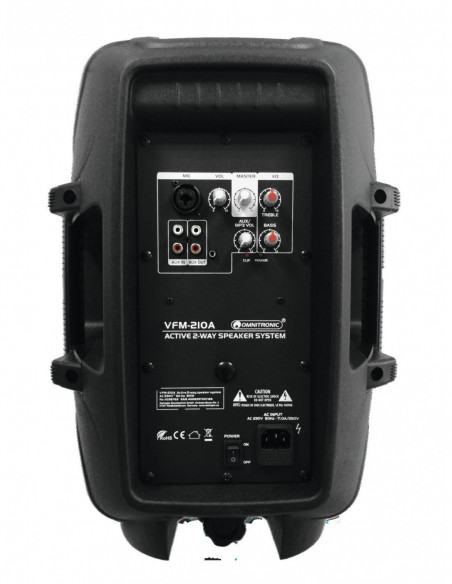

- Master control with 2-way tone control, clip and power LED
- Line output for linking further active speaker systems

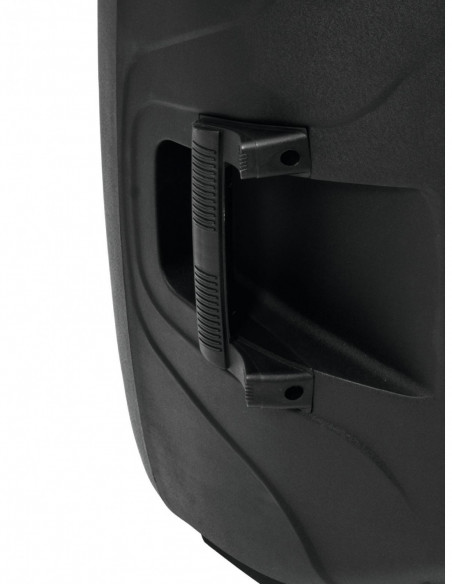

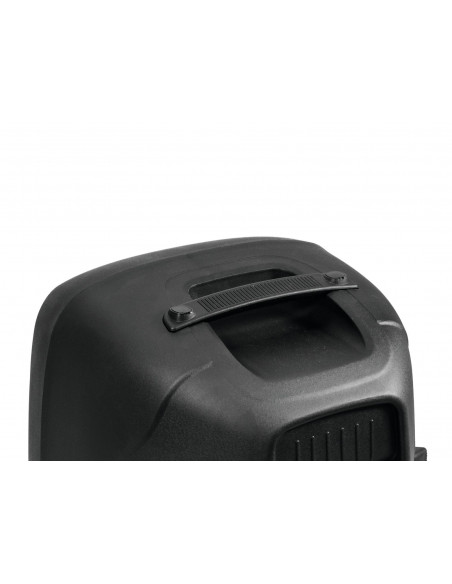

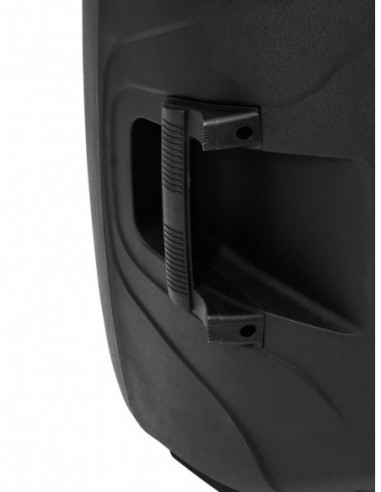

- Stable plastic housing with protective grille and handles
- Flange for stand installation
- Can be used as floor monitor, standing, on a speaker stand or wall holder
- For mobile live and DJ applications
| Power supply: |
230 V AC, 50 Hz |
| Power connection: |
Mains input IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Rated power: |
90 W RMS |
| Program power: |
180 W |
| Frequency range: |
65 - 20000 Hz |
| Max. SPL: |
115 dB |
| Attachment system: |
Ø 35mm |
| Equalizer: |
Master: 1 x 2-band tone control |
| Connections: |
Input: Microphone via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Input: line via 1 x 3.5 mm jack (stereo) mounting version
Input: line via 1 x stereo RCA
Output: line via stereo RCA |
| Input channels: |
1 x mono via XLR or jack, channel control via Rotary dial
1 x stereo via RCA or jack plug, channel control via Rotary dial |
| Speakers: |
1 x compression tweeter highs (1") approx. 2,5 cm with ferrit magnet
Voice coil compression tweeter highs (1") approx. 2,5 cm
Horn vent (1") approx. 2,5 cm
1 x woofer (10") approx. 25 cm with ferrit magnet
Voice coil lows (1.5") approx. 4 cm |
| Type of speaker: |
Compact cabinet speaker |
| Dimensions: |
Width: 36 cm
Depth: 29,5 cm
Height: 54,5 cm |
| Weight: |
6,70 kg |
