- Apenas online
- Professional DSP-controlled switch mode power amplifier.
- The high efficient class-D design guarantees high power, even at 2Ω!
- Stereo: 2x 440Wrms @ 8Ω ~ 2x 750Wrms @ 4Ω ~ 2x 1200Wrms @ 2Ω
- Bridge: 1500Wrms @ 8Ω ~ 2400Wrms @ 4Ω
- Perfect for both DJ and install applications (pubs, shops, hotels, restaurants, … )
- Complete DSP-section with:
- HPF: (40~125Hz) eliminates unwanted, energy absorbing frequencies.
- LPF: (6.3k~20kHz) cuts the upper frequencies if needed to avoid oscillations.
- 8 Band parametric EQ: (100Hz~12.5kHz, Q:0.5~5, ±6db) for perfect tuning.
- 2 Limiters: for increased protection (threshold 0~-12dB).
- 2 Delays: can be set separately from 0 to 20ms (0 to 6,86m) for each channel.
- Crossover: build an active system (Linkwitz-Riley 24dB/oct, 50Hz~3,15kHz)

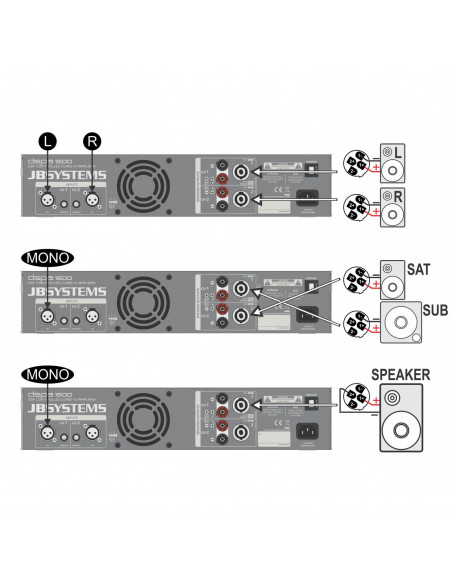

- 3 working modes: Stereo, Bridge, Input Y (mono in, used for active system)
- Temperature controlled fan cooling
- DC fault + high temperature + overload + short circuit protections

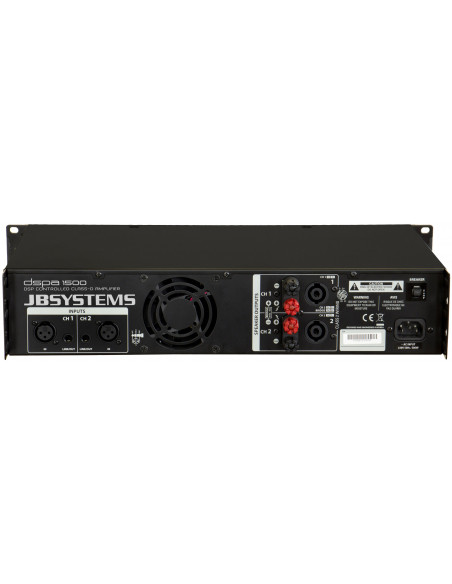

- Balanced XLR + jack inputs with possibility for daisy chaining of several inputs.
- SpeakON® + bind-post wire terminal outputs
General : Application | Commercial, DJ & Club, Stage & Rental |
General : Dimensions (cm) | 48.2 x 8.8 x 28 cm |
General : Weight (kg) | 5.7 |
General : Color | black |
General : Powerinput | AC 100 - 240V, 50/60Hz |
General : Energy Label | No |
General : Power consumption W | - |

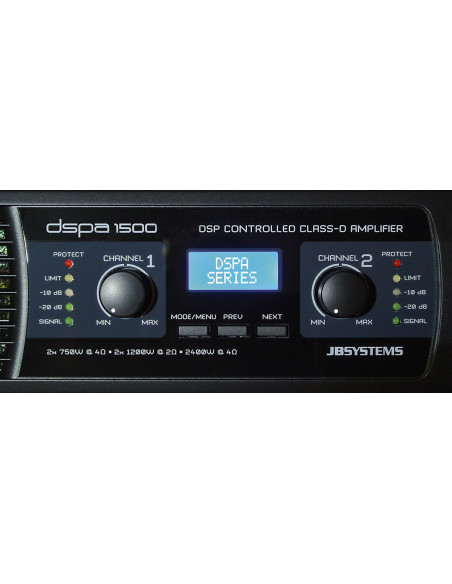

General : Display | LCD |
General : Fixation | 19" rack mountable |
General : RU | 2U |
General : IP rating | indoor |
Control : Type included remote | - |
Control : optional remote | - |
Audio : amplifier class | D |
Audio : min. frequency (Hz) | 20 |
Audio : max. frequency (Hz) | 20000 |
Audio : crossover frequency range | 50 Hz - 3150 Hz |
Audio : S/N ratio (> dB) | 100 |
Audio : damping factor (>...) | 200 |
Audio : max. output channels | 2 |
Audio : Power 2 Ohm (Wrms) | 1200 |
Audio : Power 4 Ohm (Wrms) | 750 |
Audio : Power 8 Ohm (Wrms) | 440 |
Connections : input | N/A |
Connections : output | N/A |
Function : equalizer | Yes |
Function : sound effects | No |
Function : crossover | fixed |
Function : bridge mode | Yes |
Function : DSP | Yes |
Function : limiter | Yes |
