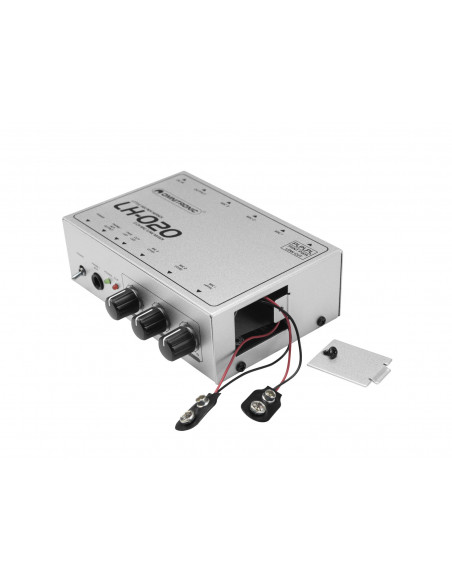

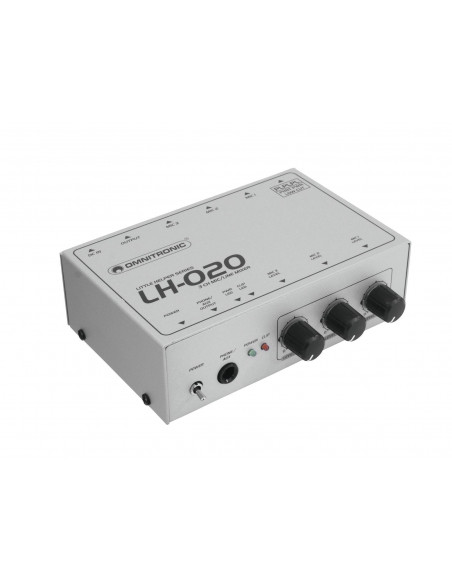

OMNITRONIC LH-020 3-Channel Mic Mixer
OMNITRONIC LH-020 3-Channel Mic Mixer
OMNITRONIC LH-020 3-Channel Mic Mixer
OMNITRONIC LH-020 3-Channel Mic Mixer
OMNITRONIC LH-020 3-Channel Mic Mixer
OMNITRONIC LH-020 3-Channel Mic Mixer
OMNITRONIC LH-020 3-Channel Mic Mixer
OMNITRONIC LH-020 3-Channel Mic Mixer

OMNITRONIC LH-020 3-Channel Mic Mixer

10355020
107,11 €
Entrega entre 7-10 dias

Mesa de Mistura de 3 canais





3-channel microphone mixer

  • Compact mixer to mix 3 microphones to 1 line output, with individual level control
  • 3 microphone input channels with separate level controls, switchable phantom power and low cut
  • 1 master output with line level, clip LED
  • 1 headphones output (6.3 mm jack)
  • On/off switch and power LED

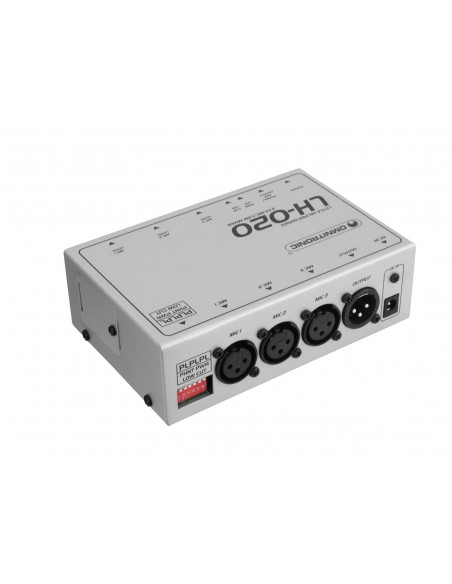

  • Inputs and output via balanced XLR connectors

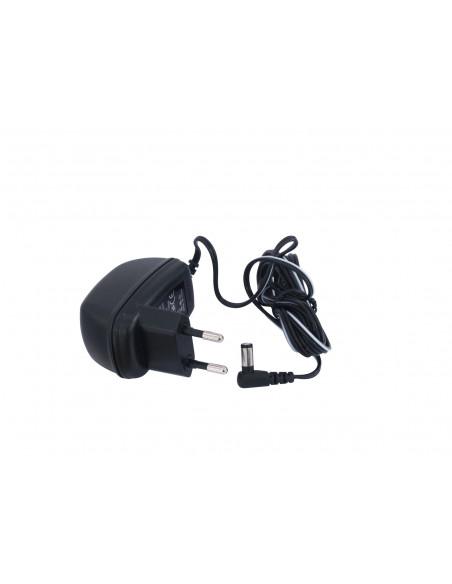

  • Operation via supplied power unit



Power supply: 12 V DC 150 mA
Protection class: Class III
Power connection: Mains input Coaxial power connector (M) power supply cord with AC adapter (provided)
Frequency range: 25 - 16000 Hz
S/N ratio: >75 dB
THD: <0,02 % at 1 kHz
Phantom power: 18 V DC
Impedance: Input 600 Ohm
600 Ohm
Gain: 60 dB
Status LED: Power, clip
Connections: Input: Microphone via 3 x 3-pin XLR
Output: Microphone via 1 x 3-pin XLR
Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version
Input channels: 3 x mono via XLR, channel control via Rotary dial
Switch: Low cut switch,
Max. level: Input: -14 dB
Output: +14 dB
Dimensions: Width: 14,3 cm
Depth: 9,3 cm
Height: 4,5 cm
Weight: 760 g
