4 x 400 W @ 4 Ohm power amplifier. Switching power supply. Stereo/bridge/parallel modes

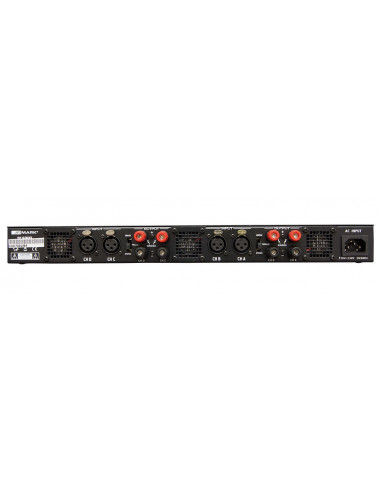

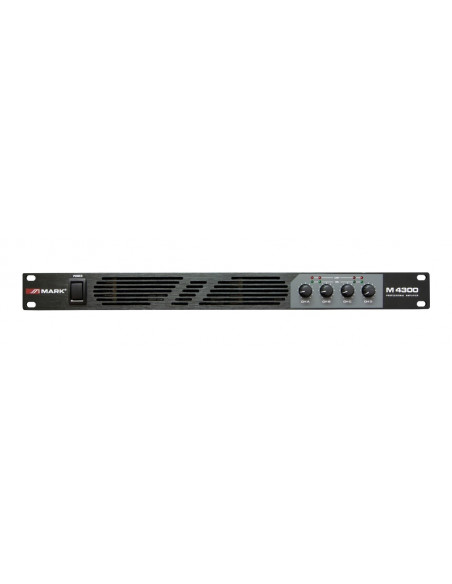

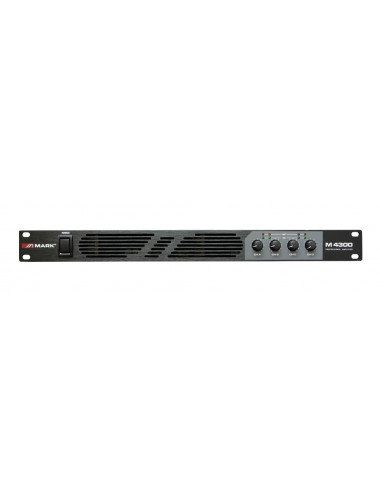

M 4300 is a 400 W @ 4 Ohm 8 channel Class D professional audio amplifier, built in 1 rack unit metal enclosure. On the back, it has balanced signal inputs with XLR3 connectors and speaker outputs with Binding Post connectors, as well as stereo/bridge/parallel selectors. On the front panel we find the power switch, volume controls for each channel, and signal and limiter indicators.
Stereo, bridge or parallel operating mode selector.
Front control of power and volume per channel.
Class D.
1 rack unit.
Type | Class D | |
No. Chanels | 4 | |
W/Ch @ 8 Ohm | 300 W | |
W/Ch @ 4 Ohm | 400 W | |
W Bridge @ 8 Ohm | 600 W | |
Frequency Range | 20 Hz - 20 KHz | |
Input Sensitvity | 1 V | |
THD+N | <0.1 % | |
S/N Rate | >100 dB | |
Damping Factor | > 200 | |
Slew Rate | 20 V/uS | |
Connections | Power: 1 x IEC, Audio In: 4 x XLR3, Audio Out Amp: 4 x Pair Binding Post | |
Protections | Soft start, DC, VHF, AC, Short circuit, Limiter, Temperature |
