STUDIOMASTER Amplificador Digital 2X3570W

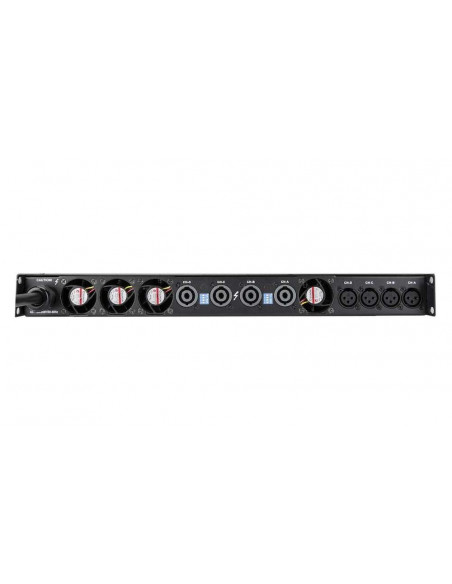

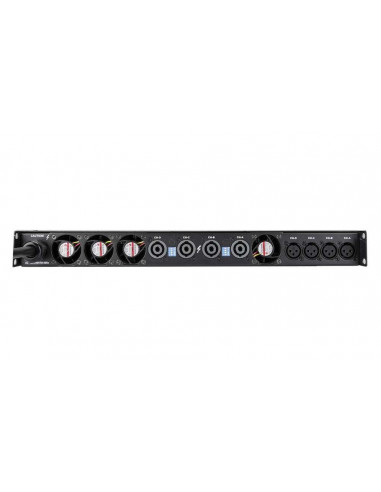

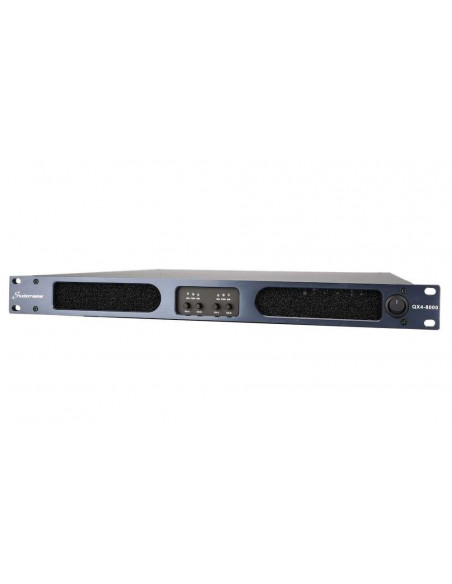

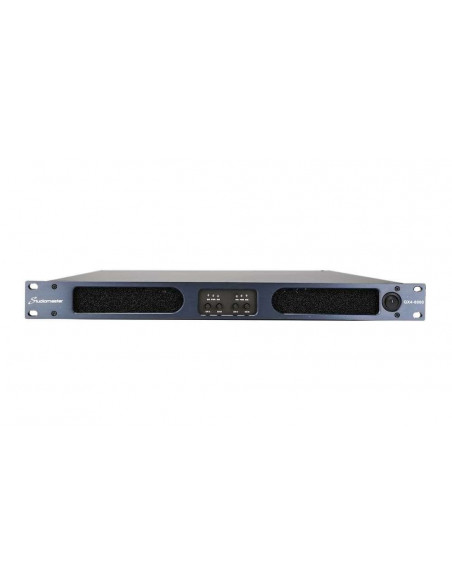

Studiomaster QX4-2600 Amplificador Digital 4X1870W Studiomaster

Referência QX4-2600

1 040,65 €

8ohms Stereo: 4x650watts

4ohms Stereo: 4x1100watts

2ohms Stereo: 4x1870watts

16ohm Bridged: 2x1300watts

8ohm Bridged: 2x2200watts

4ohm Bridged: 2x3740watts

Descrição
Detalhes do produto

Energy saving with over 95% efficiency
Power factor correction (PFC)
Universal 90-250V power supply
2 and 4 channel models
Reliable efficient operation down to 2ohm loads
Variable speed fan cooling
Internally modular design for quick maintenance
Stereo/parallel/bridge modes
Multiple gain modes
Output limiter
Balanced XLR inputs
32A mains power input socket
Thermal, overload, DC protection
Thermal, fault and limiter indicators

Slope (1kHz, Bypass LPF): 50V/us
Input Sensitivity 1kHz: Option: 41dB, 38dB, 35dB, 32dB
THD+N (10% rated output power): 0.01%
IMD-SMPTE (10% rated output power): 0.01%
DIM30 (10% rated output power): 0.01%
Crosstalk rejection (less than rated power, 20Hz – 1kHz): >80Db
Frequency Response (10% rated output power, 8ohm, 20Hz – 20kHz): 0.2dB
Input Impedance: 20k ohm (bal), 10k ohm (unbal)
Damping Factor (8ohm, 20Hz – 200Hz): 5000
S/N ratio (A weighted, 20Hz-20kHz): >105-112dB
Power supply: 90-260VAC, 50/60Hz
Protection: low voltage/overoad/thermal/DC output protection
Dimensions (WxHxD) 483mm x 44mm x 462mm
Net Weight: 10-12kg
