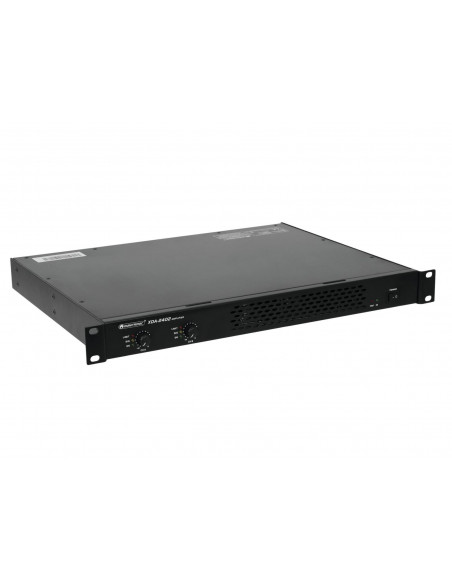

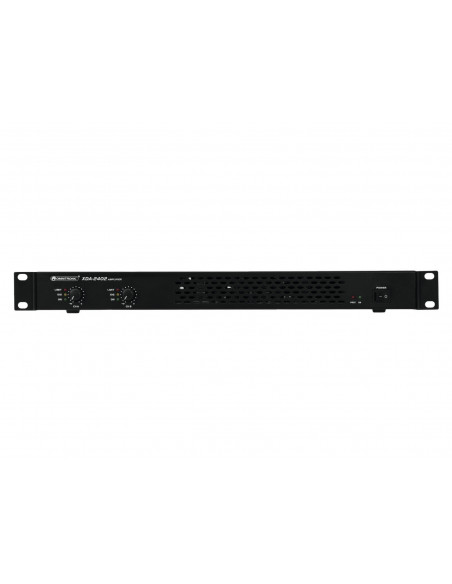

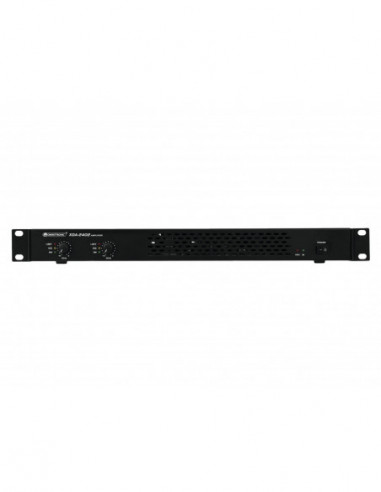

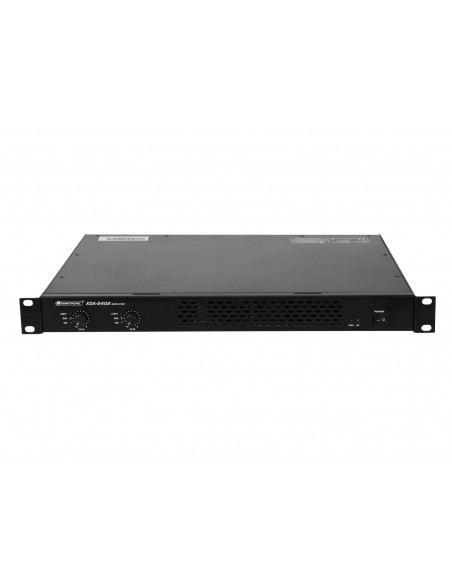

OMNITRONIC XDA-2402 Class D Amplificador 2 x 1200 W
OMNITRONIC XDA-2402 Class D Amplificador 2 x 1200 W
OMNITRONIC XDA-2402 Class D Amplificador 2 x 1200 W
OMNITRONIC XDA-2402 Class D Amplificador 2 x 1200 W
OMNITRONIC XDA-2402 Class D Amplificador 2 x 1200 W
OMNITRONIC XDA-2402 Class D...
OMNITRONIC XDA-2402 Class D...
OMNITRONIC XDA-2402 Class D...
OMNITRONIC XDA-2402 Class D...
OMNITRONIC XDA-2402 Class D...

OMNITRONIC XDA-2402 Class D Amplificador 2 x 1200 W

10451636
466,18 €
Entrega entre 7-10 dias

Amplificador de PA estéreo com SMPS, 2 x 1200 W / 4 ohms, 2 x 880 W / 8 ohms

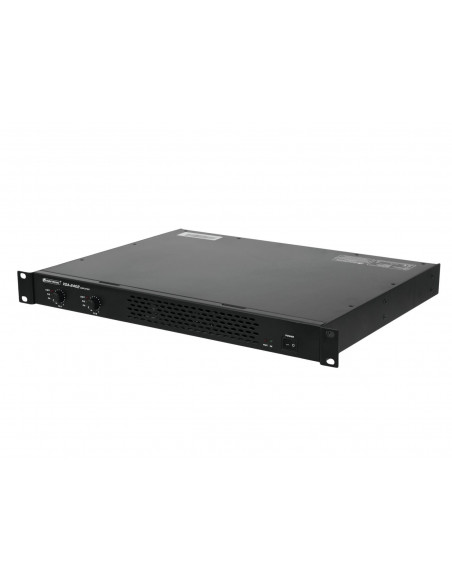

Amplificador OMNITRONIC XDA-2402 Classe D





Stereo PA amplifier with SMPS, 2 x 1200 W / 4 ohms, 2 x 880 W / 8 ohms

  • Stereo PA amplifier with class D circuitry
  • Low weight and height due to integrated switch mode power supply
  • Speaker switch-on delay and auto limiters
  • 2 level controls
  • LEDs for activated protective circuit, limiter, signal, and power
  • Complete protection set against short-circuit, overheat, DC voltage, power on/off transients, soft start
  • Ground lift switch against humming
  • Electronically balanced inputs via XLR mounting jacks with feed-through output
  • Speaker outputs via lockable speaker jacks
  • The device is cooled by cooling fan
  • (19") 48.3 cm rack installation 1 U



Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 465 W 1/8 power
Output power: 2 x 880 W RMS (8 ohms)
2 x 1200 W RMS (4 ohms)
Power connection: Mains input P-Con (blue), mounting version power supply cord with safety plug (provided)
Frequency range: 30 - 20000 Hz
S/N ratio: >100 dB
THD: <0,02 % at 1 kHz
Cooling: Cooling fan
Impedance: Input 20 kOhm , bal.
Input 10 kOhm , unbal.
Circuitry: Class D
Control elements: Power switch, level control per channel, groundlift selector
Controls: Short-circuit; overheat; DC voltage; power on/off transients; softstart; power on/off transient; limiter
Status LED: Power, signal, limit, protect

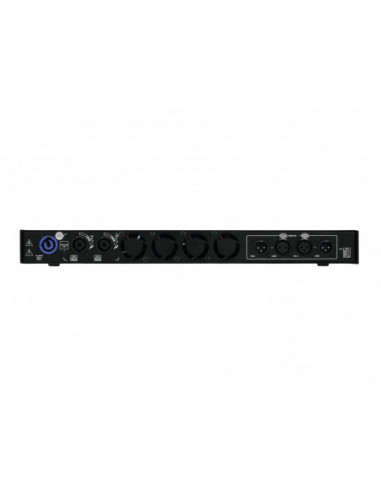

Connections: Input: line via 2 x 3-pin XLR
Link: line via 2 x 3-pin XLR
Output: speakers via 2 x speaker built-in socket (F)
Input sensitivity: 1,25 V
Housing design: (19") 48.3 cm rack installation 1 U
Dimensions: Width: 48,3 cm
Depth: 35,5 cm
Height: 4,45 cm
Weight: 6,40 kg
