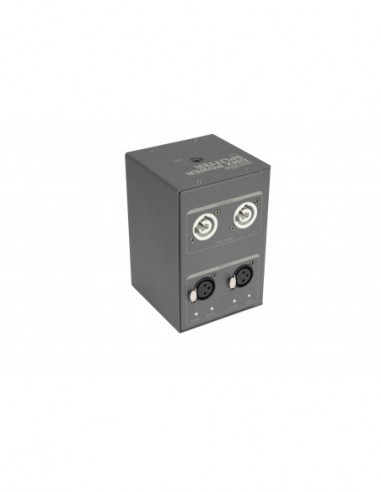

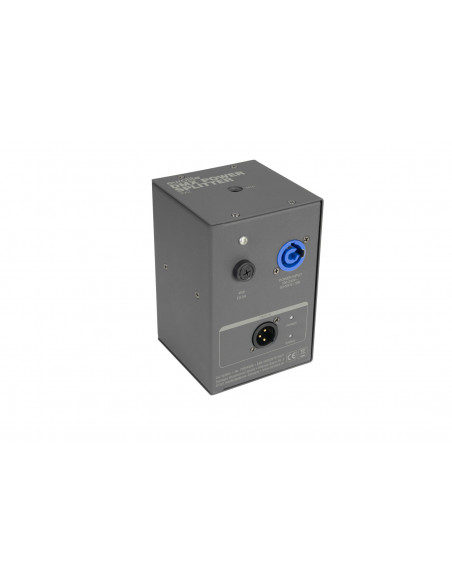

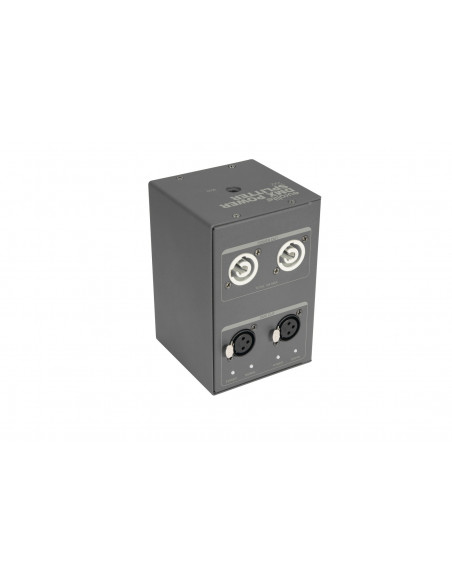

EUROLITE DMX Power Splitter 2x2
EUROLITE DMX Power Splitter 2x2
EUROLITE DMX Power Splitter 2x2
EUROLITE DMX Power Splitter 2x2

EUROLITE DMX Power Splitter 2x2

70064808
89,95 €




2-fold power and DMX splitter for truss mounting

  • Reliable power and DMX distributor
  • 1 P-Con input to 2 outputs, max. 10 A
  • 1 DMX input to 2 outputs
  • Input and outputs galvanically isolated
  • LED status indicators for Signal In/Out
  • Rugged metal housing with M10 threaded insert
  • Incl. power cable
  • Suitable power DMX combination cables available as accessories


Power supply:100-240 V AC, 50/60 Hz
Power consumption:2 W
Output current:Max. 2 x 5 A per channal
Power connection:P-Con (blue), mounting version power supply cord with safety plug
Power output:2 x P-Con (gray), mounting version
DMX input:3-pin XLR (M)
DMX output:2 x 3-pin XLR (F) Separate (galvanic) with independent driver and status indicator
Dimensions:Width: 9 cm
Depth: 10 cm
Height: 13,6 cm
Weight:1,00 kg
