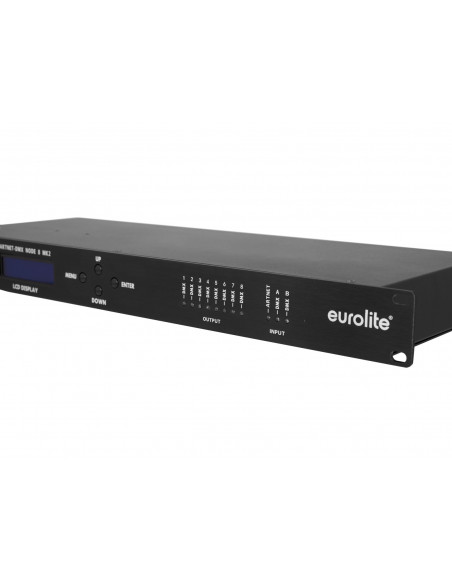

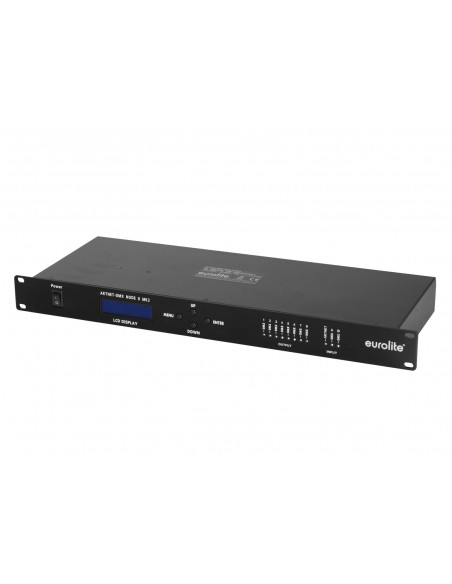

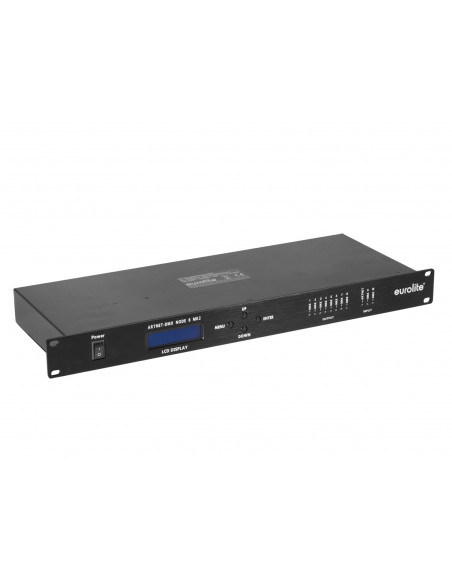

EUROLITE Art-Net/DMX Node 8 MK2
EUROLITE Art-Net/DMX Node 8 MK2
EUROLITE Art-Net/DMX Node 8 MK2
EUROLITE Art-Net/DMX Node 8 MK2
EUROLITE Art-Net/DMX Node 8 MK2
EUROLITE Art-Net/DMX Node 8 MK2
EUROLITE Art-Net/DMX Node 8 MK2
EUROLITE Art-Net/DMX Node 8 MK2
EUROLITE Art-Net/DMX Node 8 MK2
EUROLITE Art-Net/DMX Node 8 MK2

EUROLITE Art-Net/DMX Node 8 MK2

70064843
427,57 €




Art-Net interface for output of 8 universes on XLR

  • Distributes Art-Net data to 8 DMX512 universes (4096 channels)
  • Parallel DMX input possible (1024 channels)

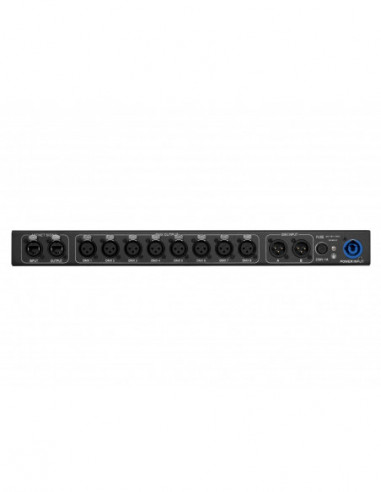

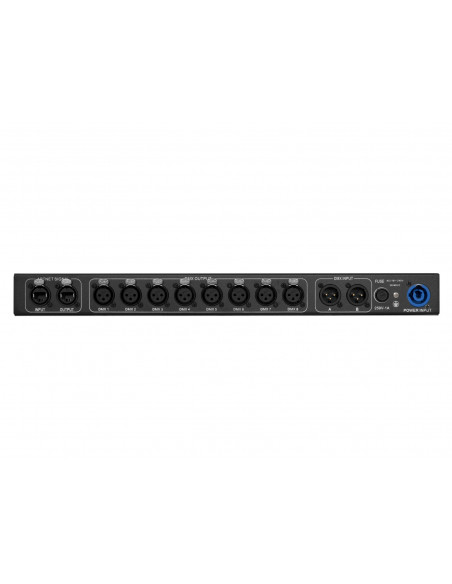

  • 8 optically isolated XLR plugs (3-pin) for DMX output
  • 2 XLR jacks (3-pin) for DMX input
  • Variable data routing capabilities for all DMX outputs
  • 2 x Ethernet port
  • Serial connection possible

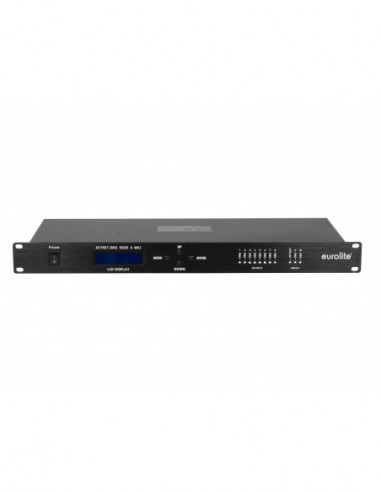

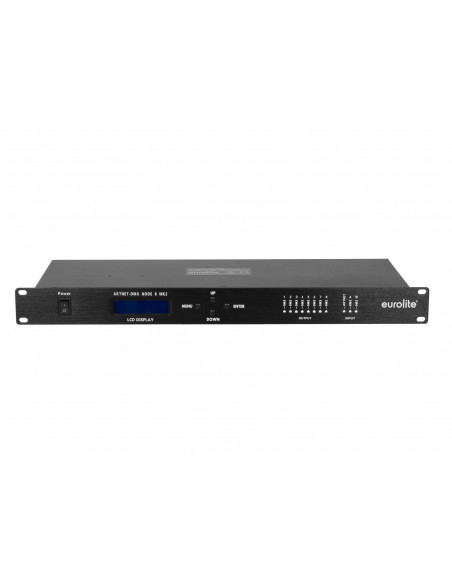

  • User-friendly configuration directly at the front panel via 4 operating buttons and alphanumeric LCD screen (2 x 16 characters)
  • LED indication for functions
  • Splitter operation possible
  • Rack installation, 1 U
  • Controlling by ArtNet
  • The device can be connected via RJ-45 (F) mounting version to the PC
  • (19") 48.3 cm rack installation


Power supply:100-240 V AC, 50/60 Hz
Power consumption:5 W
Power connection:Mains input P-Con (blue), mounting version power supply cord with safety plug (provided)
DMX input:2 x 3-pin XLR (M) mounting version
DMX output:8 x 3-pin XLR (F) mounting version
Network connection:Protocol: ArtNet 3 via 2x RJ-45 (F) mounting version
Control:ArtNet
PC connect:Via RJ-45 (F) mounting version
Housing design:(19") 48.3 cm rack installation
Dimensions:Width: 48,3 cm
Depth: 17,5 cm
Height: 4,45 cm
Weight:2,40 kg
