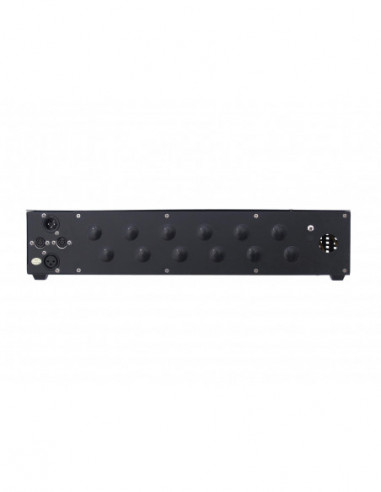

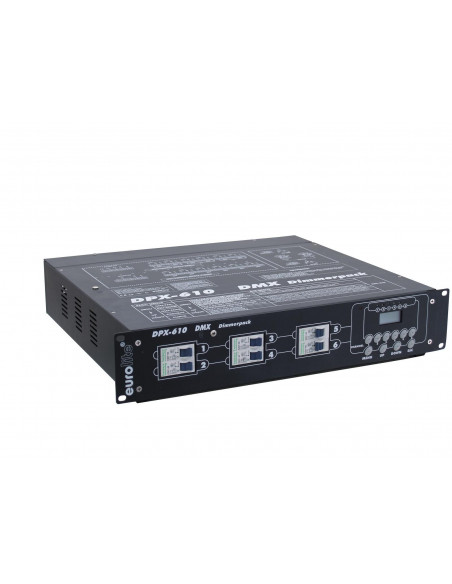

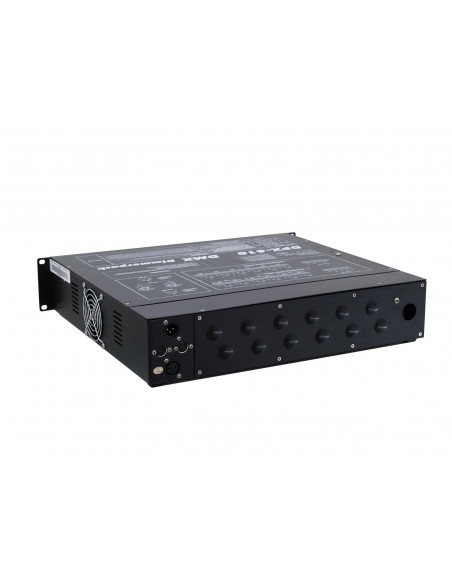

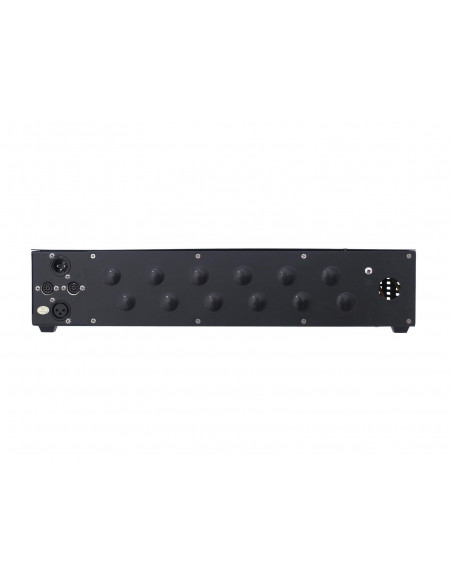

EUROLITE DPX-610 DMX Dimmer Pack
EUROLITE DPX-610 DMX Dimmer Pack
EUROLITE DPX-610 DMX Dimmer Pack
EUROLITE DPX-610 DMX Dimmer Pack
EUROLITE DPX-610 DMX Dimmer Pack
EUROLITE DPX-610 DMX Dimmer Pack

EUROLITE DPX-610 DMX Dimmer Pack

70064120
378,95 €




6x10A dimmer for DMX & analog signals, connection via terminal blocks

  • Universal dimmer pack for professional use
  • Can be operated 1-phase or 3-phase
  • 6 x 10 A
  • DMX control or analog control possible
  • The DMX-starting address can be adjusted on the device
  • Synchronization of several devices possible via DMX
  • Adjusting the lamp pre-heat
  • All modes are displayed via LEDs and the display
  • With automatic circuit breaker per channel
  • Channel-outputs on the rearpanel via pole connectors
  • Only for professional use
  • Preprogrammed 12 chasers
  • Can be operated in 6 CH mode
  • Controlling by Analog 0-10 V; stand-alone; DMX
  • (19") 48.3 cm rack installation 2 U


Power supply:230/380 V AC, 50 Hz
Output power:Max. 13800 W
Max. 2300 W per channal
Output current:Max. 60 A
Power connection:Mains input screw terminal
Power output:Screw terminal
Power output fuse per channel:C 10 A Fuse resettable
Programs:Preprogrammed 12 Chasers
DMX channels:6
Control:Analog 0-10 V; stand-alone; DMX
Control channels:6
Color:Black
Housing design:(19") 48.3 cm rack installation 2 U
Dimensions:Width: 48,3 cm
Depth: 41 cm
Height: 8,9 cm
Weight:7,50 kg
