Advanced lighting-control recorder and stand-alone playback unit for 6144 channels
Advanced lighting-control recorder and stand-alone playback unit for 6144 channels
Can transmit up to 6144 DMX channels
The device is cooled by passive convection cooling
For application areas such as: Clubs/dancing school; Trade fair and shop fitting; Installation; Stage; restaurants, bars and hotels; architecture
For further information about this product, please refer to the Data Sheet under "Downloads"
Package contents
1 x device, 1 x user manual, 1 x network cable, 2 x fixation clip, 1 x terminating plug (power)
| Power supply: | 12/24V DC |
| Power consumption: | 1,5 W |
| IP classification: | IP20 |
| Power connection: | Mains input via Special connector recessed mounting Mains input via USB, type B |
| DMX channels: | Output 6144 |
| Network connection: | Protocol: ArtNet 3 via 2x RJ-45 (F) mounting version, 10/100/1000 Mbit/s; protocol: Streaming ACN (sACN / ANSI E1.31) via 2x RJ-45 (F) mounting version, 10/100/1000 Mbit/s |
| Cooling: | Passive convection cooling |

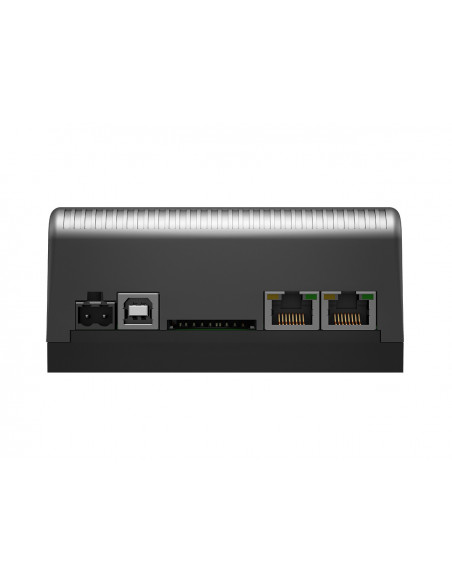

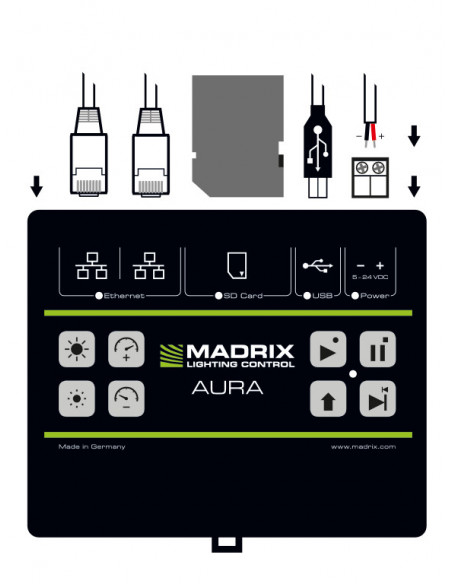

| Connections: | Network connection via 2 x RJ-45 (F) mounting version |
| USB port: | Typ B |
| Weight: | 190 g |
| PU | EAN | WEIGHT | DIMENSIONS |
|---|---|---|---|
| 1 | 4260263421325 | 0,34 kg | 19,5cm x 13,5cm x 7cm |
| 1 | 4026397726077 | 0,34 kg | 19,5cm x 1,4cm x 70cm |
