Reliability is always important. Especially at professional events the breakdown of any part of the equipment cannot be accepted. The DPMX-1216 dimmer pack series is the right answer here because it plays it safe: this universal output stage has an automatic circuit breaker on every channel, so single failures can be corrected without causing a complete blackout. Another benefit are the different outputs. Pole connector, safety plug, CEE or multipin: the DPMX-1216 19" serves really any kind.
12 x 16A dimmer, service friendly modules, 12 CEE sockets
- 12-channel dimmer pack with up to 16 A output per channel
- Modular design of the individual dimmer modules for quick and easy change
- 3-phase or 1-phase power supply
- DMX512 control or analog control
- Adjustable lamp preheat (0-50%) and limiter function to prolong bulb life
- Curve function for selection of different fade modes
- Dim or switch option assignable to each channel
- DMX Fail function: automatic digital input check to detect DMX signal errors
- 12 built-in programs with adjustable speed
- Manual mode for dimming capability without an external lighting controller
- All modes are displayed via LCD
- Synchronization of several devices possible via DMX
- Automatic circuit breaker per channel (type C)

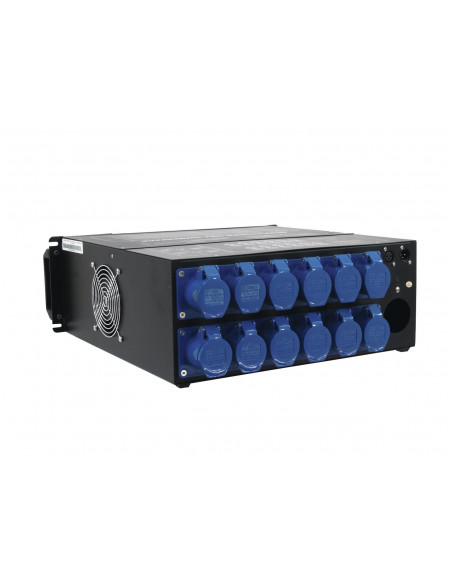

- Channel outputs on the rear panel via CEE sockets
- Rack installation, 4 U
- Only for professional use
- Preprogrammed 12 chasers
- Can be operated in 12 CH mode
- Controlling by Analog 0-10 V; stand-alone; DMX
- (19") 48.3 cm rack installation 4 U
| Power supply: | 230/380 V AC, 50 Hz |
| Output power: | Max. 43470 W
Max. 3680 W per channal |
| Output current: | Max. 189 A |
| Power connection: | Mains input screw terminal |
| Power output: | 12 x CEE 16A 3-pol (F) recessed mounting |
| Power output fuse per channel: | C 16 A Fuse resettable |
| Programs: | Preprogrammed 12 Chasers |
| DMX channels: | 12 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Control: | Analog 0-10 V; stand-alone; DMX |
| Control channels: | 12 |
| Color: | Black |
| Housing design: | (19") 48.3 cm rack installation 4 U |
| Dimensions: | Width: 48,3 cm
Depth: 48,5 cm
Height: 17,8 cm |
| Weight: | 19,15 kg |
