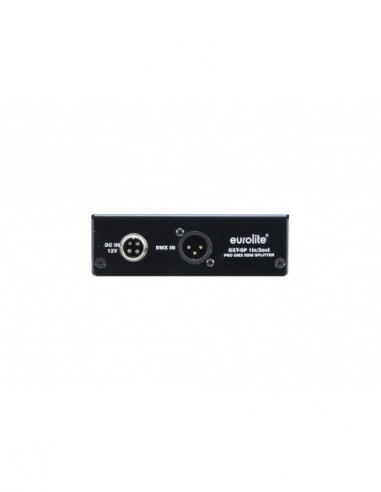

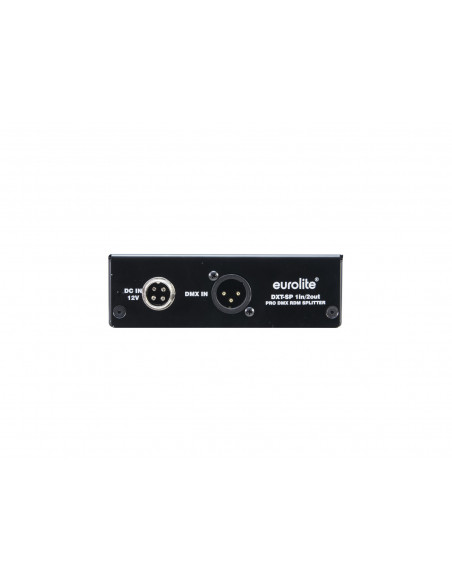

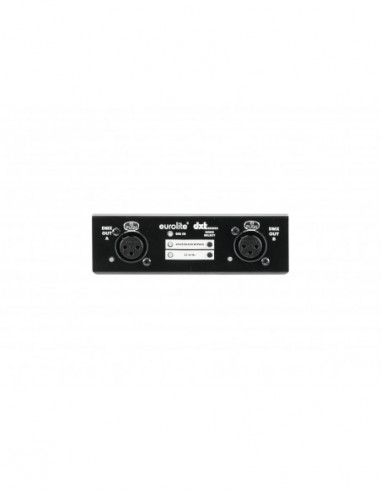

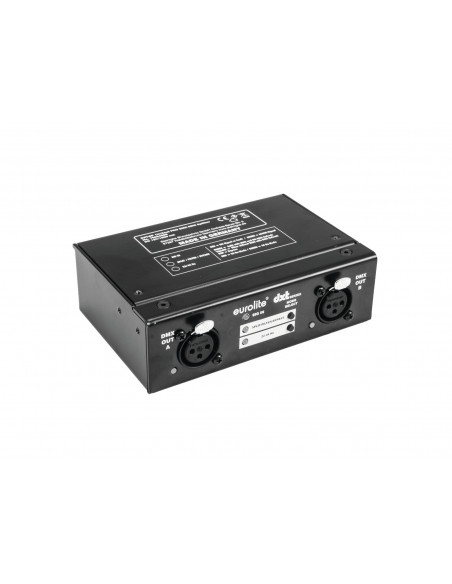

RDM-capable DMX splitter, 1in/2out with signal boost
- DMX splitter for splitting one DMX input signal to 2 DMX outputs
- Connections: 1 x DMX input, 2 x DMX output
- Supports RDM for bidirectional communication over the DMX line
- Switchable filter mode allows all RDM data to be filtered out in order to prevent problems when using fixtures intolerant of RDM
- Bypass function to process signals from older devices similar to DMX signals
- Output frequency adjustable: 22/44 Hz
- DMX fail mode selectable: hold, blackout, null
- Input and outputs XLR 3-pin (Neutrik)
- Outputs galvanically isolated
- Each DMX output with independent driver and status indicator
- Each DMX output can be connected to 32 DMX devices
- Operation via included power adapter
- Rack installation via optional rack mounting kit (item 70064872)
- DMX fail mode (hold, blackout, null)
DMX feed-through for up to 32 further DMX devices
RDM For bidirectional communication over the DMX line
RDM switchable to prevent problems when using fixtures without RDM - Built with NEUTRIK connector
- Made in Germany
| Power supply: | 100-240 V AC, 50/60 Hz
12 V DC 1 A |
| Power consumption: | 1,8 W |
| Power connection: | Fixed power supply cord with safety plug |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 2 x 3-pin XLR (F) mounting version |
| DMX features: | DMX fail mode (hold, blackout, null)
DMX feed-through for up to 32 further DMX devices
RDM For bidirectional communication over the DMX line
RDM switchable to prevent problems when using fixtures without RDM |
| Use of brands: | Built with NEUTRIK connector |
| Dimensions: | Width: 13 cm
Depth: 10 cm
Height: 4,1 cm |
| Weight: | 650 g |
