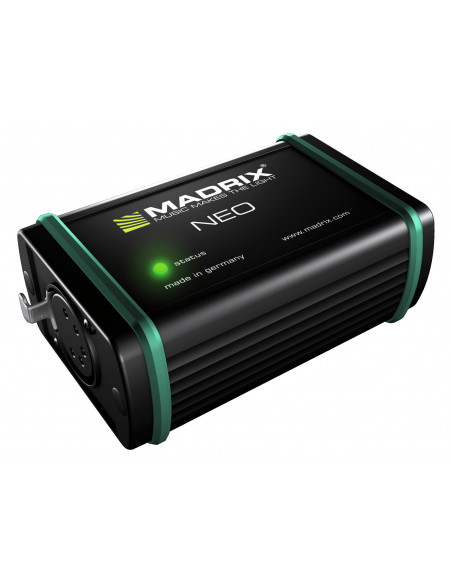

MADRIX NEO is an easy to use and effective DMX512 USB interface. This DMX512 interface includes already a MADRIX 3 software license for 512 DMX channels. You can use this interface to send or receive DMX512 using MADRIX. MADRIX NEO comes in a robust enclosure made of light metal - ideal for the use on stages.
MADRIX USB/DMX interface to issue a DMX universe over XLR
- MADRIX NEO is a reliable, easy-to-use, and high-quality DMX512 USB hardware interface including MADRIX software for LED control and MADRIX 3 software license
- The interface can be used for DMX input or DMX output to connect DMX512 devices to your computer
- The MADRIX software license for 512 DMX channels per device is already included and automatically activated when connected to MADRIX
- MADRIX NEO can be easily connected to your computer using the USB port
- DMX512 devices are connected via a 5-pin, female NEUTRIK XLR plug
- If you want to use DMX-IN, please use a 5-pin XLR male to 5-pin XLR male gender changer
- Full USB 2.0 support, Power over USB, Hot Swapping, and Plug & Play
- Multiple devices can be used together without problems for larger projects
- Rugged metal housing with eye-catching design

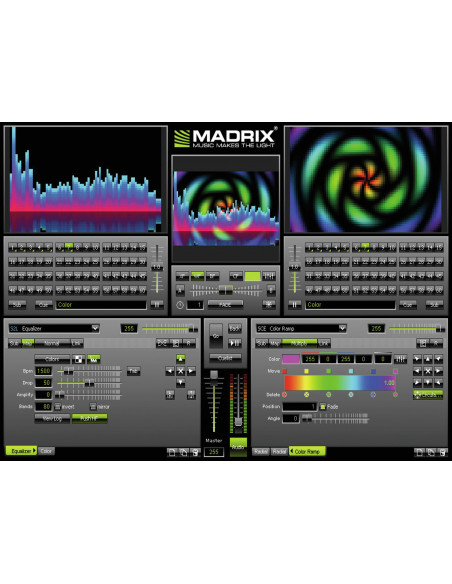

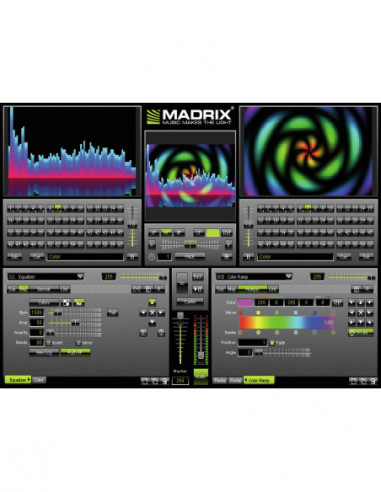

- MADRIX is a powerful, easy-to-use, and award-winning LED lighting control software
- Allows you to realize all kinds of different LED projects and lighting designs
- A normal PC/laptop can be used for professional LED control
- Allows mapping in 2D (pixel mapping) as well as real, spatial 3D (voxel mapping)
- The software generates unique effects, visuals, and animations live and in real time
- No additional content is required
- Already includes a multitude of stock effects that are fully customizable (in speed, color, shape, direction, size, movement, position, brightness, etc.)
- Analyzes incoming audio signals Sound2Light and Music2Light in real time
- New lighting scenes can easily be created in seconds
- Variety of options to combine visuals and graphical elements (layers, mix modes, filters, etc.)
- 256 x 256 Storage Places to organize and store effects
- DJ-like operation with 2 decks (Left/Right) and a crossfader
- 3 real-time previews to show your visual effects in advance (incl. 2D/3D, zoom, rotation)
- Controls up to 4 color channels per pixel/voxel (e.g. 1-channel, 2-channel, RGB, RGBW fixtures)
- Freely configurable Cue List for automated playback of a show (incl. time, date, duration, etc.)
- Supports Time Code from Art-Net, MIDI, SMPTE, and system time
- Remote control available via DMX-IN, Art-Net Remote, MIDI-IN, HTTP (internet browser), CITP
- Incl. Fixture Editor with large fixture library

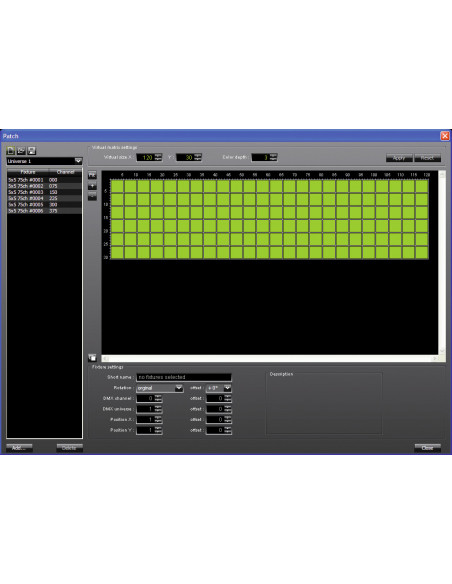

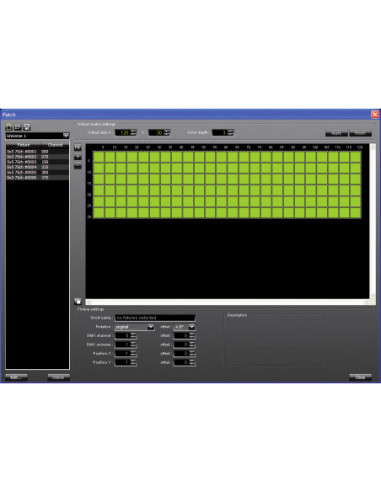

- Includes various other tools and features (DMX Fader Tool, DMX Watcher, Matrix Generator, Patch Editor, Touch Screen window, backup system, scripting, mapping, scaling, etc.)
- MADRIX minimum system requirements: 2.0 GHz dual-core CPU, OpenGL 2.0 graphics card (NVIDIA recommended), 2 GB RAM, 1 GB free harddisk space, 1280 x 768 screen resolution, network card, sound card, USB 2.0
- MADRIX supported operating systems: Microsoft Windows Vista 7 8 8.1 10 (compatible with 32 bit and 64 bit)
- Installation instructions and software available in English, Spanish, French, and Simplified Chinese
- User manual and quick start guide available in English
- Free software demo version and more information available at www.madrix.com

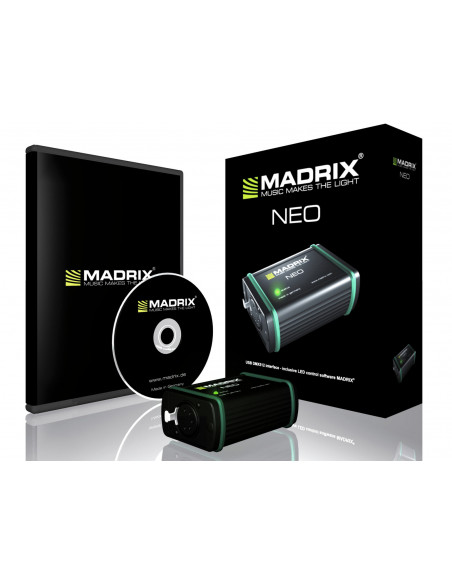

- Package Contents: 1x MADRIX NEO - DMX512 interface, 1x USB cable, 1x Quick Start Guide, 1x CD-ROM with MADRIX - Software and drivers
- Can receive and process up to 512 DMX channels
- Can transmit up to 512 DMX channels
- Controlling by DMX via USB built-in
- Built with NEUTRIK connector
- Made in Germany
Power supply: | 5 V DC 500 mA |
Power connection: | Mains input USB, type B power supply cord for USB A mains connection (provided) |
DMX channels: | Input 512 Output 512 |
DMX output: | 1 x 5-pin XLR (F) mounting version |
Control: | DMX via USB built-in |
USB port: | USB 2.0, Typ B |
Use of brands: | Built with NEUTRIK connector |
Dimensions: | Width: 7,8 cm Depth: 5,9 cm Height: 3,5 cm |
Weight: | 240 g |
