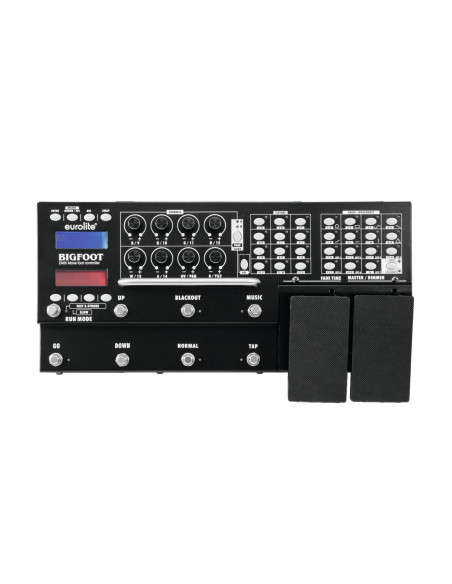

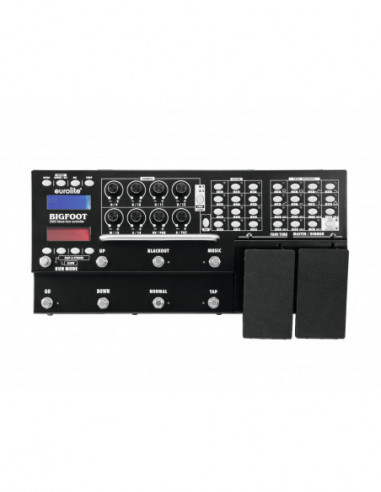

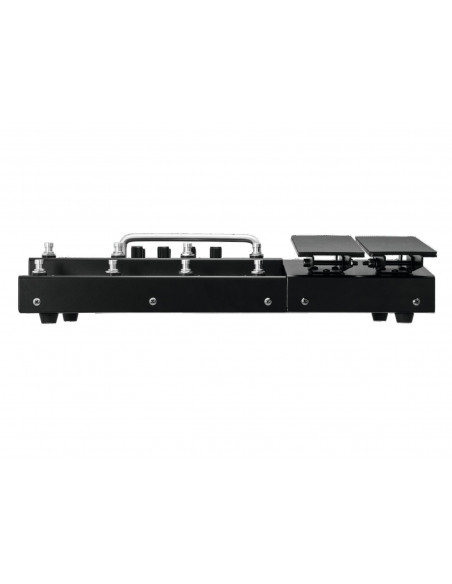

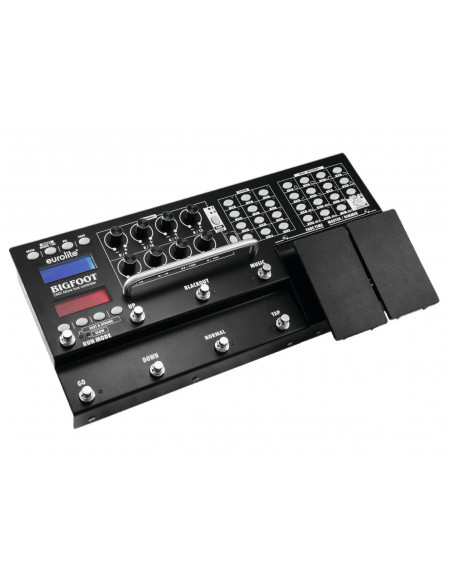

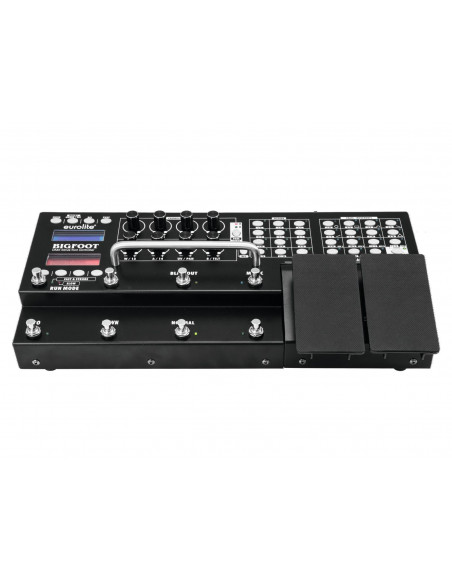

A full-fledged DMX light controller in a foot bar, with FX generator
- Fully programmable DMX foot controller for DMX light effect units such as moving heads, scanners and LED spot lights with RGBW color mixture
- 192 DMX channels can be assigned and inverted as desired to 16 control channels (softpatch)
- For 12 fixtures with max. 16 control channels each
- USB port for storing program data
- Quick programming thanks to the integrated FX generator with movement patterns and color effects
- Several effects can be used simultaneously
- 15 programmable chases with a total of 100 steps can be stored
- Programs can be freely named
- Simply preselect the desired program and trigger it with GO
- Sound control via audio signal or TAP button
- Convenient control of dimmer, fade time and other functions by foot
- 8 encoders on 2 levels for adjusting DMX values
- Blackout function
- 2 x backlit LCD (2 x 16 characters each)
- 3-pin XLR connector
- Firmware update via USB
- Rugged metal housing with handle
- Programmable 15 sequencens each with 100 scenes
- Can transmit up to 192 DMX channels
- Controlling by DMX; Sound to light via Microphone; Sound to light via RCA (F) mounting version
- Non-slip pedal housing
| Power supply: | 100-240 V AC, 50/60 Hz
9 V DC 800 mA |
| Power consumption: | 10 W |
| IP classification: | IP20 |
| Protection class: | Class III |
| Power connection: | Mains input Coaxial power connector (M) power supply cord with AC adapter (provided) |
| Programs: | Programmable
15 Sequences
Each with 100 Scenes |
| DMX channels: | Output 192 |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Control: | DMX; Sound to light via Microphone; Sound to light via RCA (F) mounting version |
| Housing color: | Black |
| Display type: | Monochrome LCD display |
| Available storage media: | USB devices (FAT 32) |
| USB port: | Typ A |
| Color: | Black |
| Housing design: | Non-slip pedal housing |
| Dimensions: | Width: 45 cm
Depth: 24 cm
Height: 10 cm |
| Weight: | 4,52 kg |
