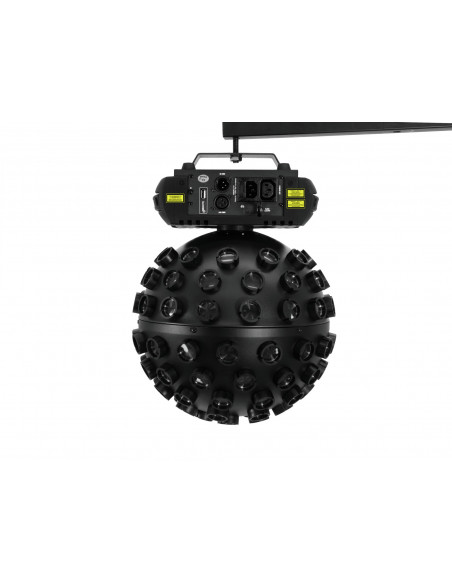

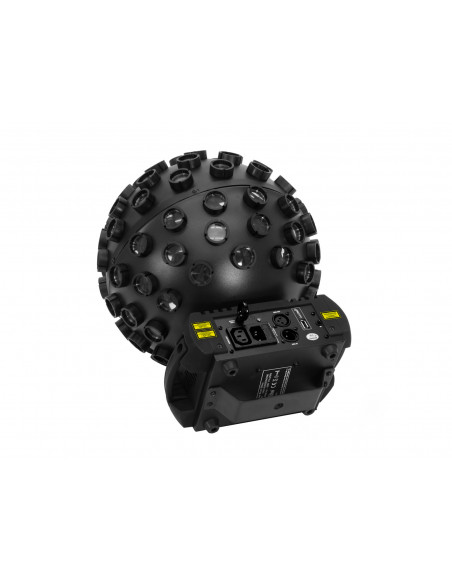

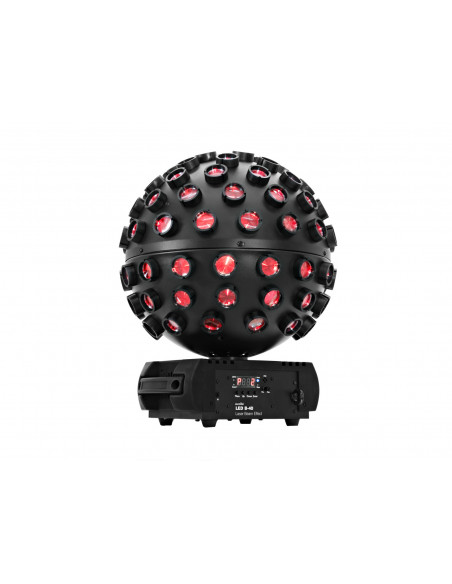

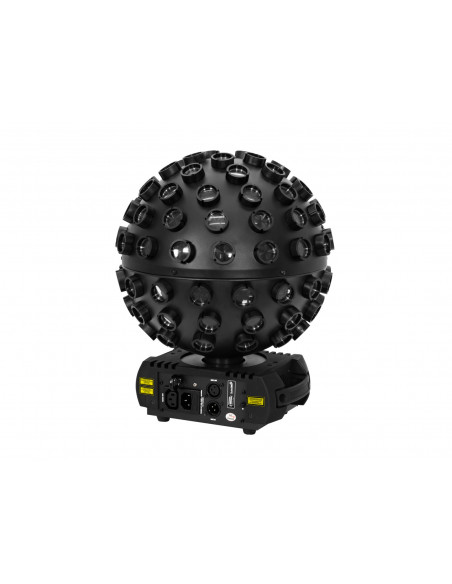

LED beam effect with RGBW color mixing and RG laser
- 5 high-power 8 W RGBW LEDs (4in1) for dynamic mirror ball effects
- 2 laser diodes project thousands of red and green laser beams
- Laser class 2M: does not require additional protective measures or appointment of a laser safety officer
- 7 built-in auto and music show programs
- Stepless color blend, dimmer and strobe effect
- Rotation speed variably adjustable
- LEDs are distributed in 3 groups which can be controlled individually via DMX
- Control panel with LED display for easy configuration
- Convenient wireless control via included IR remote control
- Supports QuickDMX - the wireless DMX system from Eurolite
- Built-in phantom-powered USB port for QuickDMX, CRMX and WDMX receivers (optional)
- Swivel mounting bracket
- Mains input and output for power linking up to 8 units
- LED: 5 x high-power 8 W 4in1 QCL RGBW
- Can be operated in 3; 10; 22 CH mode
- The device is cooled by cooling fan at the Base; cooling fan at the Head
- Controlling by stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Preprogrammed in Light´J; LED PC-Control 512; EASY SHOW
- Effect: Laser; multi beam effect
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 65 W |
| IP classification: | IP20 |
| Power connection: | Mains input IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Power output: | 1 x IEC connector (F) mounting version |
| Fuse: | 5 x 20 mm, T 1 A Fuse replaceable |
| Lamp type: | LED lamp |
| LED: | 5 x high-power 8 W 4in1 QCL RGBW |
| Flash rate: | 0 - 20 Hz |
| Laser class: | Class 2M |
| Laser color: | R/G |
| Laser module: | Green (G) 40 mW 532nm
Red (R) 100 mW 650nm |
| DMX channels: | 3; 10; 22 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan at the Base
Cooling fan at the Head |
| Control: | Stand-alone; DMX; Sound to light via Microphone; Master/slave function; Light´J; LED PC-Control 512; EASY SHOW; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Housing color: | Black |
| Display type: | Monochrome 4 digits 7-segment LED display |
| Dimensions: | Width: 31 cm
Depth: 31 cm
Height: 39 cm |
| Weight: | 4,20 kg |
| Noise classification: | Class 2 (slight noise) |
