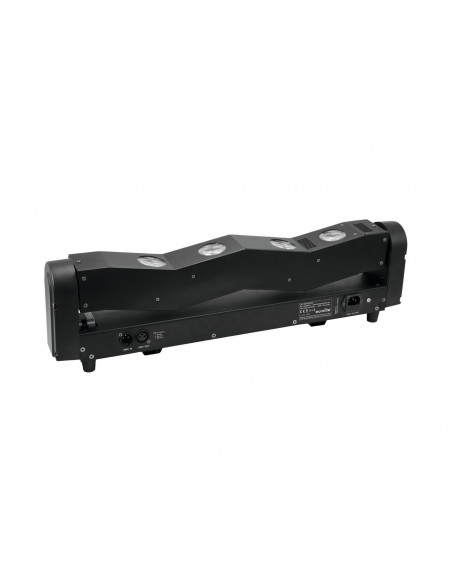

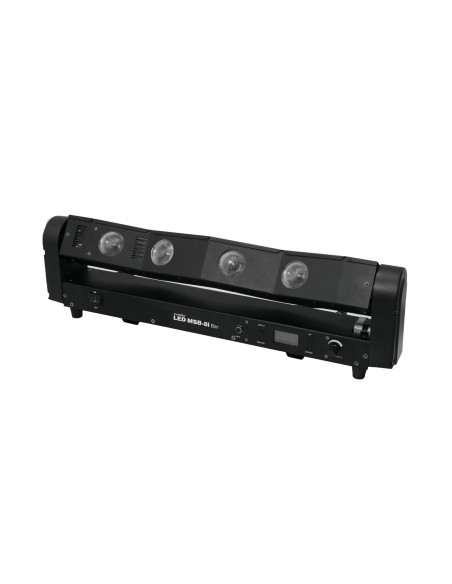

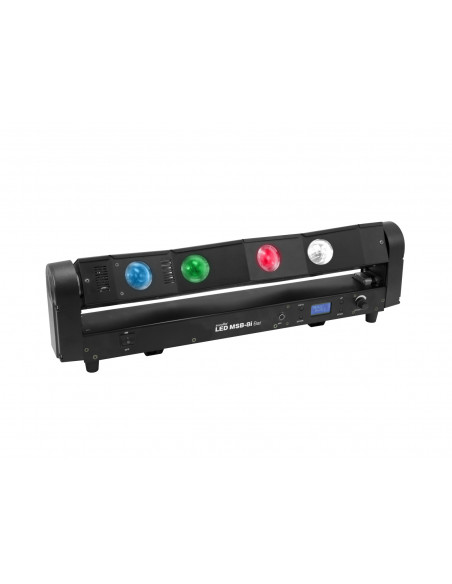

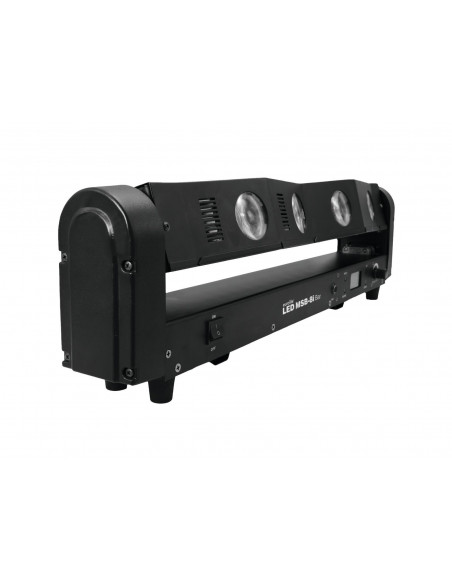

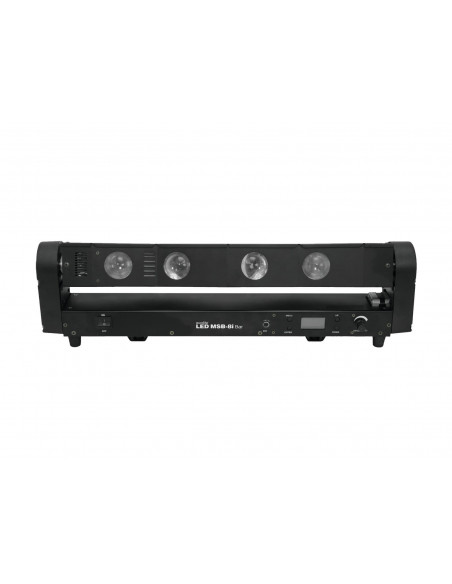

Moving Bar with narrow beams and 4 lenses on the front and backside
- Equipped with eight 8 W quadcolor LEDs with RGBW colors
- With Infinity function for unlimited TILT movement
- Positioning within 360° TILT
- Automatic position correction
- Exact positioning via 16-bit TILT movement resolution
- Each LED can be controlled individually
- Narrow beam angle
- Stepless color blend, color change, preset colors for each LED, dimmer and strobe effect
- Stand-alone, master/slave and DMX mode
- Control panel with LC display for easy configuration
- Mains input and output for power linking up to 8 units
- LED: 8 x high-power 8 W 4in1 QCL RGBW
- Can be operated in 45; 21; 12; 8 CH mode
- Controlling by DMX; stand-alone; Sound to light via Microphone
- Preprogrammed in Light´J; LED PC-Control 512
- Flicker-free projection
- Effect: Multi beam effect
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 80 W |
| IP classification: | IP20 |
| Power connection: | Mains input IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Lamp type: | LED lamp |
| LED: | 8 x high-power 8 W 4in1 QCL RGBW |
| Max. TILT movement: | Exact positioning (16 bit resolution) 360° plus infinity Auto position correction (feedback) |
| Flash rate: | 0 - 13 Hz |
| DMX channels: | 45; 21; 12; 8 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Control: | DMX; stand-alone; Sound to light via Microphone; Light´J; LED PC-Control 512 |
| Beam angle: | 1° |
| Beam angle (1/2 peak): | 1° |
| Housing color: | Black |
| Dimensions: | Length: 62,9 cm
Depth: 10,6 cm
Height: 18,1 cm |
| Weight: | 6,10 kg |
| Legal specifications |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
