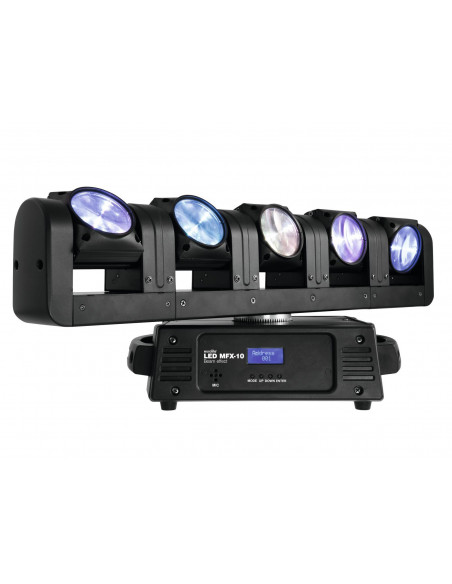

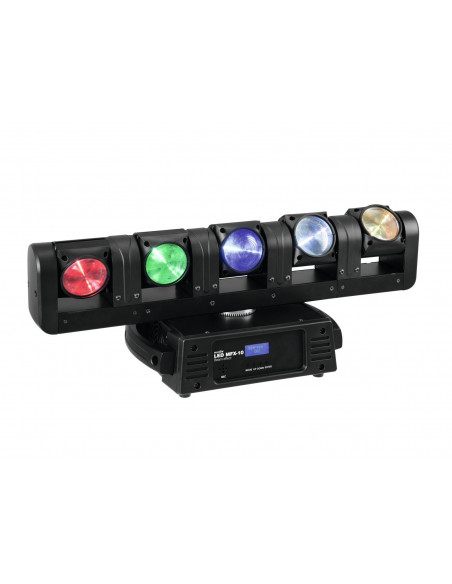

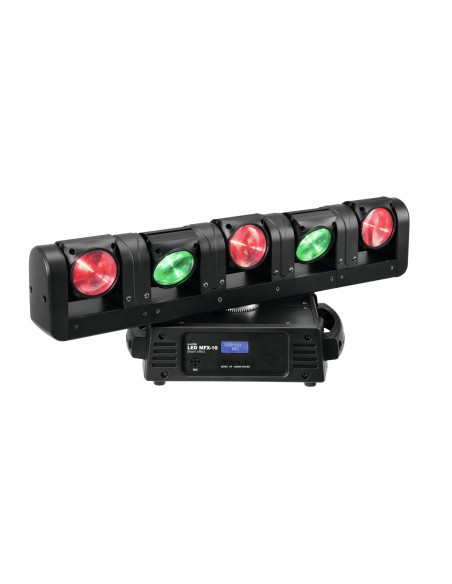

Effect bar with 5 heads, separately controllable (TILT) with RGBW colors
- Equipped with five 10 W quadcolor LEDs in the colors red, green, blue and white
- Each LED can be controlled individually
- Narrow beam angle
- TILT movement for each LED head separately and steplessly adjustable
- Positioning within 200° TILT
- With Infinity function for unlimited PAN and TILT movement
- Exact positioning via 16-bit PAN/TILT movement resolution
- Stepless color blend, color change, preset colors, dimmer and strobe effect
- Automatic position correction
- Stand-alone, master/slave and DMX mode
- Addressing and setting via control board with LCD
- Mains input and output for power linking up to 8 units
- LED: 5 x high-power 10 W 4in1 QCL RGBW
- Can be operated in 6; 19; 29; 32 CH mode
- Controlling by DMX; stand-alone; Sound to light via Microphone
- Preprogrammed in LED PC-Control 512
- Effect: Multi beam effect
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 80 W |
| IP classification: | IP20 |
| Power connection: | Mains input PowerCON (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | 1 x PowerCON (gray) |
| Lamp type: | LED lamp |
| LED: | 5 x high-power 10 W 4in1 QCL RGBW |
| Max. TILT movement: | Exact positioning (16 bit resolution) 200° plus infinity |
| Max. PAN movement: | Exact positioning (16 bit resolution) 360° plus infinity Auto position correction (feedback) |
| Flash rate: | 0 - 20 Hz |
| DMX channels: | 6; 19; 29; 32 |

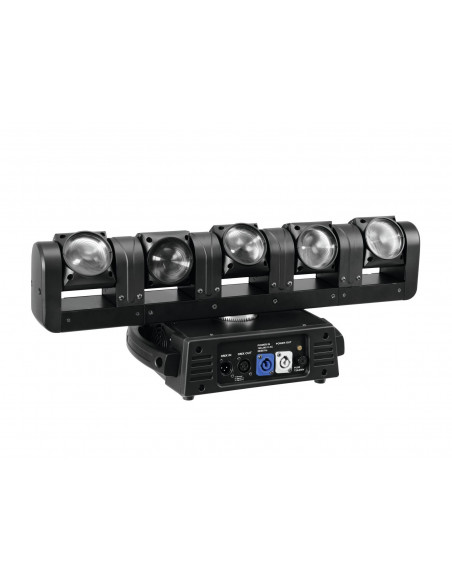

| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Control: | DMX; stand-alone; Sound to light via Microphone; LED PC-Control 512 |
| Beam angle: | 8° |
| Beam angle (1/2 peak): | 8° |
| Housing color: | Black |
| Dimensions: | Width: 61 cm
Depth: 21,5 cm
Height: 23,5 cm |
| Weight: | 8,10 kg |
| Legal specifications |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
