Lighting effect with RGBAW LED matrix, UV, RG laser (class 2M) and stroboscope
- Matrix effect with a total of 192 LEDs creates alternating RGBAW patterns
- 2 x UV LED (3 W) for blacklight effects
- 36 cold white 0.5 W SMD LEDs for fast, dynamic strobe effects
- 4 laser diodes project thousands of red and green laser beams
- Laser class 2M: does not require additional protective measures or appointment of a laser safety officer
- Matrix, blacklight, laser and strobe can be controlled individually
- 14 built-in auto and music show programs
- Control panel with LED display for easy configuration

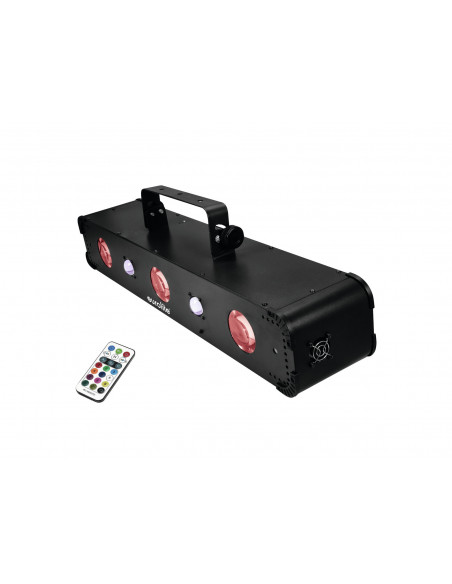

- Convenient wireless control via included IR remote control
- Swivel mounting bracket
- Mains input and output for power linking up to 8 units
- LED: Strobe effect 36 x SMD 0,5 W cold white (CW)
- LED: UV effect 2 x high-power 3 W ultra violet (UV)
- LED: Matrix effect 192 x 5 mm R/G/B/W/A
- Can be operated in 2; 5; 10 CH mode
- The device is cooled by cooling fan
- Controlling by stand-alone; DMX; Sound to light via Microphone; Master/slave function
- Preprogrammed in LED PC-Control 512
- Effect: Multi beam effect; flower effect; Strobe effect; UV effect; laser
- For application areas such as: Wedding/gala
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
35 W |
| IP classification: |
IP20 |
| Protection class: |
Class I |

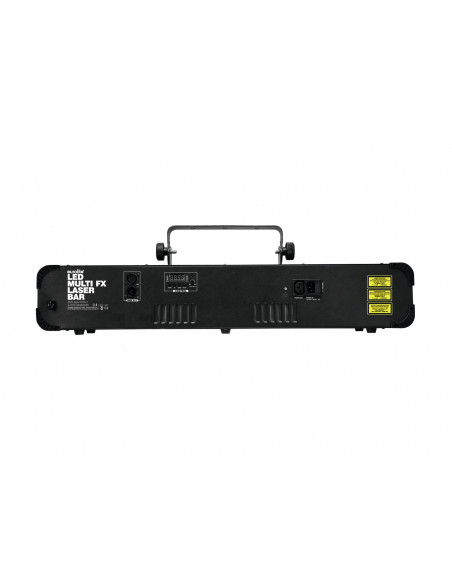

| Power connection: |
Mains input IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Power output: |
1 x IEC connector (F) mounting version |
| Fuse: |
5 x 20 mm, T 1 A Fuse replaceable |
| Lamp type: |
LED lamp |
| LED: |
Strobe effect 36 x SMD 0,5 W cold white (CW)
UV effect 2 x high-power 3 W ultra violet (UV)
Matrix effect 192 x 5 mm R/G/B/W/A |
| Laser class: |
Class 2M |
| Laser color: |
R/G |
| Laser module: |
Green (G) 30 mW 532nm
Red (R) 100 mW 650nm |
| DMX channels: |
2; 5; 10 |
| DMX input: |
1 x 3-pin XLR (M) mounting version |
| DMX output: |
1 x 3-pin XLR (F) mounting version |
| Cooling: |
Cooling fan |
| Control: |
Stand-alone; DMX; Sound to light via Microphone; Master/slave function; LED PC-Control 512 |
| Housing color: |
Black |
| Display type: |
Monochrome 4 digits 7-segment LED display |
| Dimensions: |
Length: 76 cm
Depth: 18 cm
Height: 24,5 cm |
| Weight: |
5,60 kg |
| Noise classification: |
Class 3 (clearly perceptible sounds) |
| Remote control |
| Battery: |
1 x Button cell 3.0 V CR2025 lithium manganese built-in |
