6-zone audio amplifier with matrix assignment, 2 x 50 W / 4 ohms per zone
- 6-zone stereo amplifier for multi-zone PA applications
- Updated version with touch pad wall controller
- 12 x 50 W/4 ohms per zone
- Bridge mode with 100 W/8 ohms individually selectable per zone
- Efficient Class D technology
- 6 stereo inputs expandable to 18 stereo zones with further units
- Matrix input assignment: input sources are freely assignable to each channel
- 6 pre-amp outputs to connect external power amplifiers
- Convenient control via touch pad wall controller or IR remote control

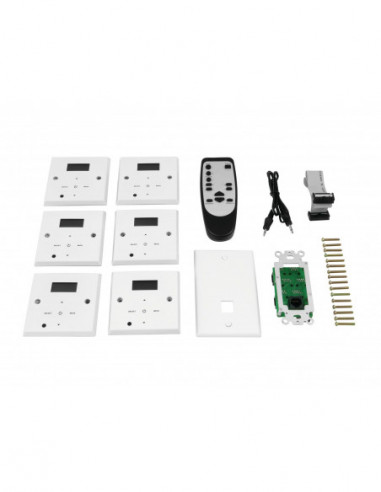

- Incl. 6 wall controllers with touch-sensitive surface (touch pad), LCD with blue backlight and IR receiver
- Wall controller allows selecting the audio source and volume, treble, bass adjustment for each zone individually
- Incl. wall hub for up to 6 wall controllers
- Incl. IR remote control
- Signal inputs: 4 x stereo RCA, 2 x 3.5 mm jack and 1 x Toslink for digital audio signals
- Speaker connection via terminal blocks

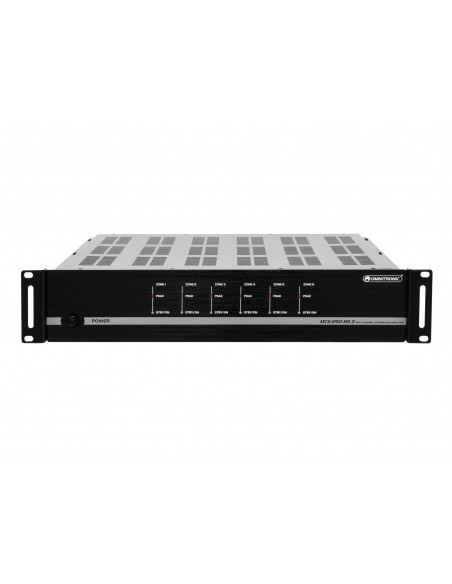

- 6 zone status indicators on the front panel
- Automatic gain control selectable for level matching of signal sources
- Terminals for IR emitters (accessory) allow extending the IR signals from the remote controls of the signal sources
- RS232 port enables two-way communication with a home automation system
- Trigger input for muting
- 6 trigger outputs for switching external amplifiers
- Controlling by IR remote control; RS 232
- The device can be connected via RJ-45 (F) mounting version to the PC; The device can be connected via RS 232 to the PC
- (19") 48.3 cm rack installation 2 U
| Power supply: |
115/230 V AC, 50/60 Hz |
| Power consumption: |
1250 W |
| Output power: |
12 x 25 W RMS (8 ohms)
12 x 50 W RMS (4 ohms)
6 x 100 W RMS bridged (8 ohms) |
| Power connection: |
Mains input IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Frequency range: |
20 - 20000 Hz |
| S/N ratio: |
>85 dB |
| THD: |
<0,1 % at 1 kHz |
| Impedance: |
Input 47 kOhm |
| Control: |
IR remote control; RS 232 |
| Circuitry: |
Class D |
| Control elements: |
Mode switch (stereo/bridged), power switch |
| Controls: |
Short-circuit; overheat; overload |
| Status LED: |
Standby, power, peak |

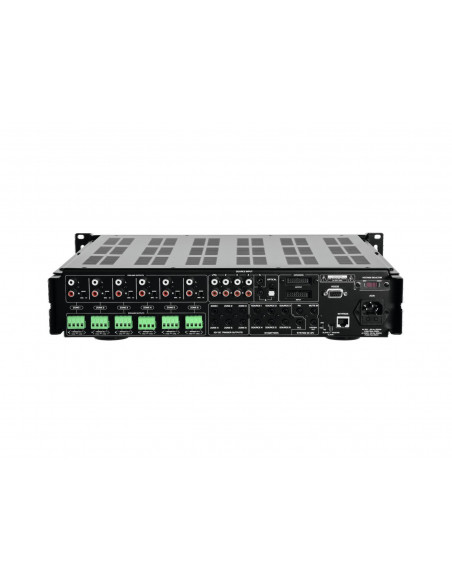

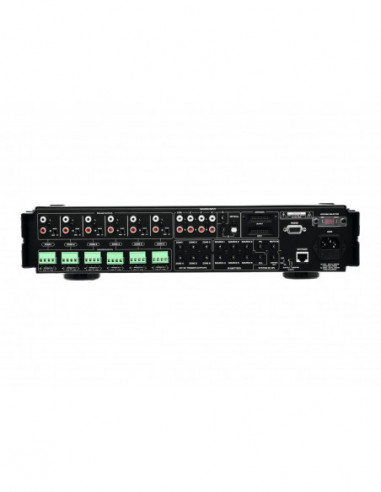

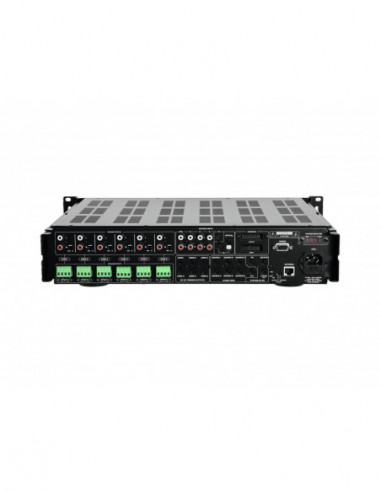

| Connections: |
Input: line via 4 x stereo RCA
Input: line via 2 x 3.5 mm jack (stereo) mounting version
Input: line via 1 x toslink
Input: Keypad via 1 x RJ-45 (F) mounting version
Input: IR-Extension/receiver via 7 x 3.5 mm jack (mono) mounting version
Input: Muting via 1 x 3.5 mm jack (mono) mounting version
Output: Trigger via 6 x 3.5 mm jack (mono) mounting version
Output: speakers via 6 x screw terminal
Home automation via 1 x DB-9 (F) mounting version |
| Input sensitivity: |
250 mV |
| PC connect: |
Via RJ-45 (F) mounting version
Via RS 232 |
| Housing design: |
(19") 48.3 cm rack installation 2 U |
| Dimensions: |
Width: 48,3 cm
Depth: 42 cm
Height: 8,9 cm |
| Weight: |
12,70 kg |
| Remote control |
| Battery: |
2 x 1.5 V AAA Micro R03 zinc carbon (provided) |
