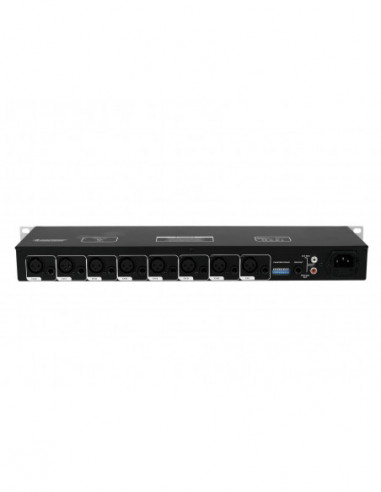

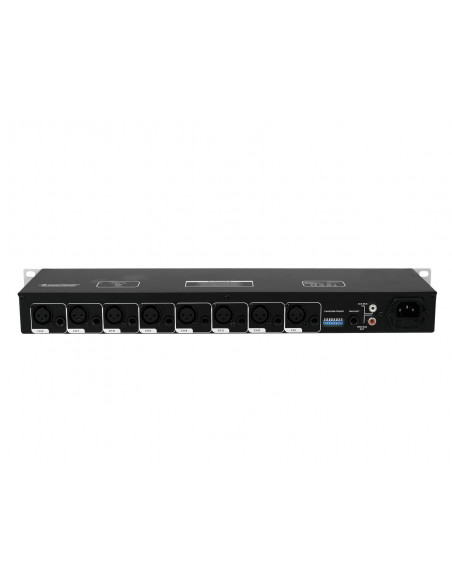

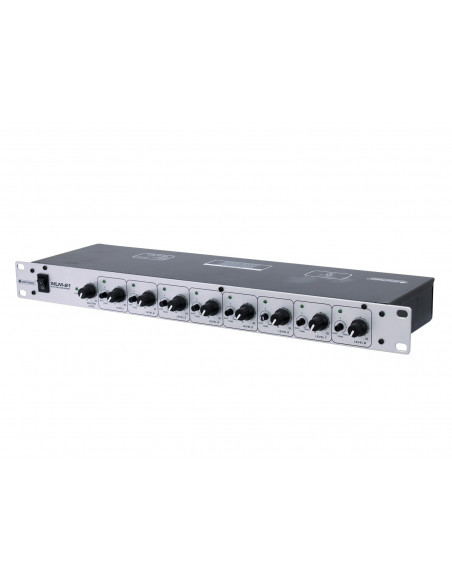

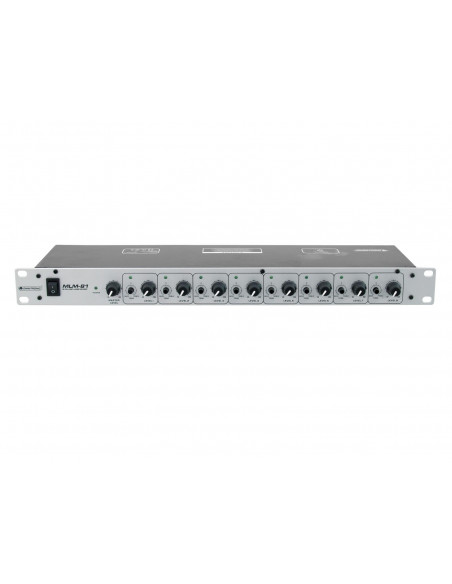

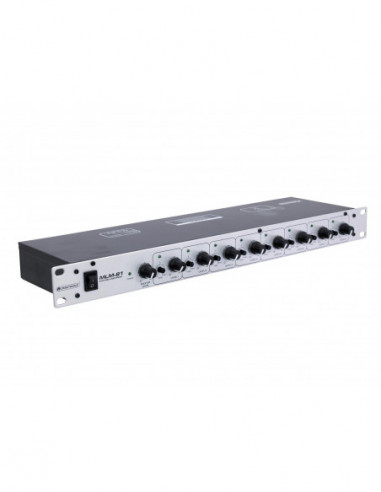

OMNITRONIC MLM-81 mixes up to 8 mono input signals to one output. Via individual level and tone controls, the different sources can be controlled and perfectly dovetailed. The MLM-81 is not only suited for panel discussions or symposiums but for press conferences as well and - due to its compact design - occupies almost no space.
Microphone line mixer, 8 channels
- For mixing up to 8 mono input signals to 1 mono output
- 8 mic/line channels with separate level and tone controls and signal LEDs
- Each channel with balanced XLR mic input and unbalanced 6.3 mm jack (1/4") input
- Each mic input with optional 12 V phantom power via DIP switches
- Master level control; master out via balanced 6.3 mm jack (1/4")
- Feed-through output (independent of master control) for connecting a further MLM-81
- Each 6.3 mm line input can be separately converted to a line output via internal jumpers
- (19") 48.3 cm rack installation 1 U
| Power supply: |
230 V AC, 50 Hz |
| Power consumption: |
10,00 W |
| Protection class: |
Class I |
| Power connection: |
Mains input IEC connector (M) mounting version power supply cord with safety plug (provided) |
| S/N ratio: |
>106 dB |
| THD: |
<0,003 % at 1 kHz |
| Phantom power: |
12 V DC |
| Impedance: |
Input Microphone: 600 Ohm
Input line: 18 kOhm
Input AUX: 10 kOhm
Output 51 Ohm |
| Gain: |
Input: Microphone 69 dB
Input: line 26 dB |
| Housing color: |
Silver |
| Status LED: |
Power, signal |
| Connections: |
Input: Microphone via 8 x 3-pin XLR
Input: line via 8 x 6.3 mm jack socket (mono) mounting version
Input: AUX via 1 x RCA (F) mounting version
Output: line via 1 x 6.3 mm jack socket (mono) mounting version
Output: AUX via 1 x RCA (F) mounting version |
| Channels: |
Input chanel: 8 x mono via XLR or jack, channel control via Rotary dial, Tone control EQ
Master output: 1 x mono via Plug 6,3mm/3,5mm (Jack), channel control via Rotary dial |
| Max. level: |
Input: Microphone -23 dBV
Input: line +22 dBV
Output: +17 dBV |
| Housing design: |
(19") 48.3 cm rack installation 1 U |
| Dimensions: |
Width: 48,3 cm
Depth: 15,2 cm
Height: 4,45 cm |
| Weight: |
2,30 kg |
